Toyota Land Cruiser Prado
2009-08 → 2017-08 · chassis GDJ15#,GRJ15#,TRJ150 · catalogue 781160 · Japan
Supported model
Data version 2018-02

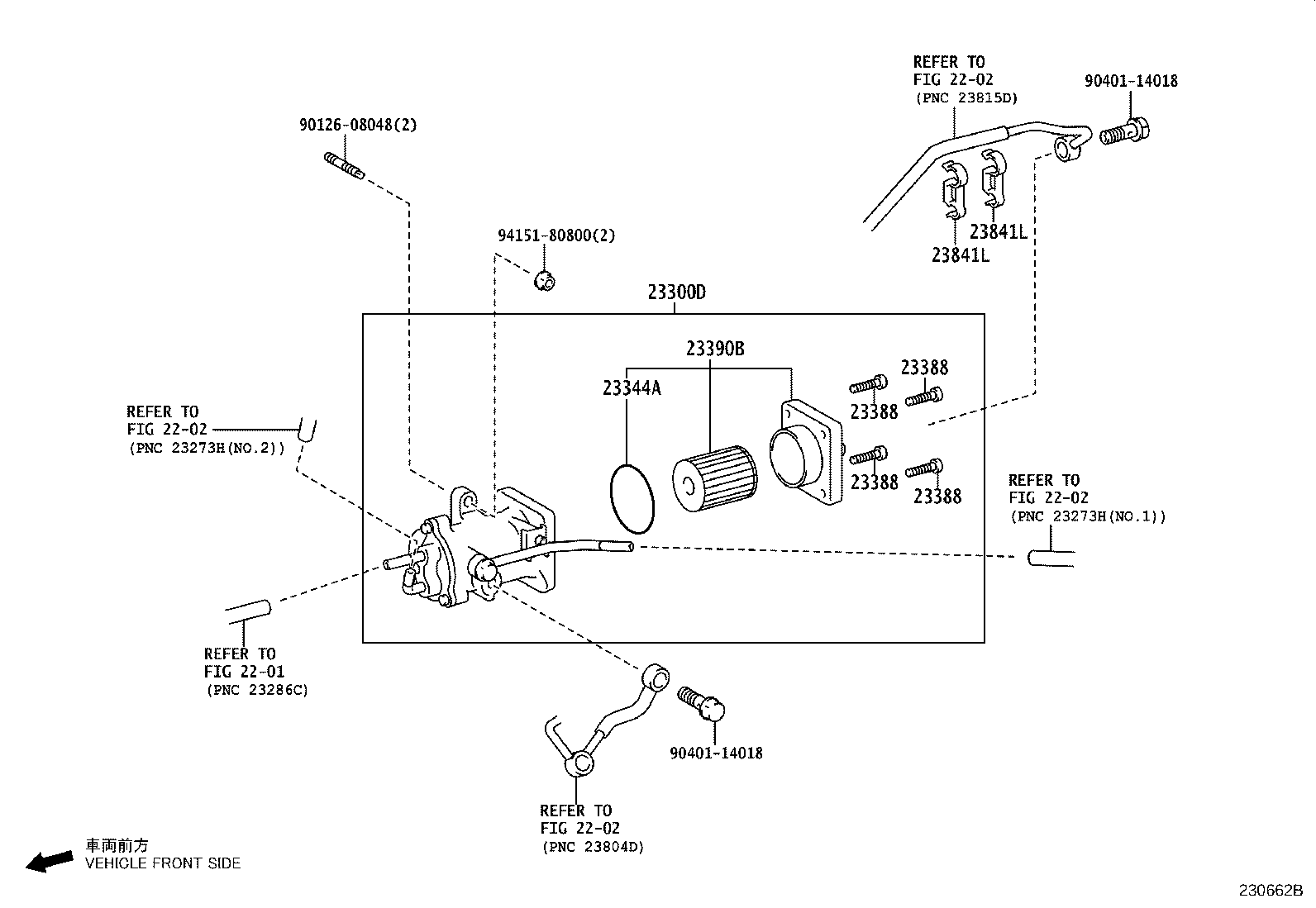

Fuel Filter
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23300 | Filter Assy, Fuel |
| 23300D | Filter Assy, Fuel(FOR DIESEL) |
| 23322A | Ring, O(FOR DRAIN PLUG) |
| 23328 | Gasket(FOR FUEL FILTER) |
| 23338 | Gasket(FOR WARNING SWITCH) |
| 23344A | Gasket, Fuel Filter Element |
| 23370 | Cock Assy, Fuel Filter Drain |
| 23380 | Cap Assy, Fuel Filter |
| 23388 | Plug, Fuel Filter Drain |
| 23390 | Element Assy, Fuel Filter |
| 23390B | Element Assy, Fuel Filter, NO.2 |
| 23841L | Clamp, Fuel Pipe |
| 23921 | Support, Fuel Filter |
| 23931A | Cover, Fuel Filter |
| 84461B | Switch, Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
