Toyota Land Cruiser Prado
2009-08 → 2017-08 · chassis GDJ15#,GRJ15#,TRJ150 · catalogue 781160 · Japan
Supported model
Data version 2018-02

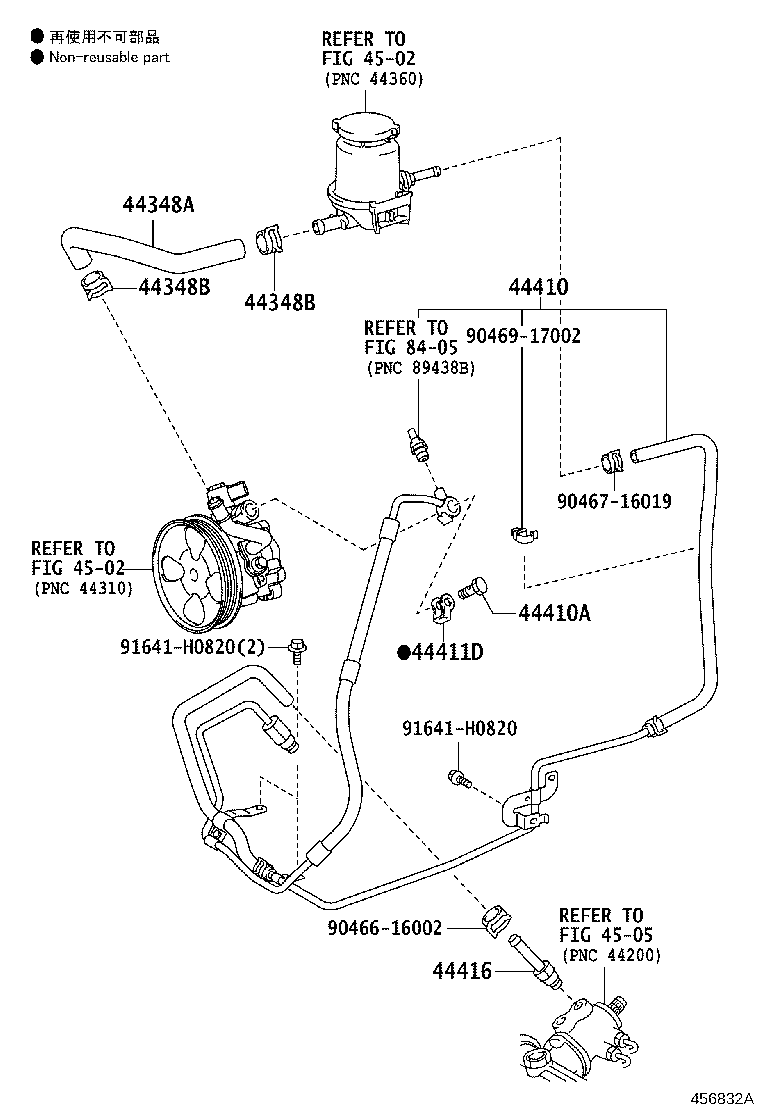

Power Steering Tube
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44348B | Clamp(FOR OIL RESERVOIR TO PUMP HOSE) |
| 44406 | Tube Sub-assy, Return |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44411D | Gasket(FOR PRESSURE FEED HOSE) |
| 44413 | Tube, Pressure Feed, NO.1 |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44420 | Cooler Assy, Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
