Toyota Land Cruiser Prado
2009-08 → 2017-08 · chassis GDJ15#,GRJ15#,TRJ150 · catalogue 781160 · Japan
Supported model
Data version 2018-02

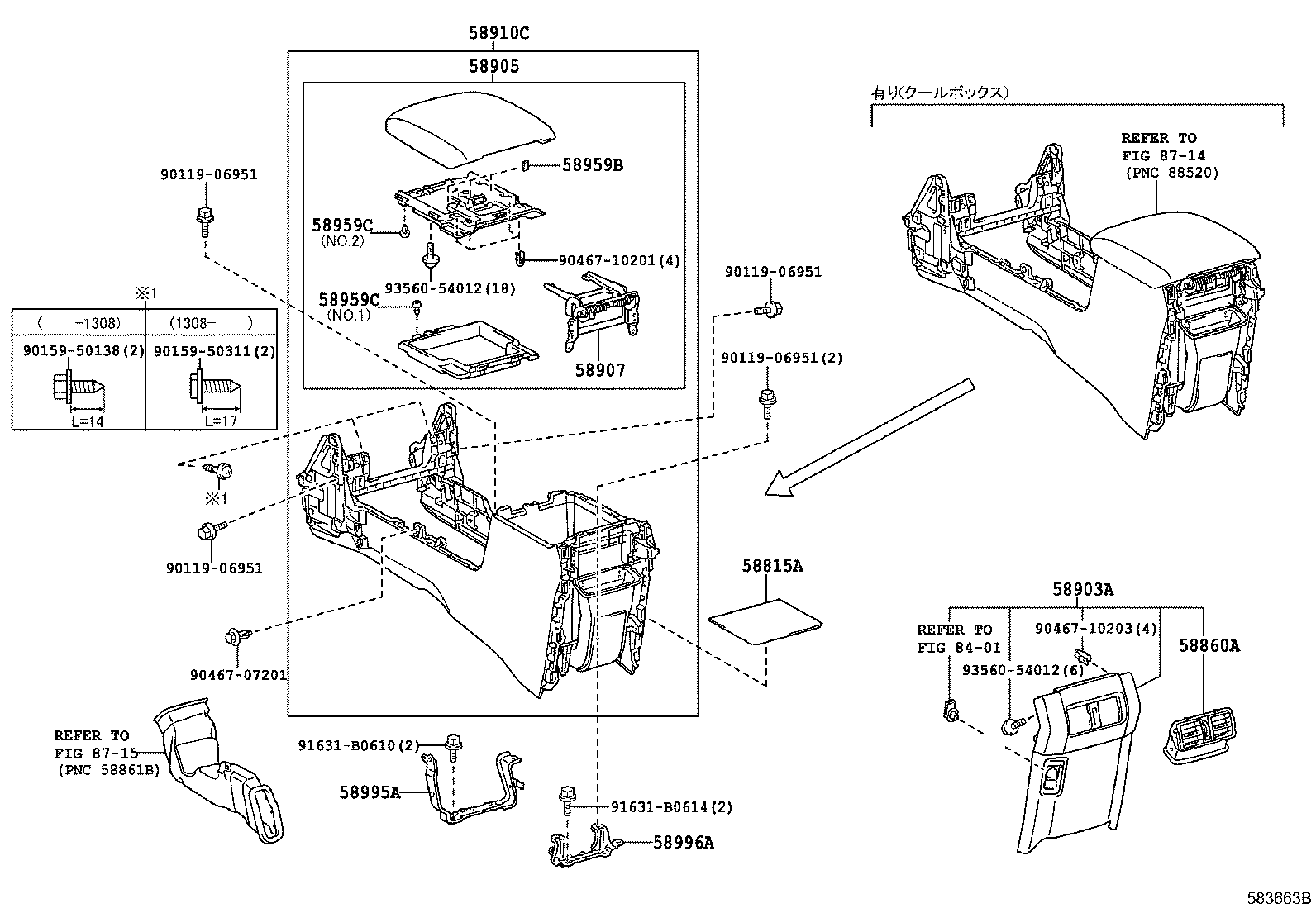

Console Box & Bracket
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539A | Cover, Spare Switch Hole |
| 55539J | Cover, Spare Switch Hole |
| 55618A | Holder, Console Box Cup |
| 55620E | Holder Assy, Instrument Panel Cup |
| 55633A | Support, Instrument Panel Cup Holder, NO.1 |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58809B | Cover Sub-assy, Parking Brake Hole |
| 58810J | Box Assy, Console |
| 58815A | Carpet, Console Box |
| 58816B | Insert, Console Box |
| 58817A | Insert, Console Box, Front NO.2 |
| 58821C | Panel, Console, Upper |
| 58831A | Garnish, Console Upper Panel, Front |
| 58833B | Garnish, Console Upper Panel, NO.1 |
| 58844 | Bezel, Console Box |
| 58860A | Register Assy, Console Box |
| 58903A | Panel Sub-assy, Console Rear End |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58916G | Mat, Box Bottom, NO.2 |
| 58959B | Cushion, Console Compartment Door |
| 58959C | Cushion, Console Compartment Door |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
