Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ15#,TRJ150 · catalogue 781160 · Japan

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

12 part groups · 2 illustrations

Illustrations

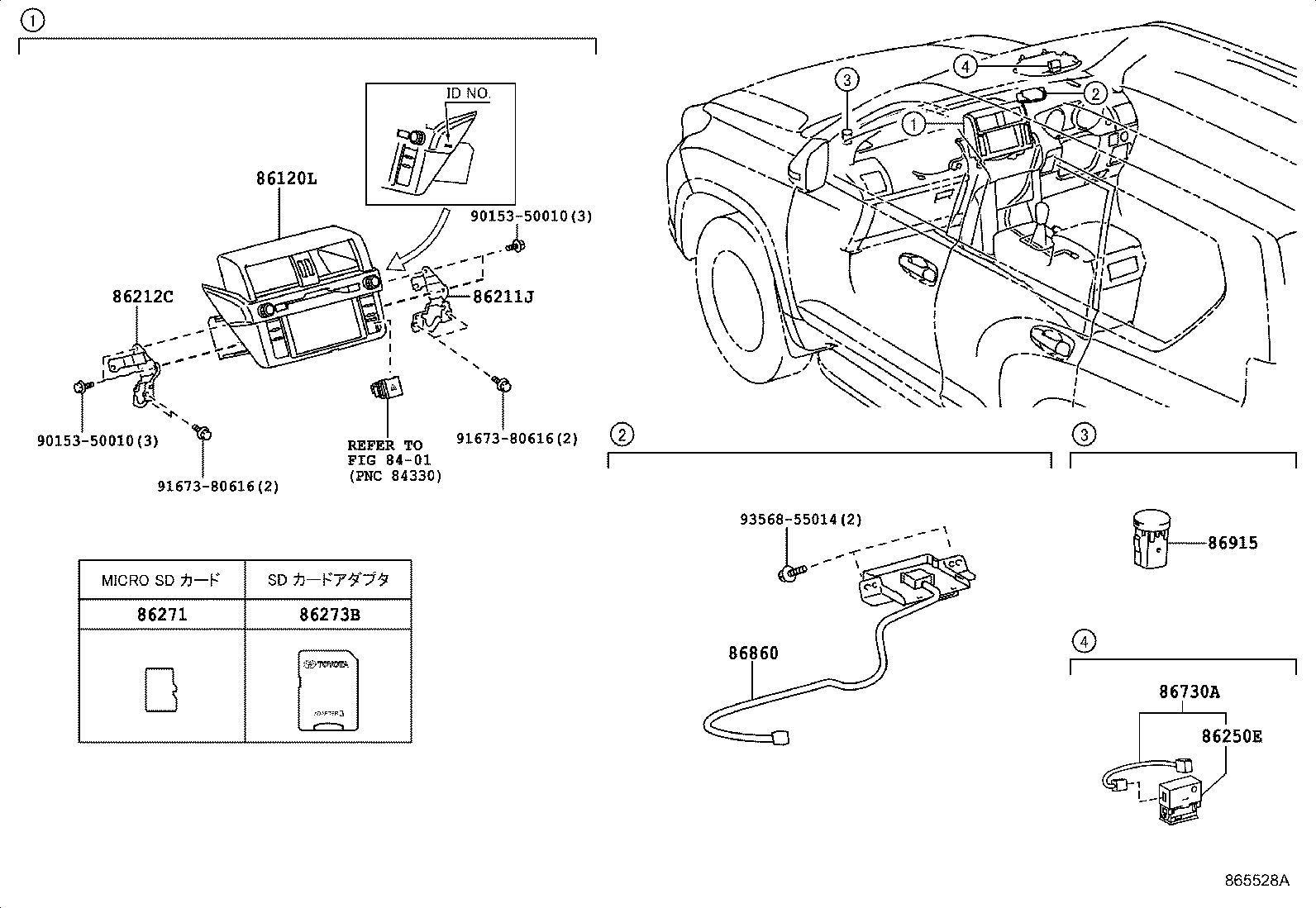

Figure 863973F 863973F 2009-08 → 2013-08 Figure 865528A 865528A 2013-08 → —

Part groups

PNCDescription
86120L Receiver Assy, Navigation
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86273B Adapter, Disc Player
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86431 Display, Display & Navigation Module
86730A Microphone Assy, Telephone
86860 Antenna Assy, Navigation
86915 Transceiver, Optical Beacon
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
