Toyota Land Cruiser Prado
2009-08 → 2017-08 · chassis GDJ15#,GRJ15#,TRJ150 · catalogue 781160 · Japan
Supported model
Data version 2018-02
Telephone & Mayday
7 part groups · 2 illustrations
Part groups

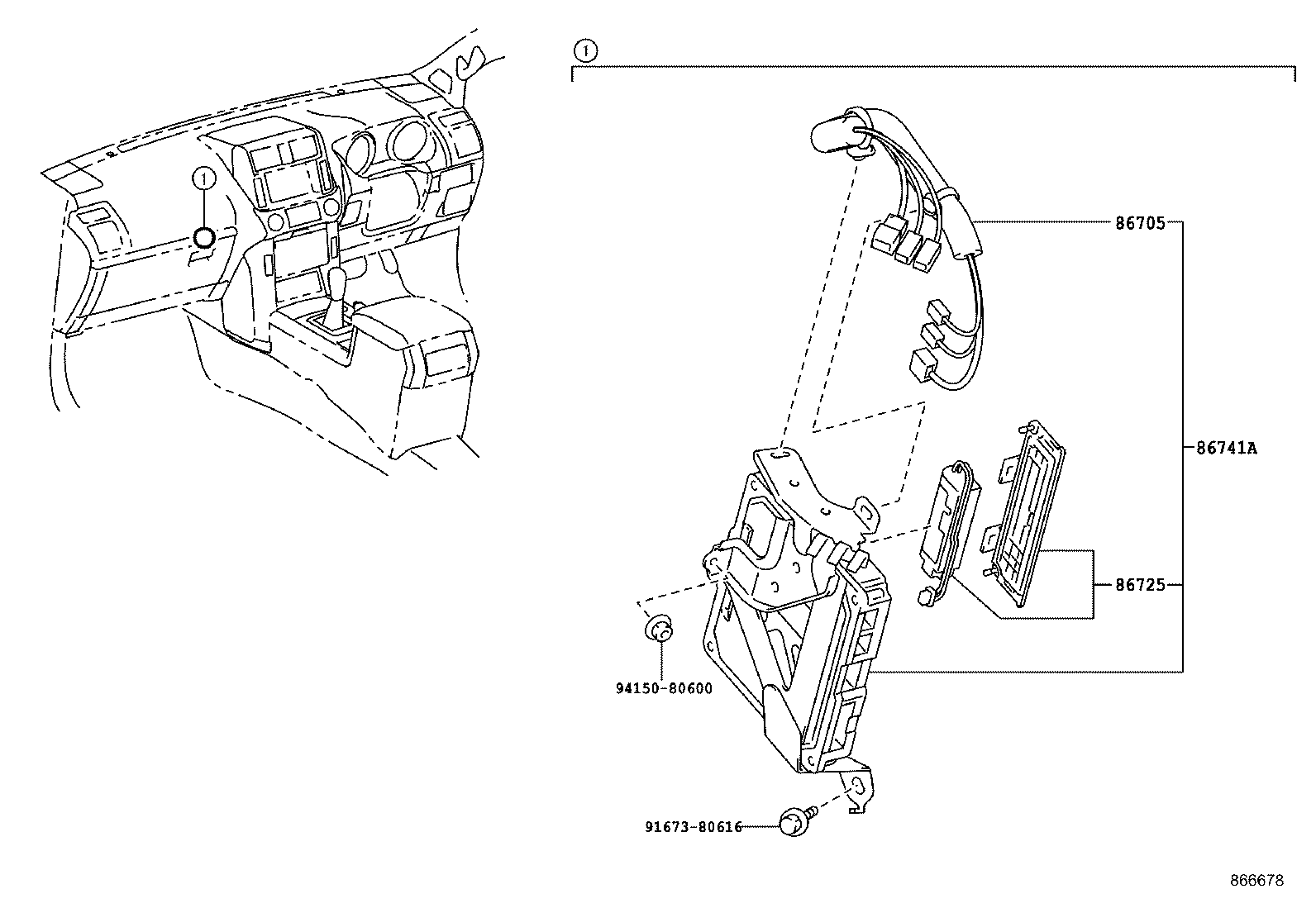

| PNC | Description |
|---|---|
| 86705 | Cord Sub-assy, Telephone Antenna |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86719C | Bracket, Telephone NO.3 |
| 86725 | Battery, Mobilephone |
| 86741A | Transceiver, Telematics |
| 86777 | Battery, Mayday |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
