Heating & Air Conditioning - Water Piping

9 part groups · 4 illustrations

Illustrations

Figure 87B018B

87B018B 2009-08 → —

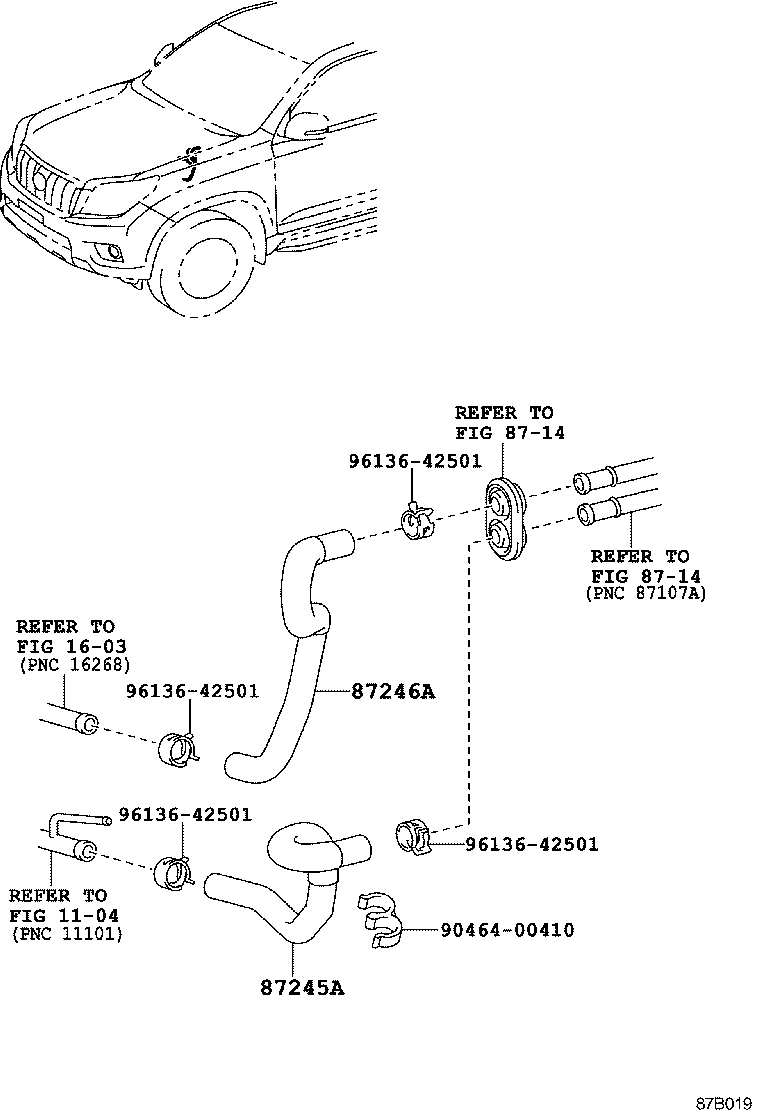

Figure 87B019

87B019 2009-08 → —

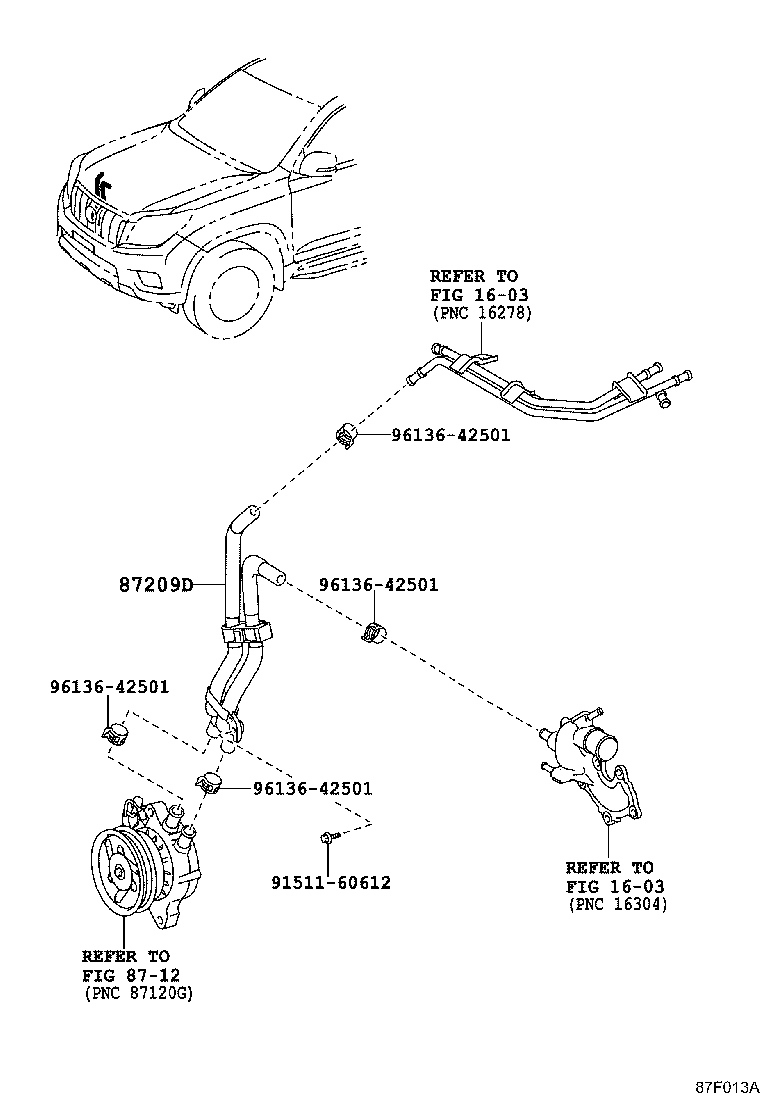

Figure 87F087A

87F087A 2015-06 → —

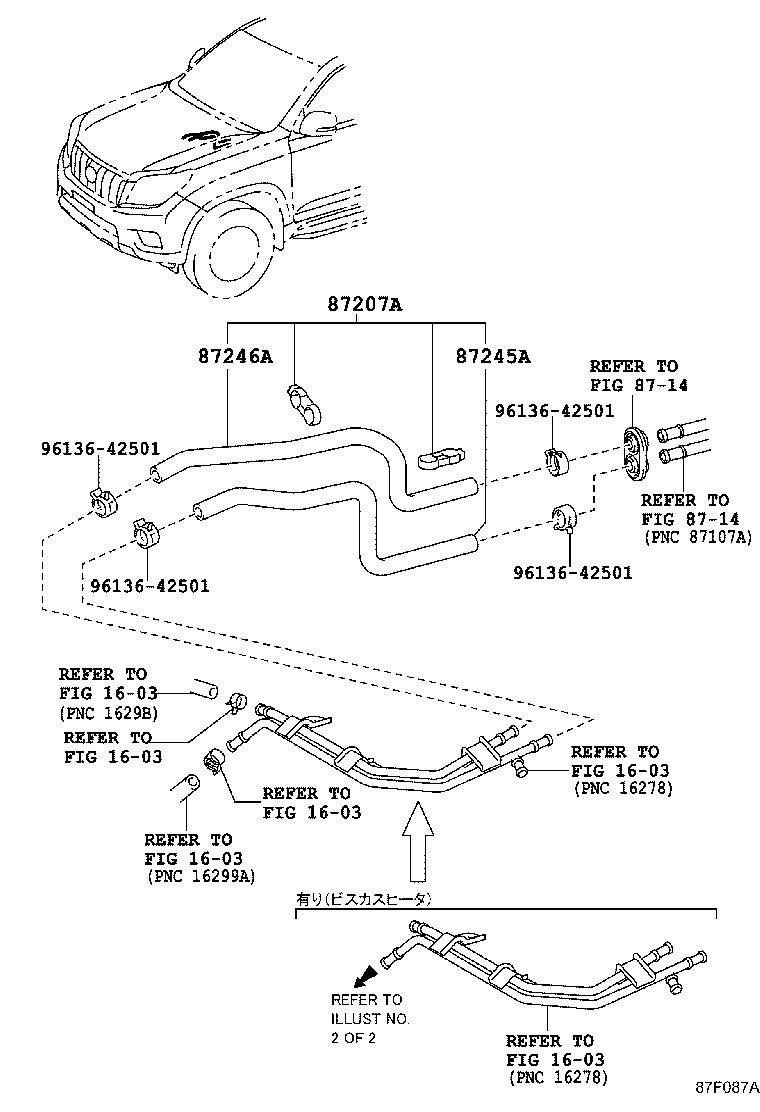

Figure 87F013A

87F013A 2015-06 → —

Part groups

PNC	Description
87121F	Bracket, Heater
87207A	Pipe & Hose Sub-assy, Water A
87209	Hose Sub-assy, Water
87209D	Hose Sub-assy, Water, D
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87251D	Joint, Water, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
