Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11
Standard Tool

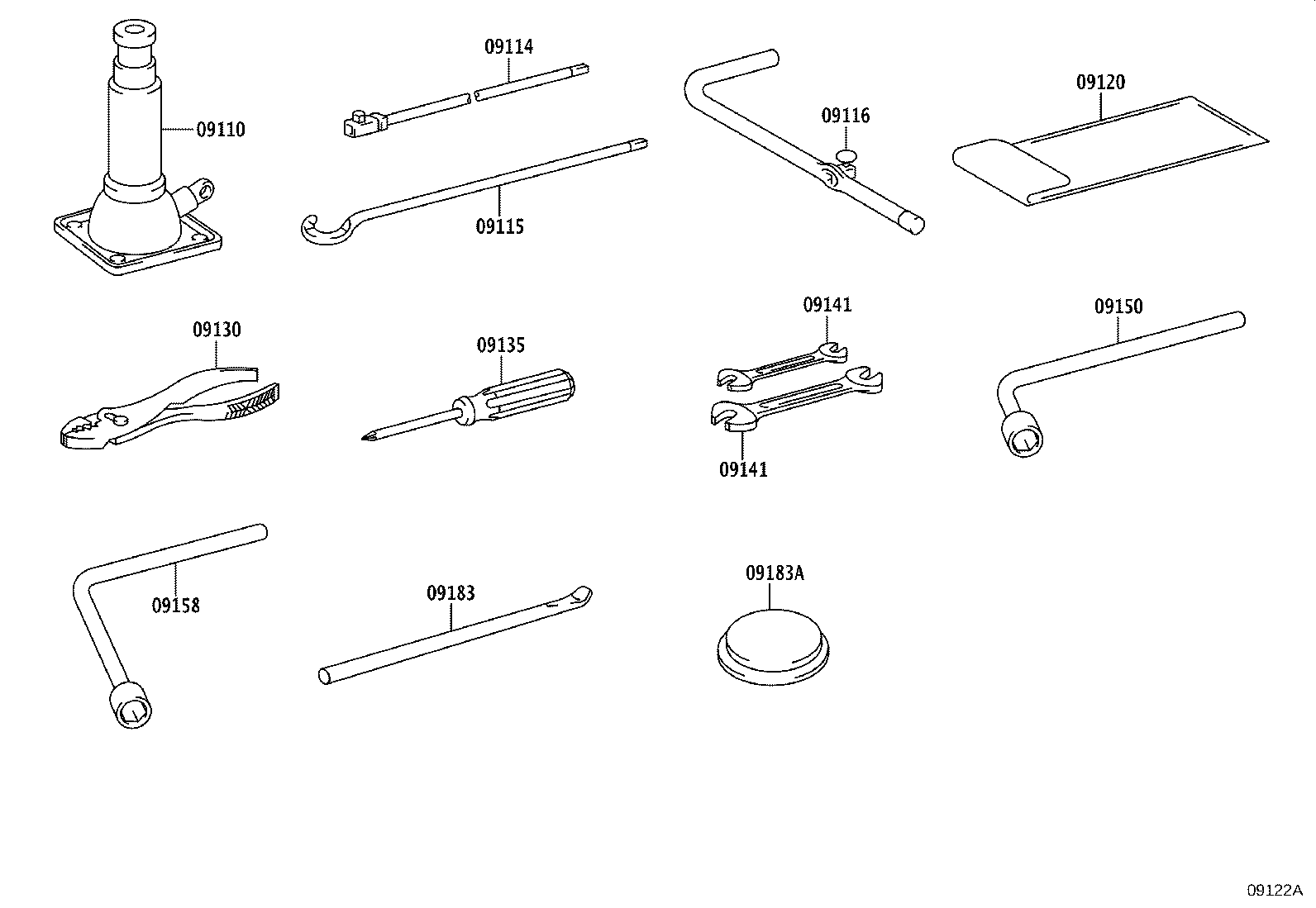

12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 09110 | Jack Assy |
| 09114 | Extension Sub-assy, Jack Handle |
| 09115 | Rod Sub-assy, Jack Handle |
| 09116 | Lever, Jack Handle |
| 09120 | Bag, Tool |
| 09130 | Pliers |
| 09135 | Driver, Screw |
| 09141 | Spanner |
| 09150 | Wrench, Hub Nut Box |
| 09158 | Wrench, Door Frame |
| 09183 | Wrench, Wheel Cap |
| 09183A | Replacer, Wheel Cap |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
