Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 2 illustrations

Illustrations

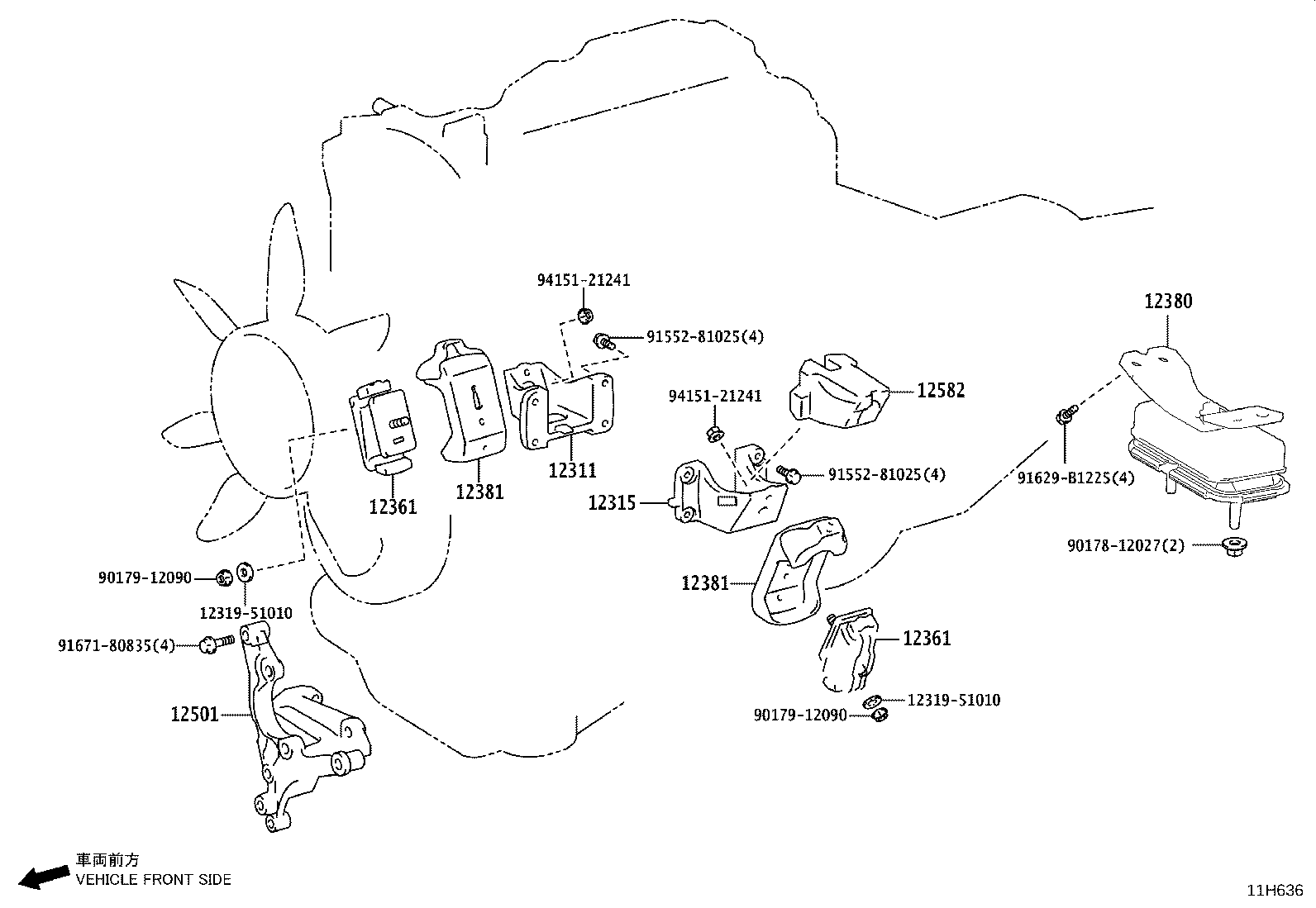

Figure 119479B 119479B 2014-08 → 2015-07 Figure 11H636 11H636 2023-11 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12380 Insulator Assy, Engine Mounting, Rear
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12395 Insulator, Engine Mounting Bracket Heat
12501 Bracket Sub-assy, Alternator
12582 Insulator, Cylinder Block, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
