Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

7 part groups · 2 illustrations

Illustrations

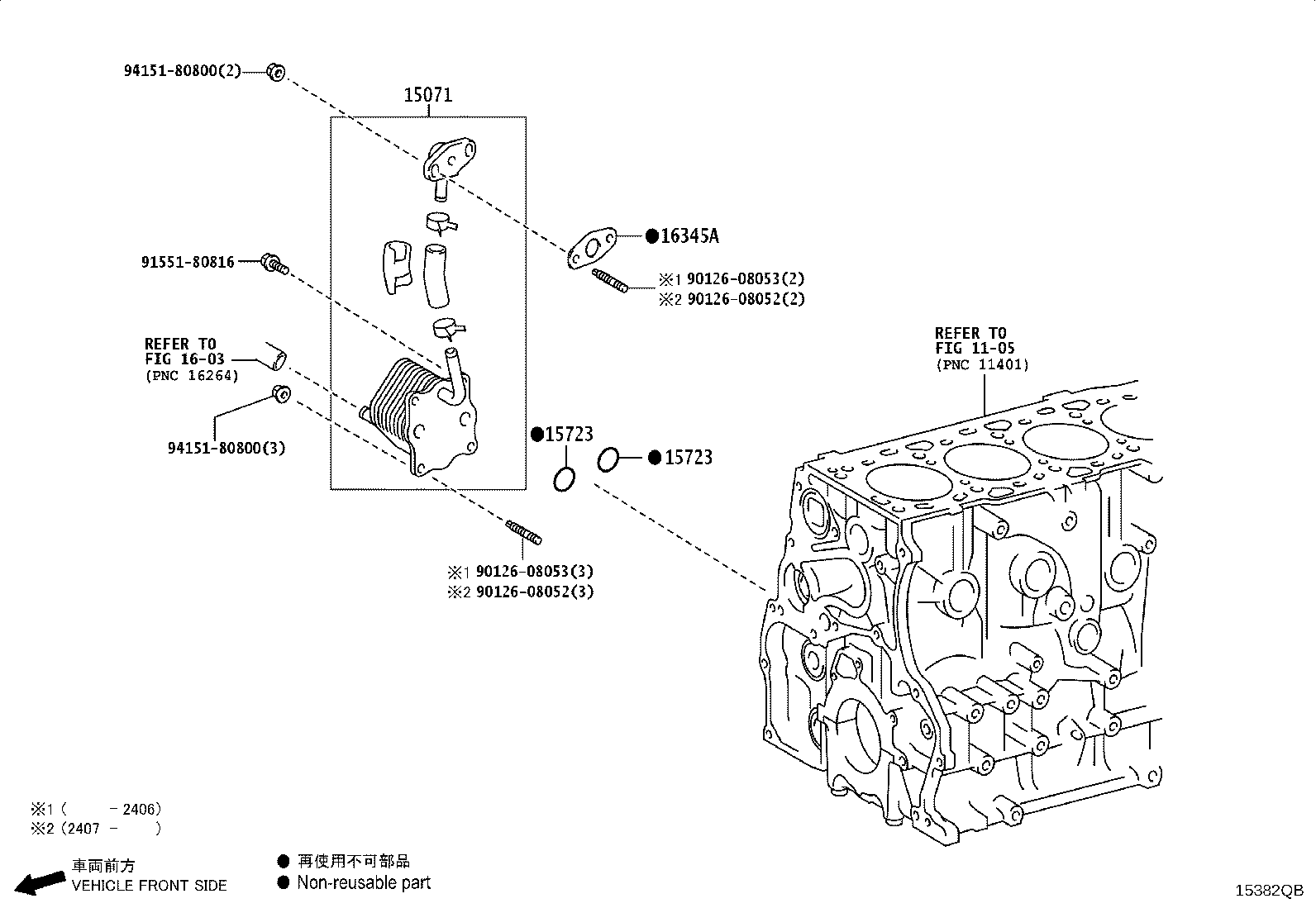

Figure 152193A 152193A 2014-08 → 2015-07 Figure 15382QB 15382QB 2023-11 → —

Part groups

PNCDescription
15071 Cooler Set, Engine Oil
15695 Bolt, Oil Cooler Union
15710 Cooler Assy, Oil
15723 Ring, O
15777 Hose, Oil Cooler
15778 Hose, Oil Cooler, NO.2
16345A Gasket, Water Outlet Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
