Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

12 part groups · 2 illustrations

Illustrations

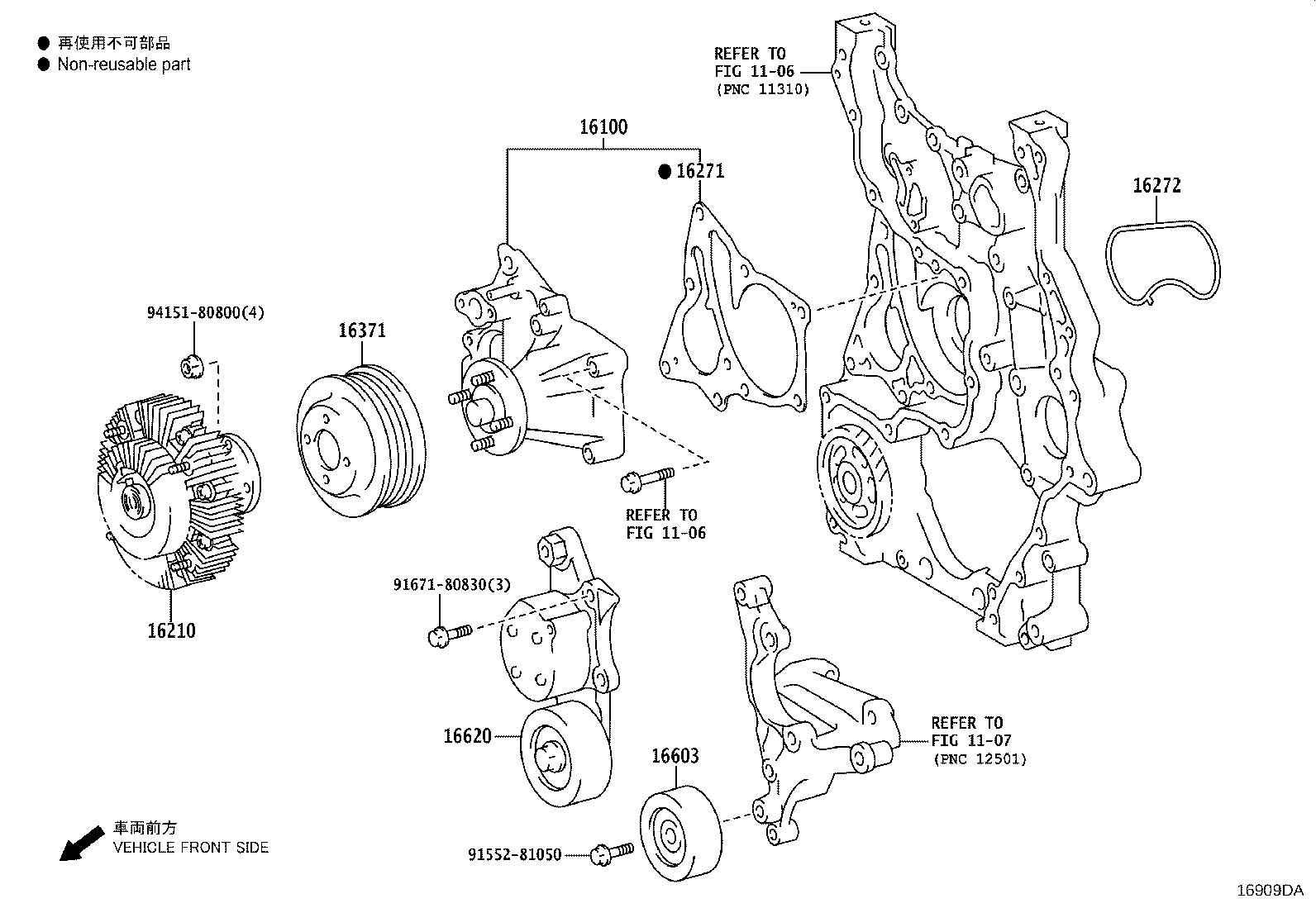

Figure 165756C 165756C 2014-08 → 2015-07 Figure 16909DA 16909DA 2023-11 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16124 Gasket, Water Pump Cover
16193A Bolt(FOR WATER PUMP COVER)
16210 Coupling Assy, Fluid
16271 Gasket, Water Pump
16272 Gasket, Water Pump, NO.2
16371 Pulley, Fan
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
