Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11
Radiator & Water Outlet
116 part groups · 6 illustrations
Part groups

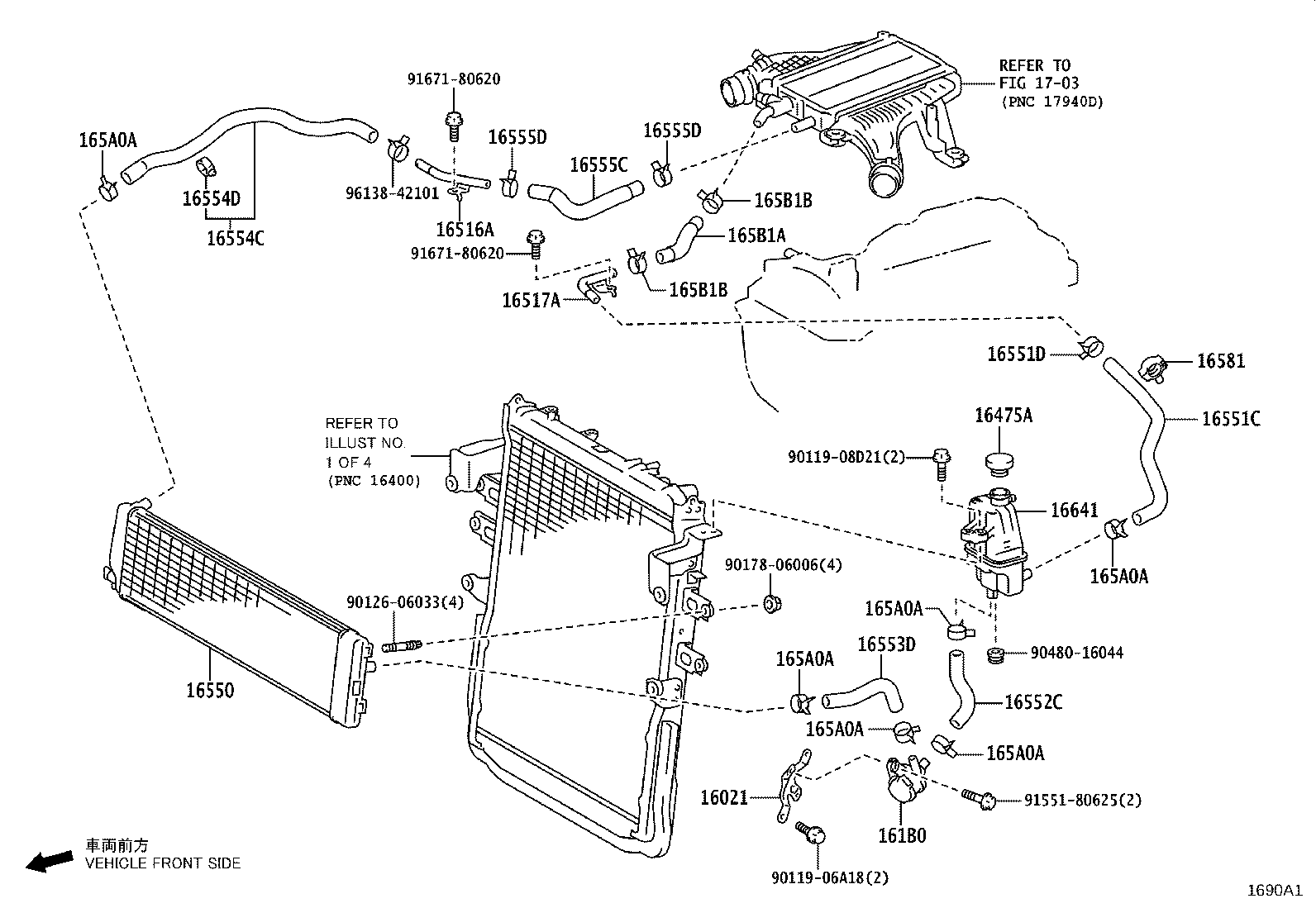

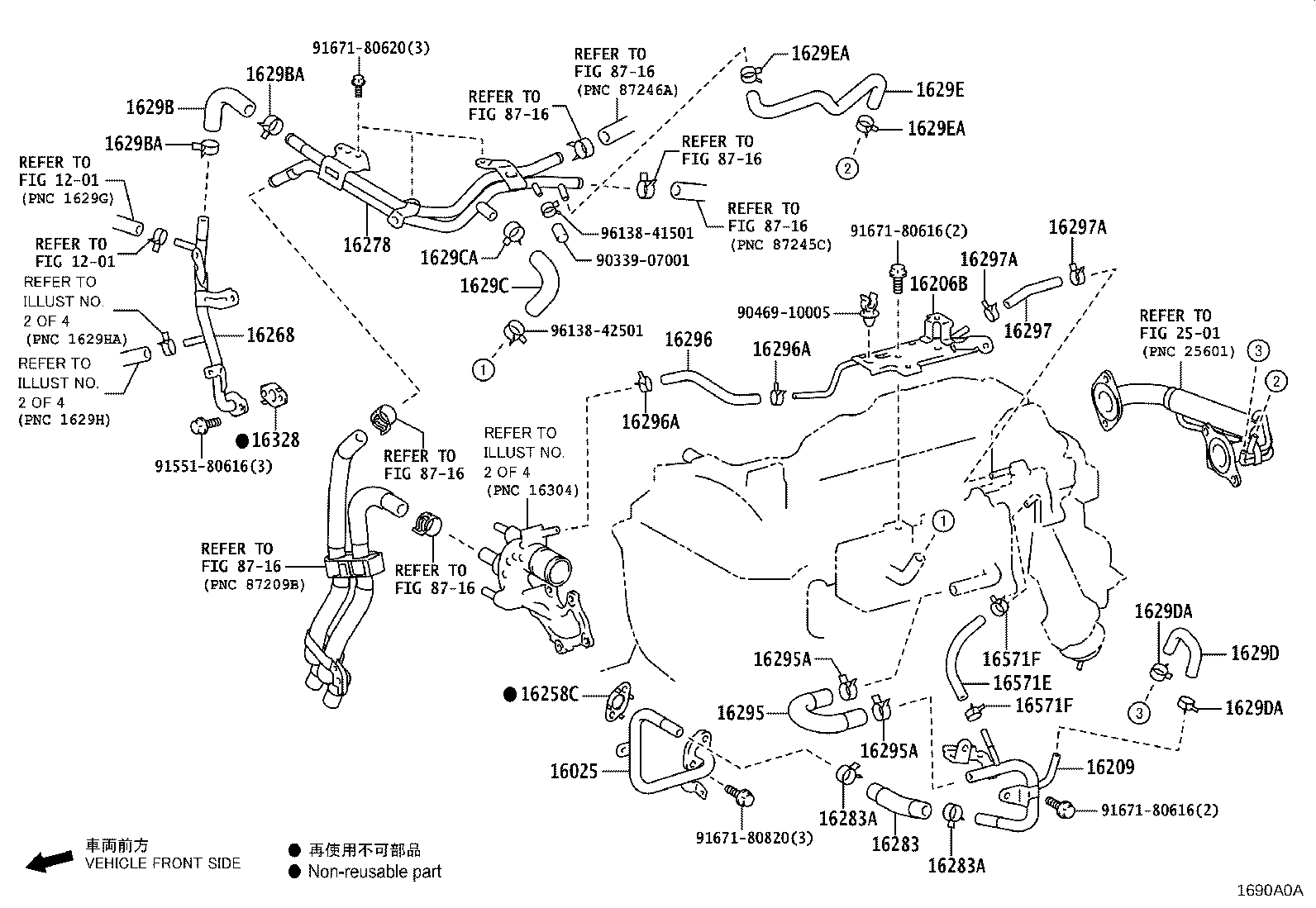

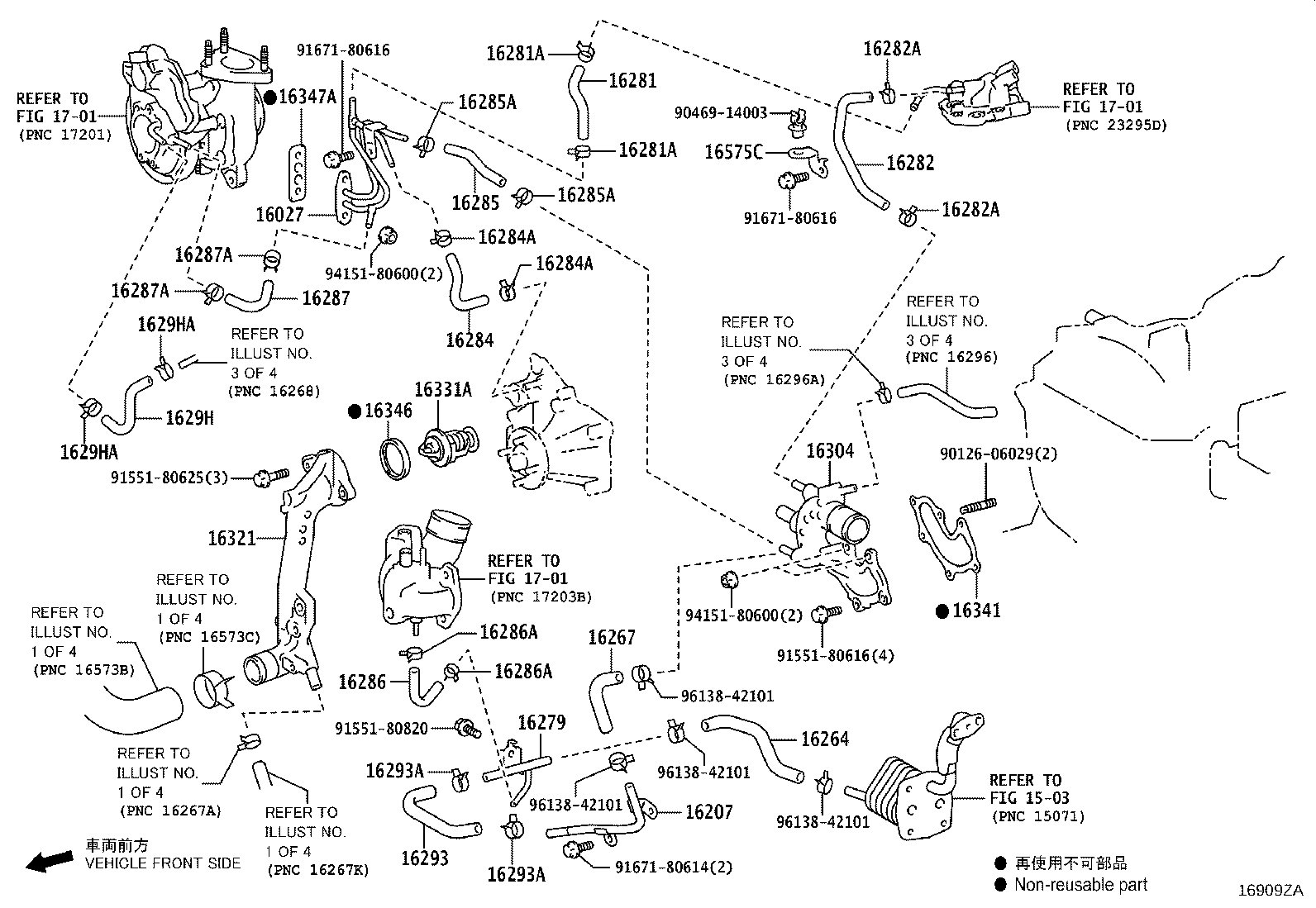

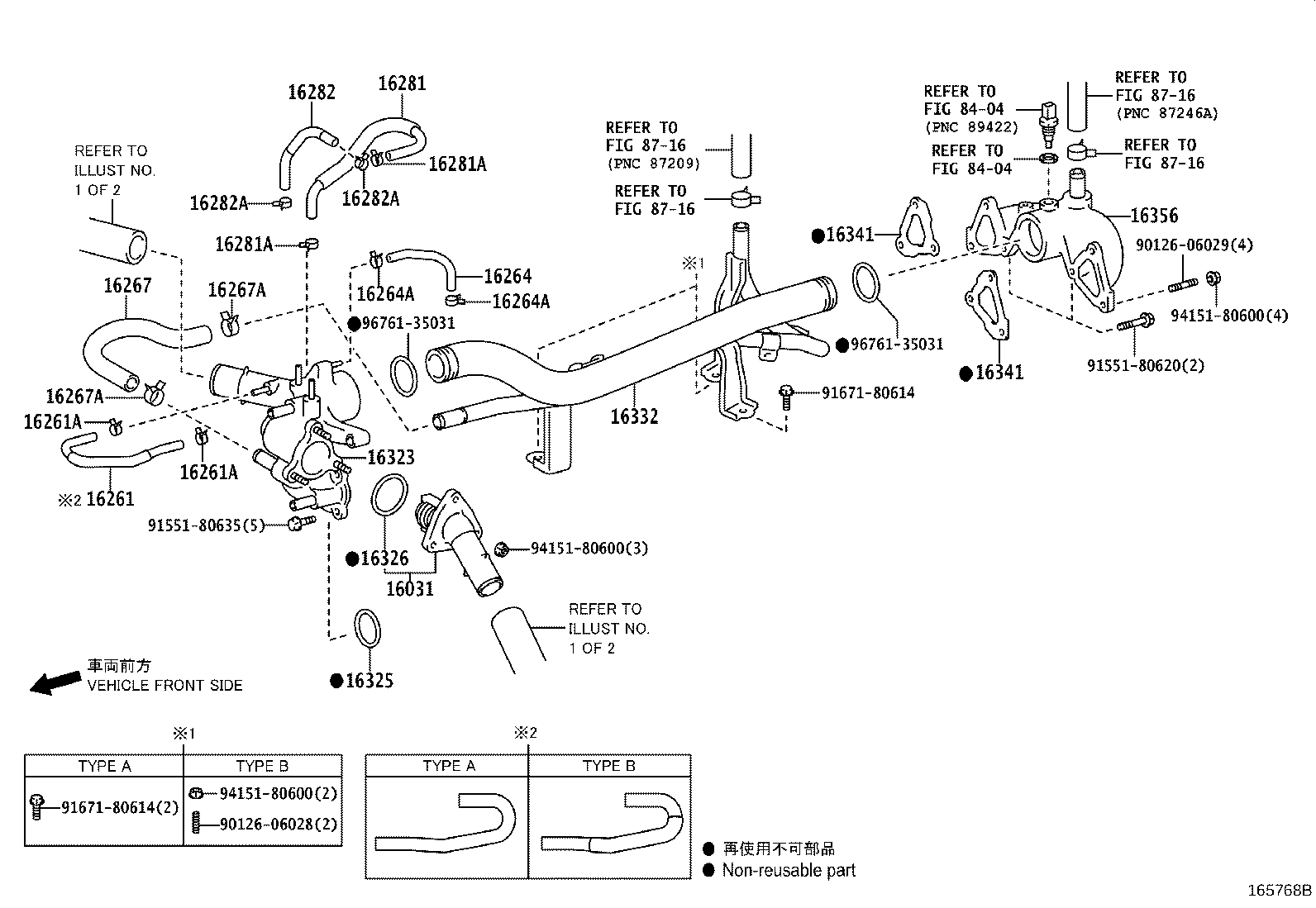

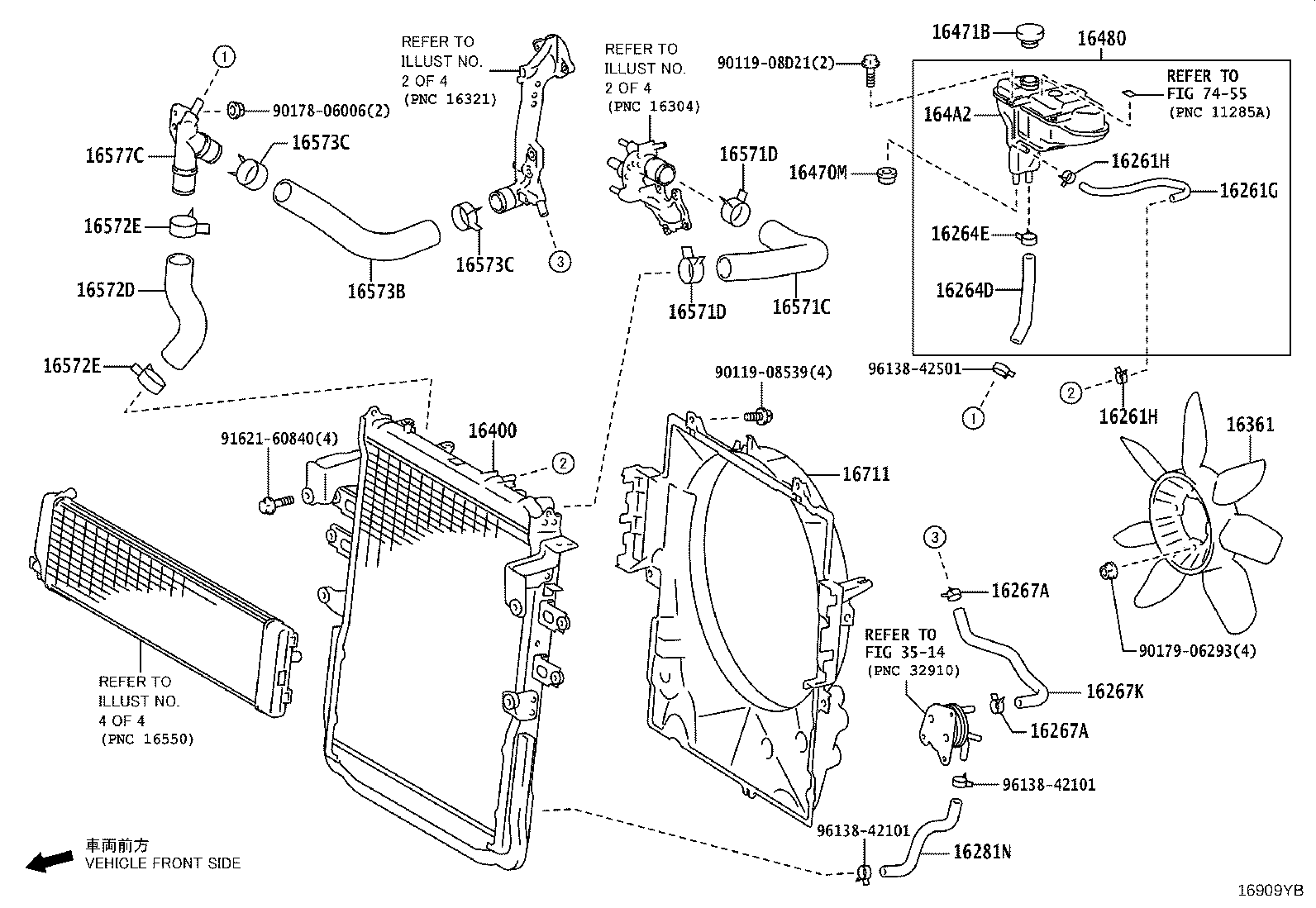

| PNC | Description |
|---|---|
| 16021 | Bracket Sub-assy, Water Pump |
| 16025 | Pipe Sub-assy, Water By-pass, NO.5 |
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 161B0 | Pump Assy, Electric Water |
| 16206B | Pipe Sub-assy, Water By-pass, NO.3 |
| 16207 | Pipe Sub-assy, Water By-pass, NO.2 |
| 16209 | Pipe Sub-assy, Water By-pass, NO.4 |
| 16258C | Gasket(FOR WATER BY-PASS PIPE) |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267K | Hose, Water By-pass, NO.3 |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16281N | Hose, Water By-pass, NO.4 |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16285 | Hose, Turbo Water, NO.2 |
| 16285A | Clip(FOR TURBO WATER HOSE NO.2) |
| 16286 | Hose, Turbo Water, NO.3 |
| 16286A | Clip(FOR TURBO WATER HOSE NO.3) |
| 16287 | Hose, Turbo Water, NO.4 |
| 16287A | Clip(FOR TURBO WATER HOSE NO.4) |
| 16293 | Hose, Water By-pass, NO.10 |
| 16293A | Clip(FOR WATER BY-PASS HOSE NO.10) |
| 16295 | Hose, Water By-pass, NO.7 |
| 16295A | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16297 | Hose, Water By-pass, NO.9 |
| 16297A | Clip(FOR WATER BY-PASS HOSE NO.9) |
| 1629B | Hose, Water By-pass, NO.15 |
| 1629BA | Clip(FOR WATER BY-PASS HOSE NO.15) |
| 1629C | Hose, Water By-pass, NO.16 |
| 1629CA | Clip(FOR WATER BY-PASS HOSE NO.16) |
| 1629D | Hose, Water By-pass, NO.17 |
| 1629DA | Clip(FOR WATER BY-PASS HOSE NO.17) |
| 1629E | Hose, Water By-pass, NO.18 |
| 1629EA | Clip(FOR WATER BY-PASS HOSE NO.18) |
| 1629H | Hose, Water By-pass, NO.21 |
| 1629HA | Clip(FOR WATER BY-PASS HOSE NO.21) |
| 16304 | Outlet Sub-assy, Water |
| 16321 | Inlet, Water |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16328 | Gasket, Water Inlet Pipe |
| 16331A | Thermostat |
| 16332 | Pipe, Water Outlet, NO.1 |
| 16341 | Gasket, Water Outlet |
| 16346 | Gasket, Thermostat |
| 16347A | Gasket(FOR TURBO WATER PIPE) |
| 16356 | Joint, Water By-pass, Rear |
| 16361 | Fan |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16453 | Plate, Radiator Side |
| 16454 | Plate, Radiator Side |
| 16455 | Bolt, Radiator Side Support Plate |
| 16470 | Tank Assy, Radiator Reserve |
| 16470M | Grommet |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16471B | Cap, Reserve Tank |
| 16475A | Cap, Reserve Tank |
| 16480 | Reserve Tank Assy, Radiator W/O Cap |
| 164A2 | Tank, Reserve Sealed W/O Cap |
| 16516A | Pipe, Intercooler Cooling Water, NO.2 |
| 16517A | Pipe, Intercooler Cooling Water, NO.3 |
| 16547 | Bush, Radiator Support, NO.1 |
| 16548 | Bush, Radiator Support, NO.2 |
| 16549 | Collar, Radiator Support, NO.2 |
| 16549A | Collar, Radiator Support, NO.1 |
| 16550 | Radiator Assy, Intercooler Cooling |
| 16551C | Hose, Intercooler Cooling Water, NO.1 |
| 16551D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1) |
| 16552C | Hose, Intercooler Cooling Water, NO.2 |
| 16553D | Hose, Intercooler Cooling Water, NO.3 |
| 16554C | Hose, Intercooler Cooling Water, NO.4 |
| 16554D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4) |
| 16555C | Hose, Intercooler Cooling Water, NO.5 |
| 16555D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5) |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16571E | Hose, Water |
| 16571F | Clamp OR Clip(FOR WATER HOSE) |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16573B | Hose, Radiator, NO.3 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16575C | Bracket, Water Hose Clamp, NO.1 |
| 16577C | Pipe, Radiator |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16584 | Insulator, Radiator Mounting |
| 165A0A | Clip, Hose |
| 165B1A | Hose, Intercooler Cooling Water Outlet |
| 165B1B | Clip(FOR INTERCOOLER COOLING WATER OUTLET HOSE) |
| 16641 | Tank, Intercooler Reserve |
| 16711 | Shroud, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
