Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11
Starter
10 part groups · 2 illustrations
Part groups

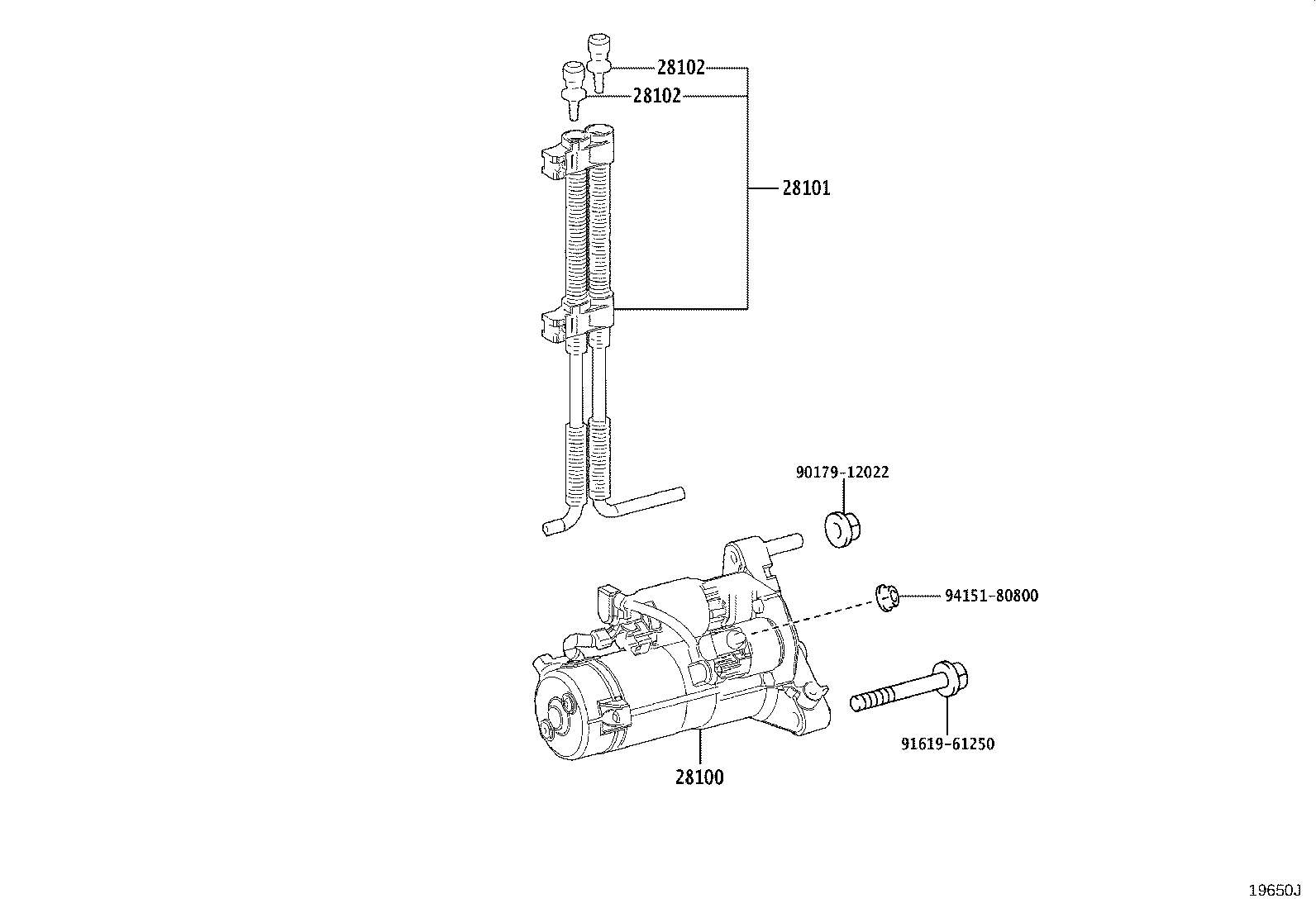

| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28100 | Starter Assy |
| 28101 | Bracket Sub-assy, Starter Hose |
| 28102 | Breather Sub-assy, Starter |
| 28120 | Yoke Assy, Starter |
| 28120A | Ring, O(FOR STARTER YOKE) |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28192 | Cover, Starter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
