Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11

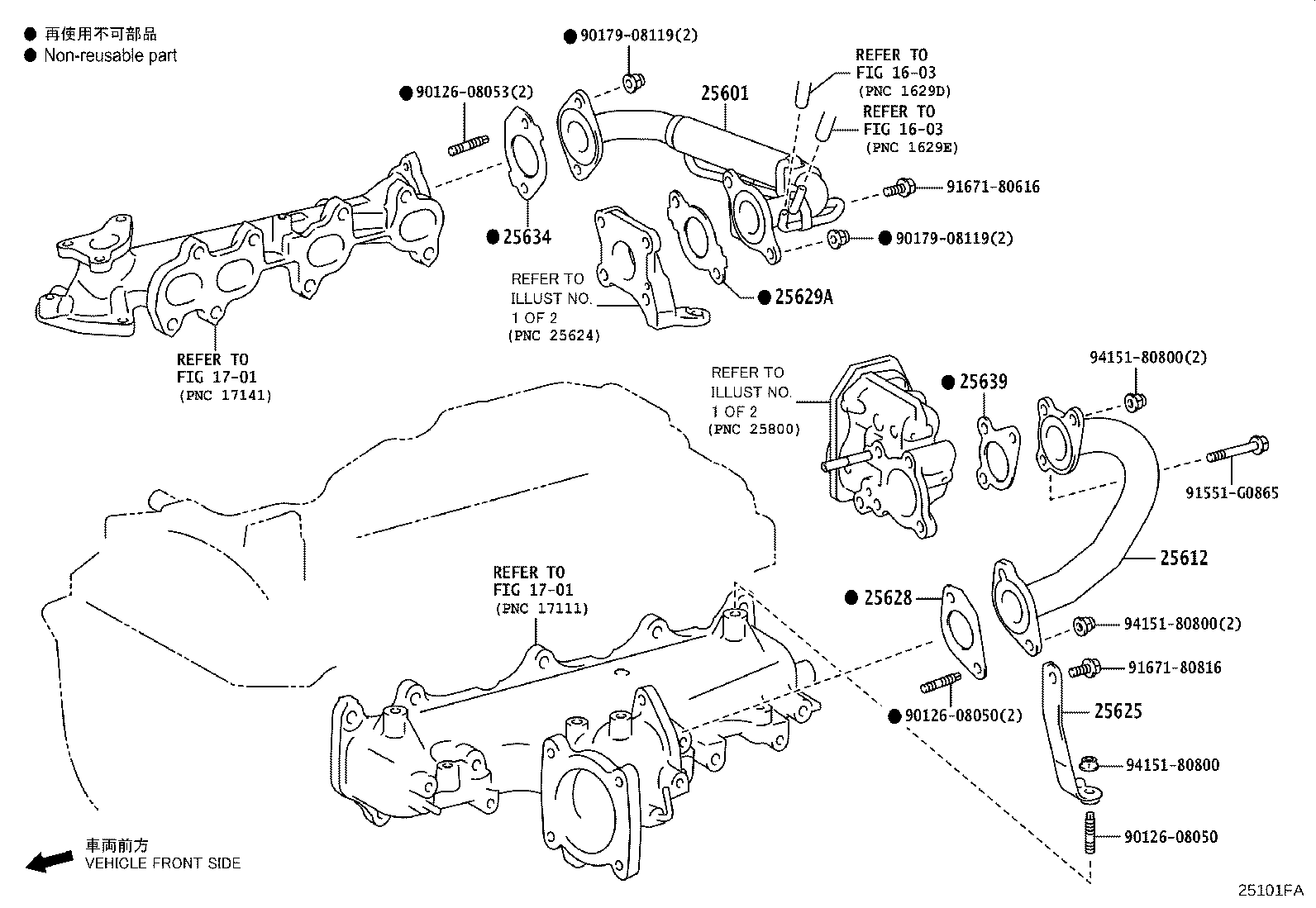

Exhaust Gas Recirculation System
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25612 | Pipe, Egr, NO.2 |
| 25620A | Bolt, Stud(FOR EGR VALVE) |
| 25624 | Adapter, Egr Valve |
| 25625 | Bracket, Egr Valve |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25629A | Gasket, Egr Pipe, NO.2 |
| 25630 | Valve Assy, Egr, NO.2 |
| 25633 | Gasket, Egr Valve |
| 25634 | Gasket, Egr Pipe |
| 25639 | Gasket, Egr Pipe, NO.3 |
| 25681 | Cooler, Egr, NO.1 |
| 25685 | Gasket, Egr Cooler, NO.1 |
| 25800 | Valve Assy, Electric Egr Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
