Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11

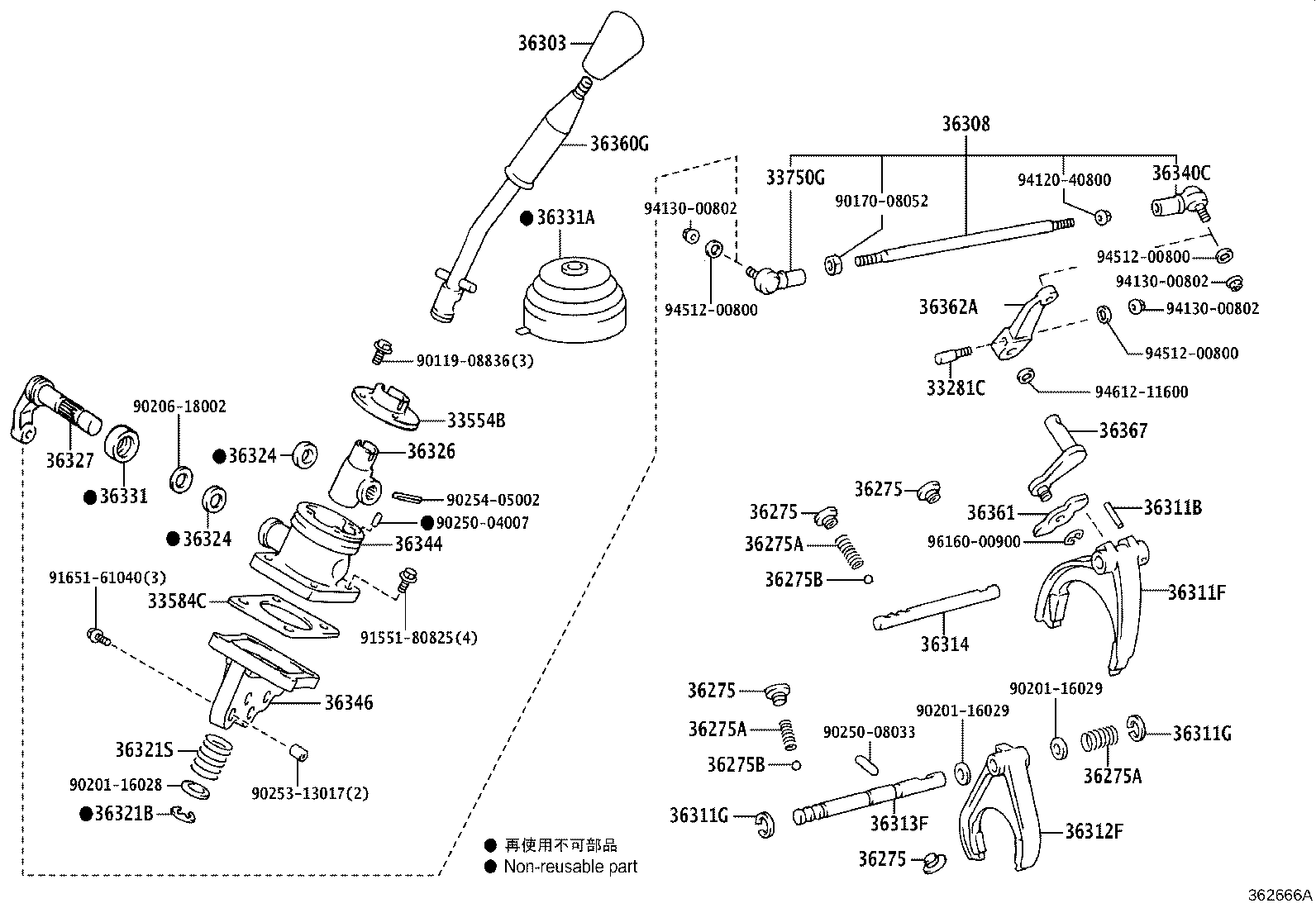

Transfer Lever & Shift Rod
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33281C | Pin, Lever Lock |
| 33554B | Cap, Transfer Shift Lever |
| 33584C | Gasket,Transfer Control Shift Lever Retainer |
| 33750G | End Assy, Connecting Rod, NO.2 (FOR TRANSFER SHIFT ROD) |
| 36275 | Plug, Shift Detent Ball Spring |
| 36275A | Spring, Compression (FOR SHIFT DETENT BALL) |
| 36275B | Ball, Shift Detent |
| 36303 | Knob Sub-assy, Shift Lever |
| 36308 | Rod Sub-assy, High & Low Shift |
| 36311B | Pin, Slotted Spring (FOR TRANSFER SHIFT FORK) |
| 36311F | Fork, Transfer Gear Shift, NO.1 |
| 36311G | Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK) |
| 36312F | Fork, Transfer Gear Shift, NO.2 |
| 36313F | Shaft, Transfer Front Drive Shift Fork |
| 36314 | Shaft, Transfer High And Low Shift Fork |
| 36321B | Ring, Hole Snap (FOR TRANSFER FRONT DRIVE SHIFT LEVER) |
| 36321S | Spring, Compression (FOR TRANSFER SHIFT LEVER) |
| 36324 | Bush, Transfer Shift Lever |
| 36326 | Support, Transfer Shift Lever |
| 36327 | Shaft, Transfer Shift Lever |
| 36331 | Boot, Transfer Shift Lever |
| 36331A | Boot, Transfer Shift Lever, NO.2 |
| 36340C | End Assy, High & Low Connecting Rod |
| 36344 | Retainer, Transfer Control Shift Lever |
| 36346 | Bracket, Transfer Control Shift Lever Retainer |
| 36360G | Lever Assy, Transfer High & Low Shift |
| 36361 | Lever, Transfer Shift, Inner |
| 36362A | Lever, Transfer Shift, Outer |
| 36367 | Shaft, Transfer Shift Inner Lever |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
