Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11

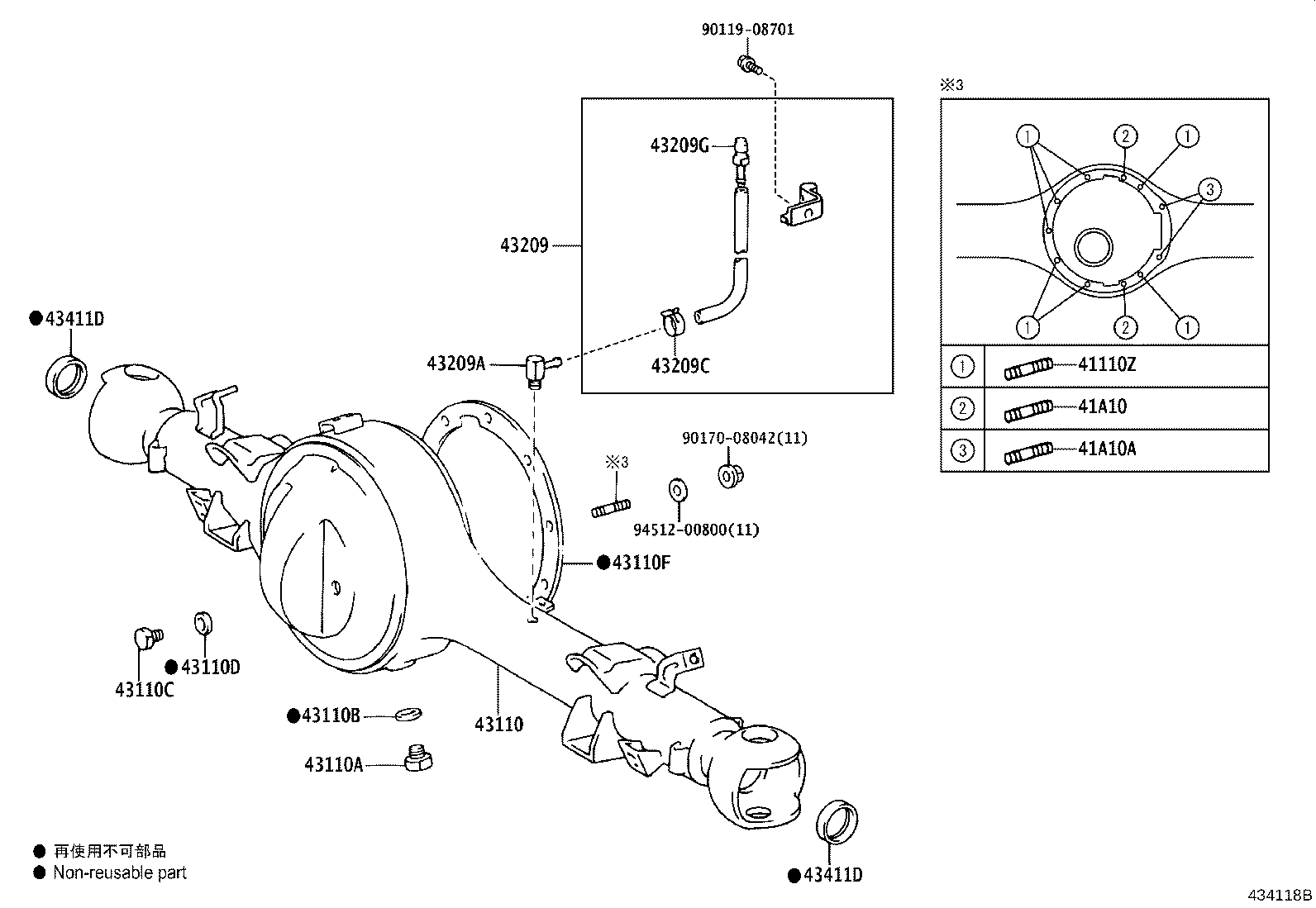

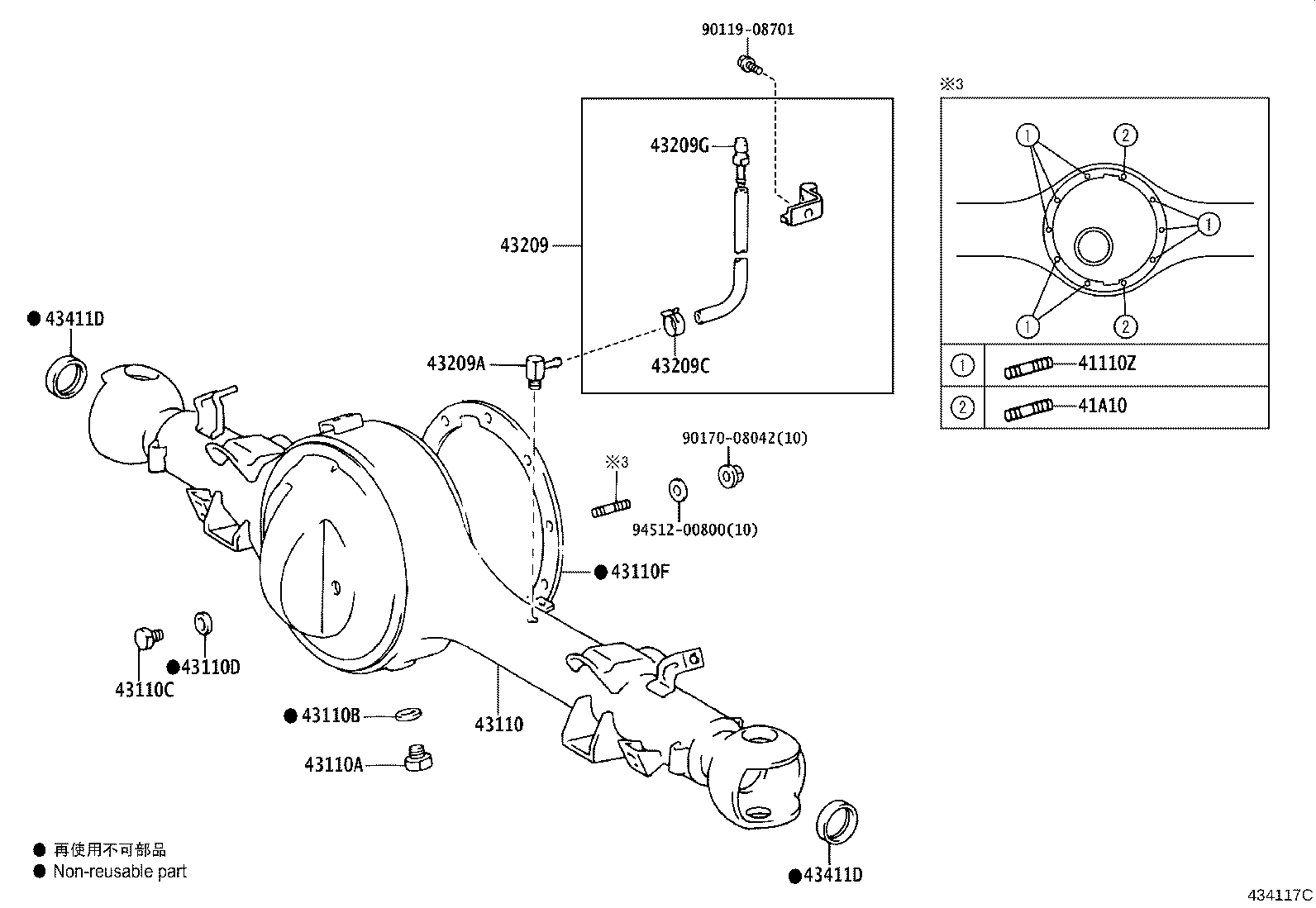

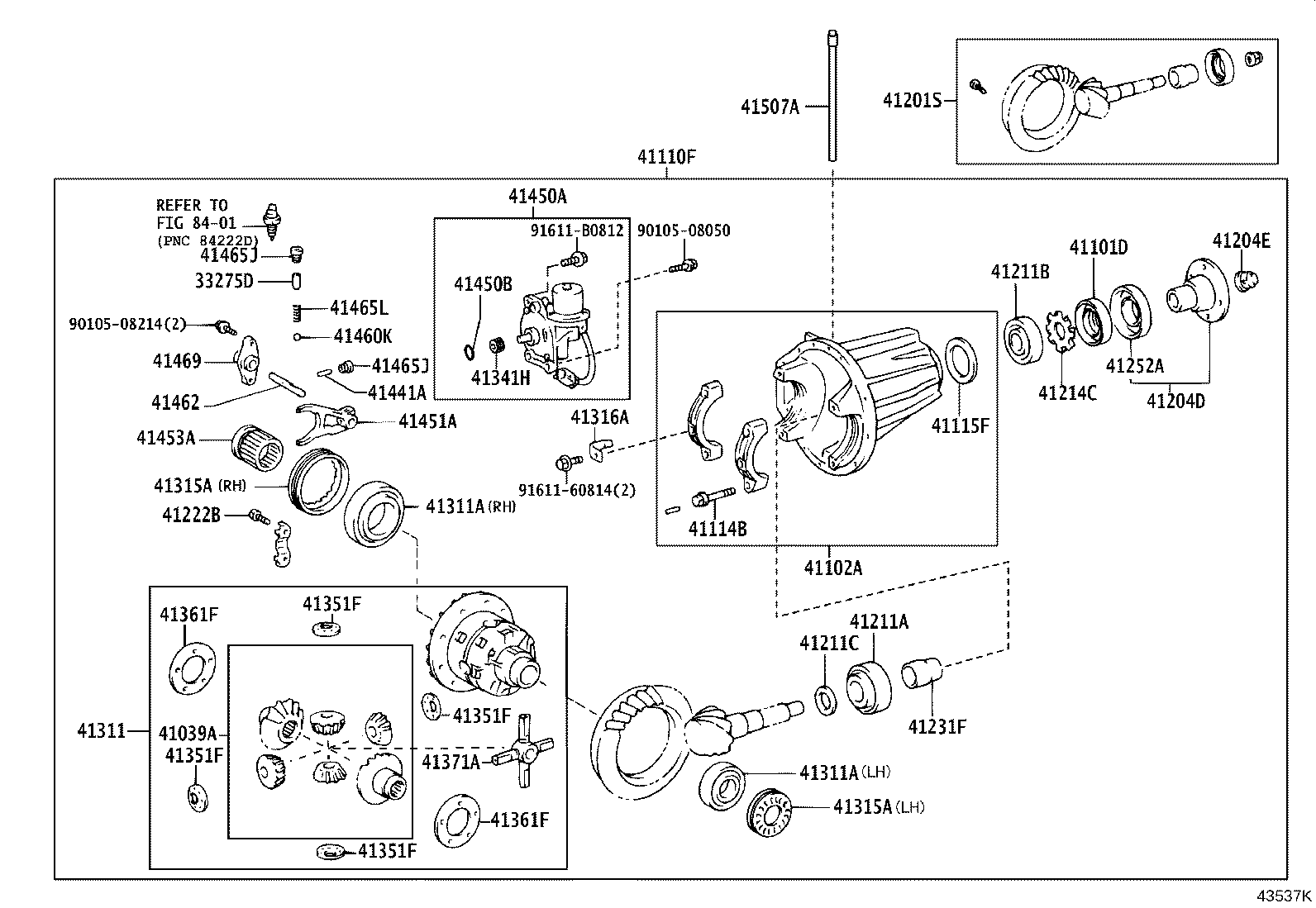

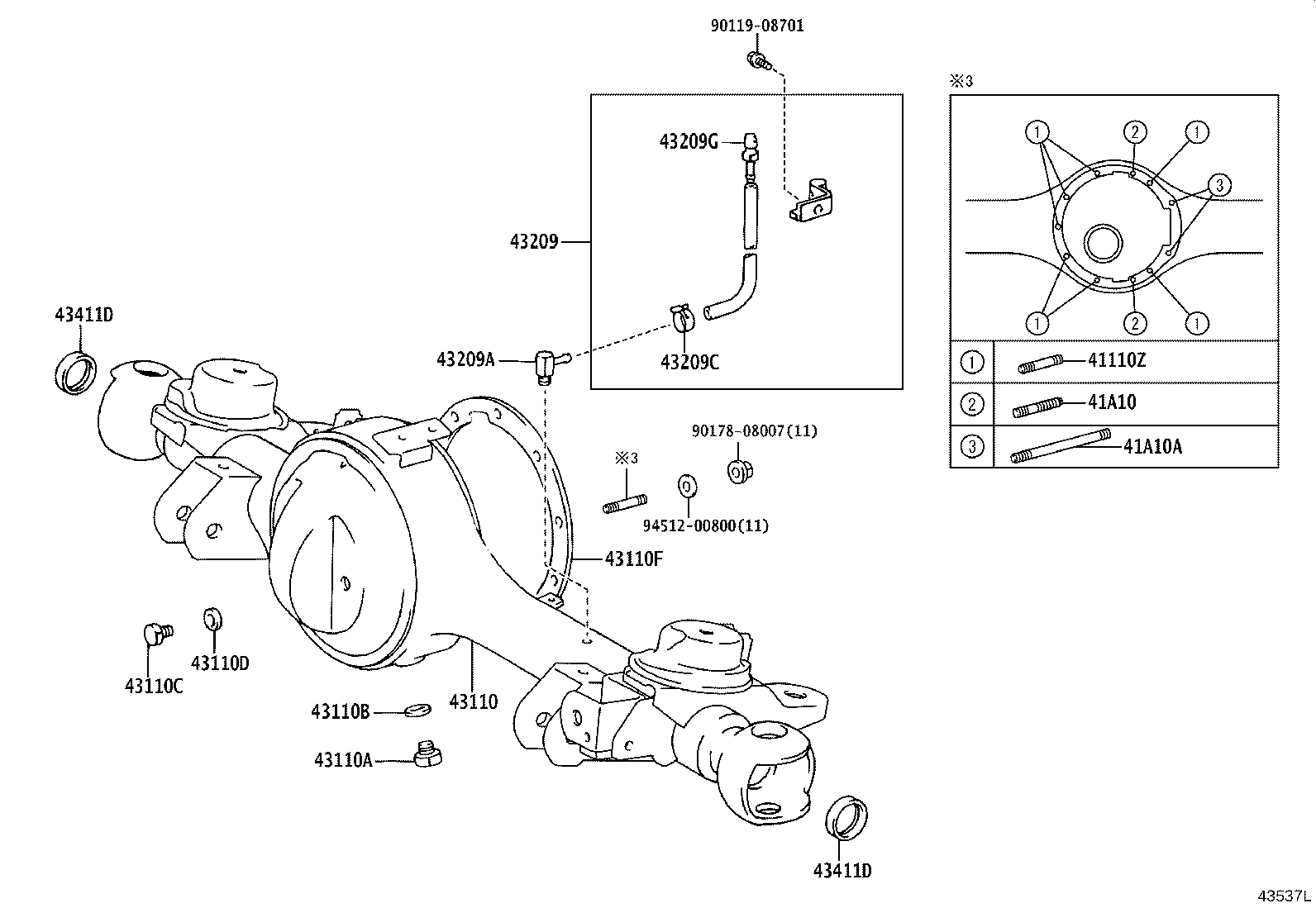

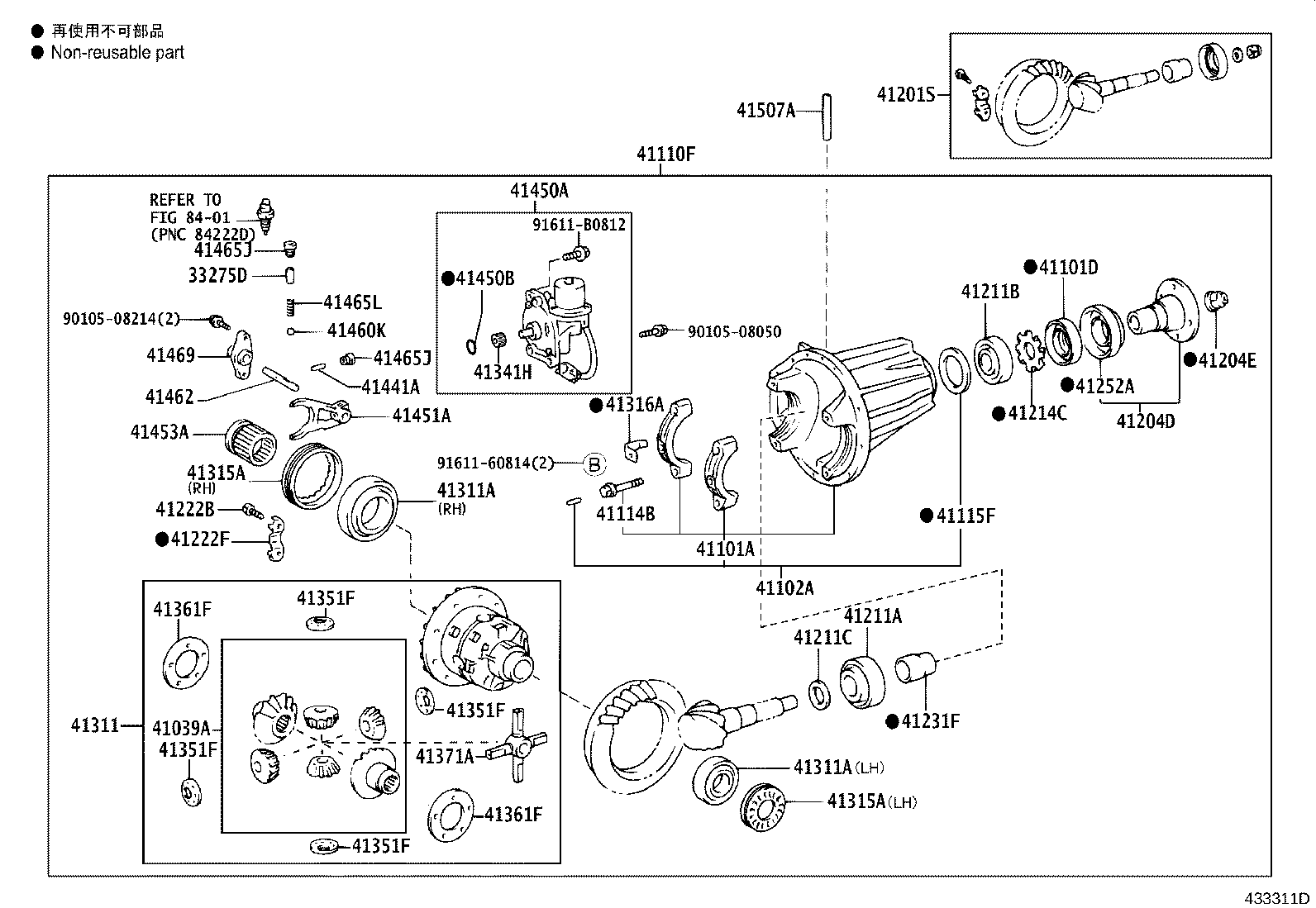

Front Axle Housing & Differential
56 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 33275D | Seat, Shift Detent Ball Spring |
| 41039A | Gear Kit, Differential |
| 41101A | Carrier Sub-assy, Differential, Front |
| 41101D | Seal, Oil (FOR FRONT DIFFERENTIAL CARRIER) |
| 41102A | Carrier Sub-assy, Differential, Front W/Pin |
| 41110F | Carrier Assy, Differential, Front |
| 41110Z | Bolt, Stud NO.1(FOR FRONT DIFFERENTIAL CARRIER) |
| 41114B | Bolt, Front Differential Bearing Cap |
| 41115F | Ring, Front Differential Oil Storage |
| 41201S | Final Gear Kit, Differential, Front |
| 41204D | Flange Sub-assy, Front Drive Pinion Companion, Front |
| 41204E | Nut (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41211C | Gear, Differential Ring |
| 41214C | Slinger, Front Differential Drive Pinion Oil |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41222F | Plate, Fornt Differential Ring Gear Set Bolt Lock |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41252A | Deflector, Dust (FOR FRONT DIFFERENTIAL) |
| 41311 | Case, Front Differential |
| 41311A | Bearing (FOR FRONT DIFFERENTIAL CASE) |
| 41315A | Nut, Front Differential Bearing Adjusting |
| 41316A | Lock, Front Differential Bearing Adjusting Nut |
| 41331F | Gear, Front Differential Side |
| 41341F | Pinion, Front Differential |
| 41341H | Pinion, Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 41371A | Spider, Front Differential |
| 41441A | Pin, Slotted Spring (FOR DIFFERENTIAL SHIFT FORK) |
| 41450A | Actuator, Differential Lock Shift, NO.2 |
| 41450B | Ring, O (FOR DIFFERENTIAL LOCK SHAFT RETAINER) |
| 41451A | Fork, Front Differential Lock Shift |
| 41453A | Sleeve, Front Differential Lock |
| 41460K | Ball (FOR FRONT DIFFERENTIAL LOCK CYLINDER) |
| 41462 | Shaft, Front Differential Lock Shift Fork |
| 41465J | Plug (FOR FRONT DIFFERENTIAL LOCK CYLINDER) |
| 41465L | Spring, Compression(FOR FRONT DIFFERENTIAL LOCK RETAINER) |
| 41469 | Retainer, Differential Lock Shaft |
| 41507A | Tube, Front Differential Lock Actuator Breather, NO.2 |
| 41A10 | Bolt, Stud NO.2(FOR FRONT DIFFERENTIAL CARRIER) |
| 41A10A | Bolt, Stud NO.3(FOR FRONT DIFFERENTIAL CARRIER) |
| 43110 | Housing Assy, Front Axle |
| 43110A | Plug Sub-assy, Drain |
| 43110B | Gasket, Drain |
| 43110C | Plug (FOR FRONT AXLE HOUSING) |
| 43110D | Gasket (FOR FRONT AXLE HOUSING PLUG) |
| 43110F | Gasket, Front Differential Carrier |
| 43209 | Hose Sub-assy, Front Axle Breather |
| 43209A | Union (FOR FRONT AXLE BREATHER HOSE) |
| 43209C | Clip, Hose (FOR FRONT AXLE BREATHER HOSE) |
| 43209G | Plug, Breather (FOR FRONT AXLE) |
| 43411D | Seal, Type T Oil (FOR FRONT DRIVE SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
