Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11

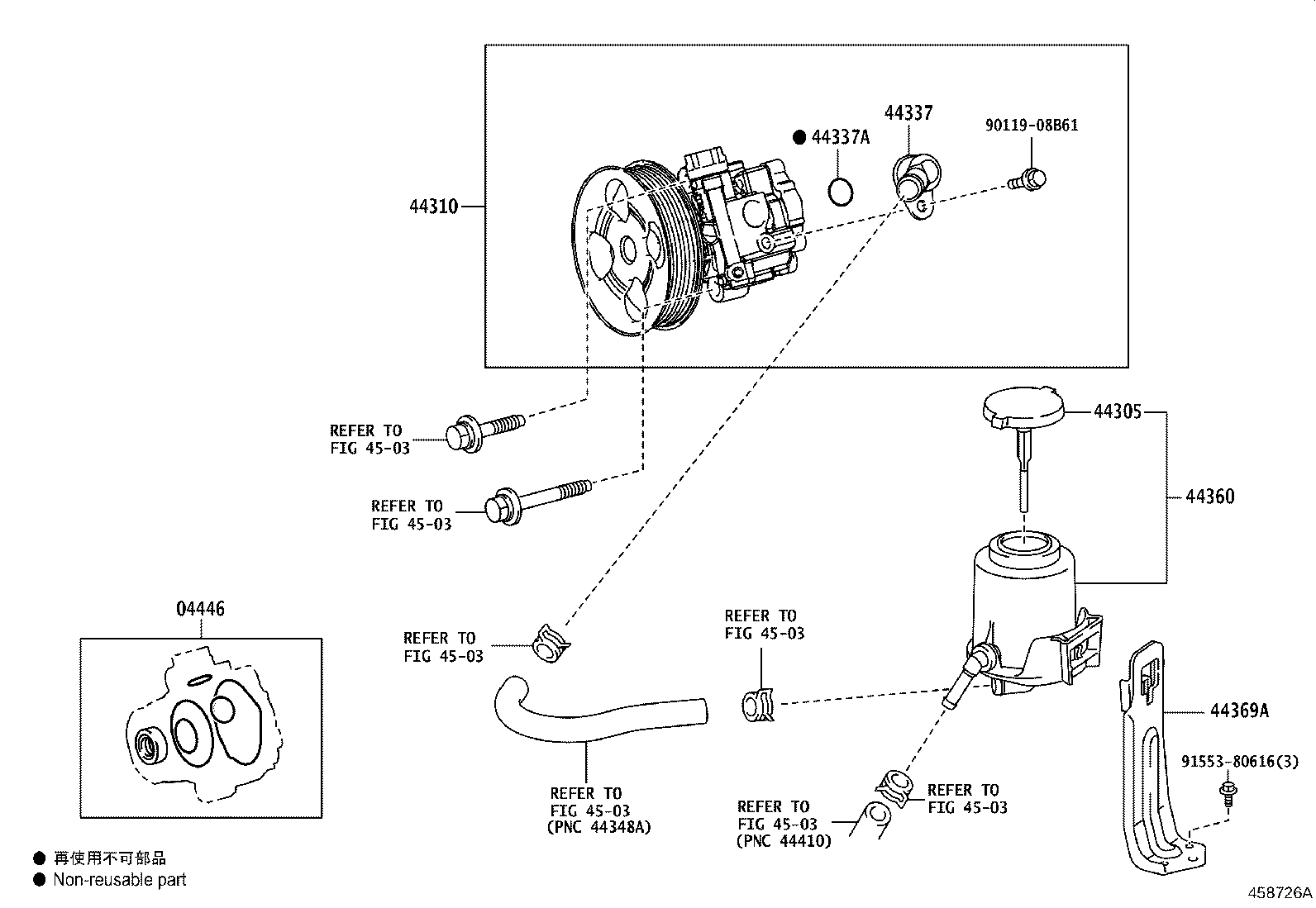

Vane Pump & Reservoir (POWER STEERING)
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04446 | Gasket Kit, Power Steering Pump |
| 44303A | Shaft Sub-assy, W/Pulley |
| 44305 | Cap Sub-assy, Vane Pump Oil Reservoir |
| 44310 | Pump Assy, Vane |
| 44337 | Union, Power Steering Suction Port |
| 44337A | Ring, O(FOR POWER STEERING SUCTION PORT) |
| 44360 | Reservoir Assy, Vane Pump Oil |
| 44369A | Bracket, Oil Reservoir, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
