Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

24 part groups · 2 illustrations

Illustrations

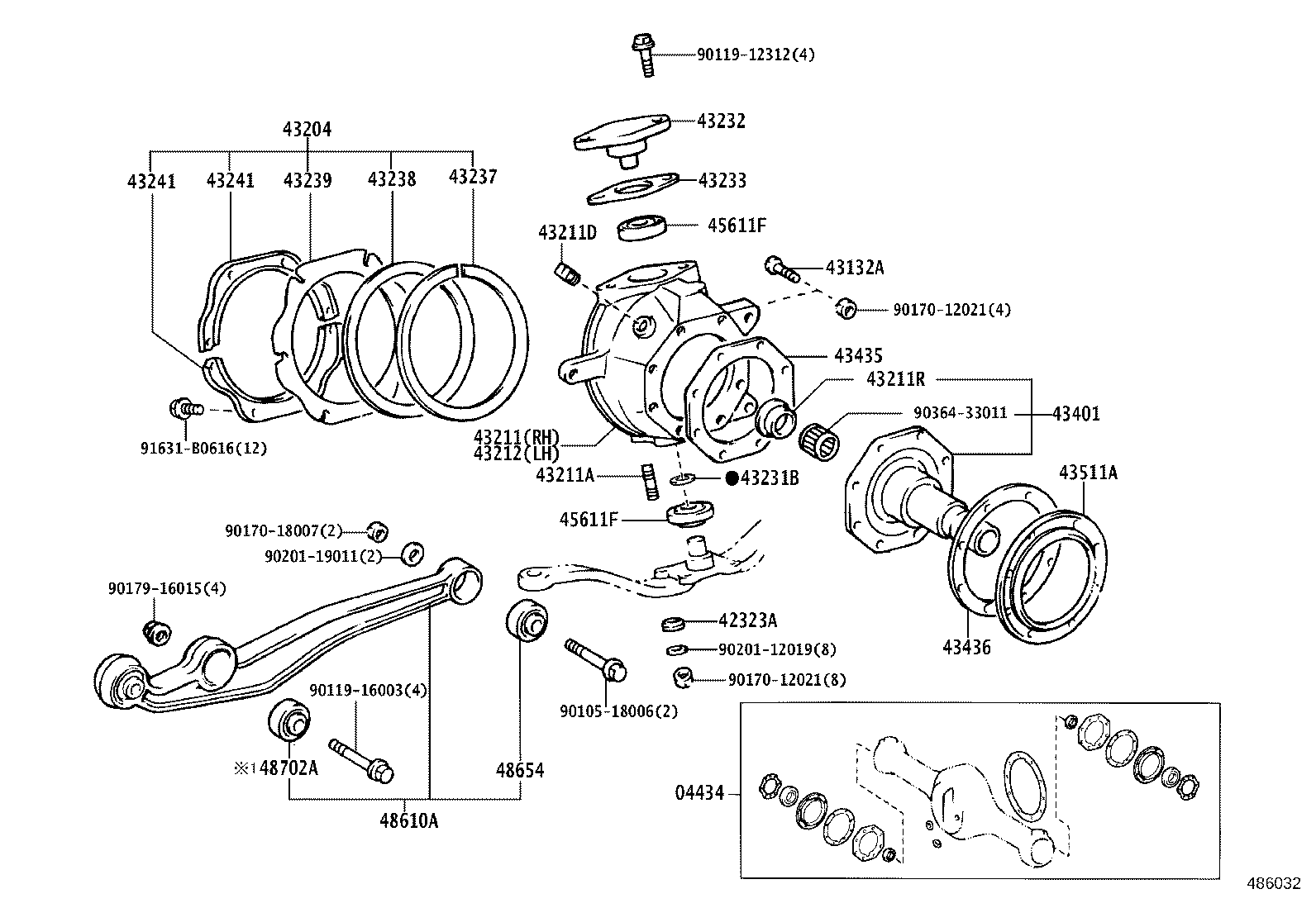

Figure 484077B 484077B 2014-08 → — Figure 486032 486032 2023-11 → —

Part groups

PNCDescription
04434 Gasket Kit, Front Axle Overhaul
42323A Washer, Cone (FOR STEERING KNUCKLE ARM)
43132A Bolt, Round Hexagon (FOR STEERING KNUCKLE STOPPER BOLT)
43204 Seal Sub-assy, Steering Knuckle Oil
43211 Knuckle, Steering, RH
43211A Bolt, Stud (FOR STEERING SET)
43211D Plug (FOR STEERING KNUCKLE)
43211R Bush (FOR STEERING KNUCKLE)
43212 Knuckle, Steering, LH
43231B Seal, Dust OR Ring, O (FOR STEERING KNUCKLE KING PIN)
43232 Cap, Steering Knuckle Bearing
43233 Shim, Steering Knuckle Adjust, NO.1
43237 Ring, Steering Knuckle Oil Seal, Inner
43238 Seal, Steering Knuckle Oil, Inner
43239 Seal, Steering Knuckle Oil, Outer
43241 Cover, Steering Kunckle Oil Seal
43401 Spindle Sub-assy, Steering Knuckle
43435 Gasket, Knuckle Spindle
43436 Gasket, Knuckle Spindle Oil Retainer
43511A Seal, Dust (FOR FRONT AXLE HUB)
45611F Bearing(FOR STEERING KNUCKLE ARM)
48610A Arm Assy, Leading, Front
48654 Bush, Lower Arm
48702A Bush Sub-assy, Leading Arm, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
