Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11

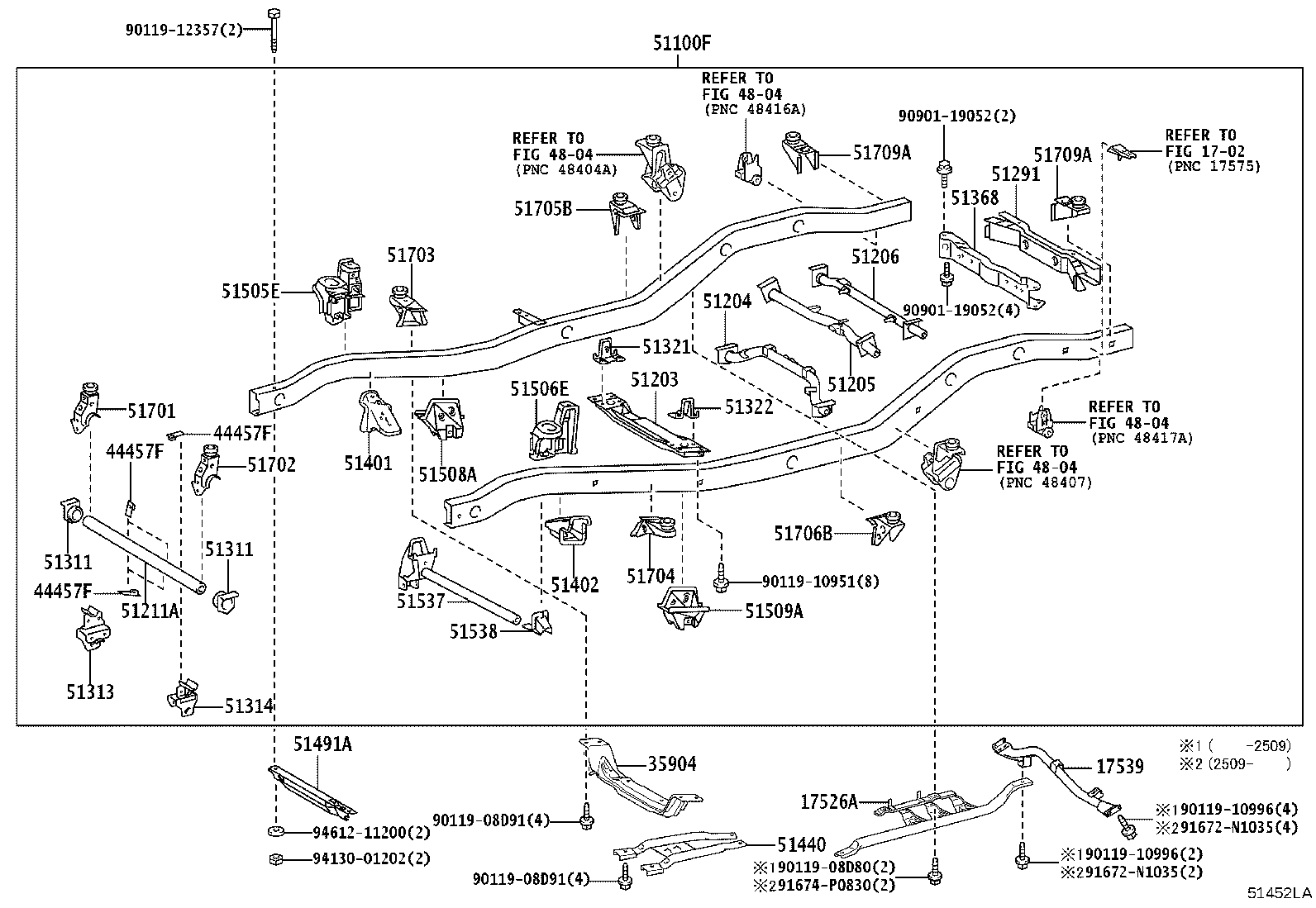

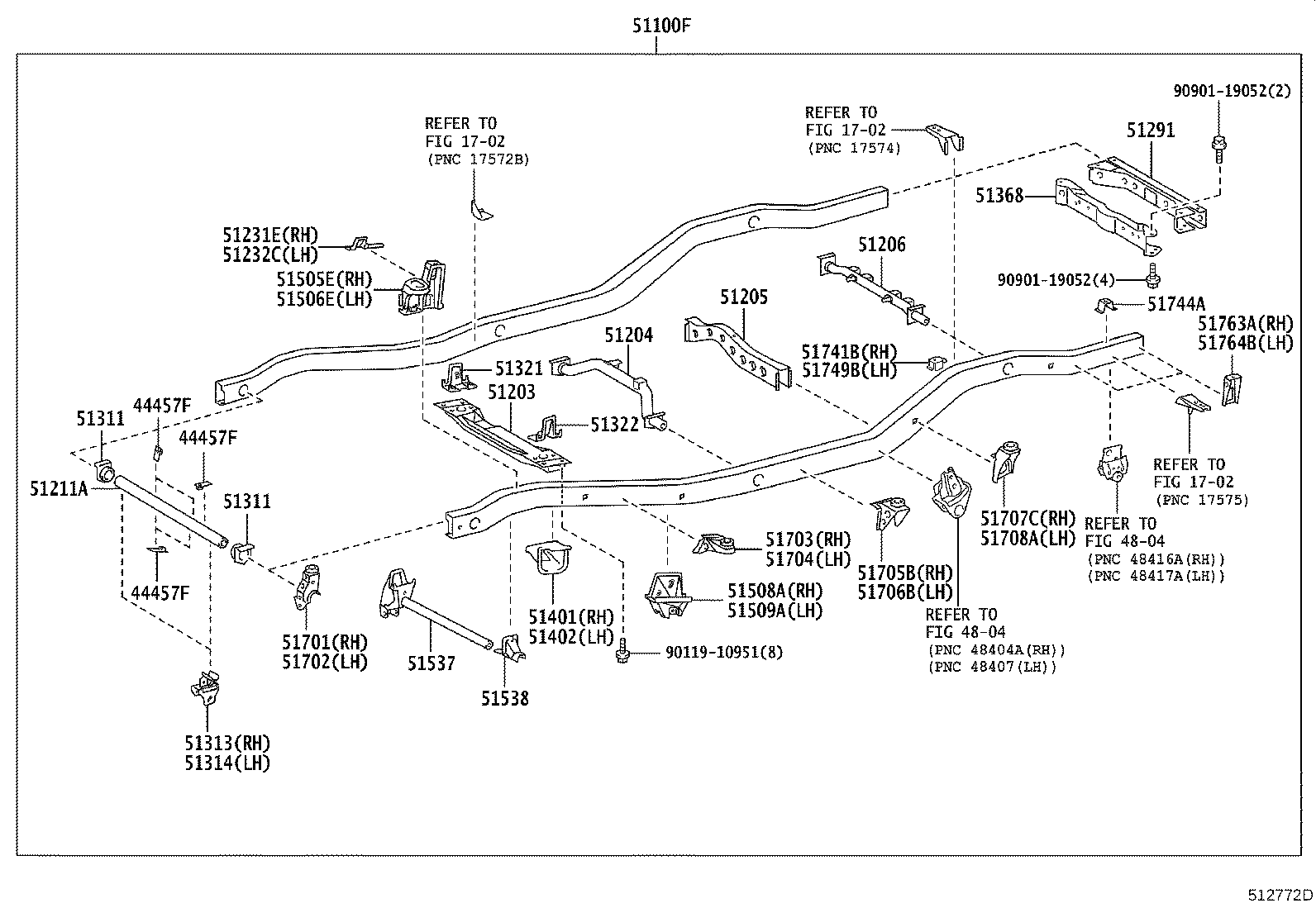

Frame
45 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17526A | Guard, Catalytic Converter |
| 17539 | Crossmember, Guard Catalyst |
| 35904 | Bracket Sub-assy, Side Rail Oil Pan Protector |
| 38307A | Support Sub-assy, Winch Base, RH |
| 38308A | Support Sub-assy, Winch Base, LH |
| 44457F | Bracket, Tube Support |
| 51100F | Frame Sub-assy |
| 51203 | Crossmember Sub-assy, Frame, NO.2 |
| 51204 | Crossmember Sub-assy, Frame, NO.3 |
| 51205 | Crossmember Sub-assy, Frame, NO.4 |
| 51206 | Crossmember Sub-assy, Frame, NO.5 |
| 51211A | Crossmember, Frame, Front |
| 51231E | Bracket, Front Shock Absorber, LH |
| 51232C | Bracket, Front Shock Absorber, LH |
| 51291 | Crossmember, Frame, Rear |
| 51311 | Gusset, Frame Front Crossmember |
| 51313 | Gusset, Front Frame, Lower RH |
| 51314 | Gusset, Front Frame, Lower LH |
| 51321 | Gusset, Crossmember, NO.2 RH |
| 51322 | Gusset, Crossmember, NO.2 LH |
| 51368 | Member, Frame Fuel Tank Mounting |
| 51401 | Bracket Sub-assy, Engine Front Mounting, RH |
| 51402 | Bracket Sub-assy, Engine Front Mounting, LH |
| 51440 | Protector Assy, Oil Pan |
| 51491A | Bar, Under Guard, Front NO.1 |
| 51505E | Bracket Sub-assy, Front Spring Support, RH |
| 51506E | Bracket Sub-assy, Front Spring Support, LH |
| 51508A | Bracket Sub-assy, Lower Arm, RH |
| 51509A | Bracket Sub-assy, Lower Arm, LH |
| 51537 | Bracket, Lateral Rod Support |
| 51538 | Stay, Lateral Rod Support |
| 51701 | Bracket Sub-assy, Cab Mounting, NO.1 RH |
| 51702 | Bracket Sub-assy, Cab Mounting, NO.1 LH |
| 51703 | Bracket Sub-assy, Cab Mounting, NO.2, RH |
| 51704 | Bracket Sub-assy, Cab Mounting, NO.2 LH |
| 51705B | Bracket Sub-assy, Cab Mounting, NO.3 RH |
| 51706B | Bracket Sub-assy, Cab Mounting, NO.3 LH |
| 51707C | Bracket Sub-assy, Cab Mounting, NO.4 RH |
| 51708A | Bracket Sub-assy, Cab Mounting, NO.4 LH |
| 51709A | Bracket Sub-assy, Body Rear End Mounting |
| 51741B | Bracket, Body Rear Mounting, NO.1 RH |
| 51744A | Bracket, Rear Body Mounting, NO.4 |
| 51749B | Bracket, Body Rear Mounting, NO.1 LH |
| 51763A | Bracket, Body Support, NO.6 RH |
| 51764B | Bracket, Body Support, NO.6 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
