Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

15 part groups · 2 illustrations

Illustrations

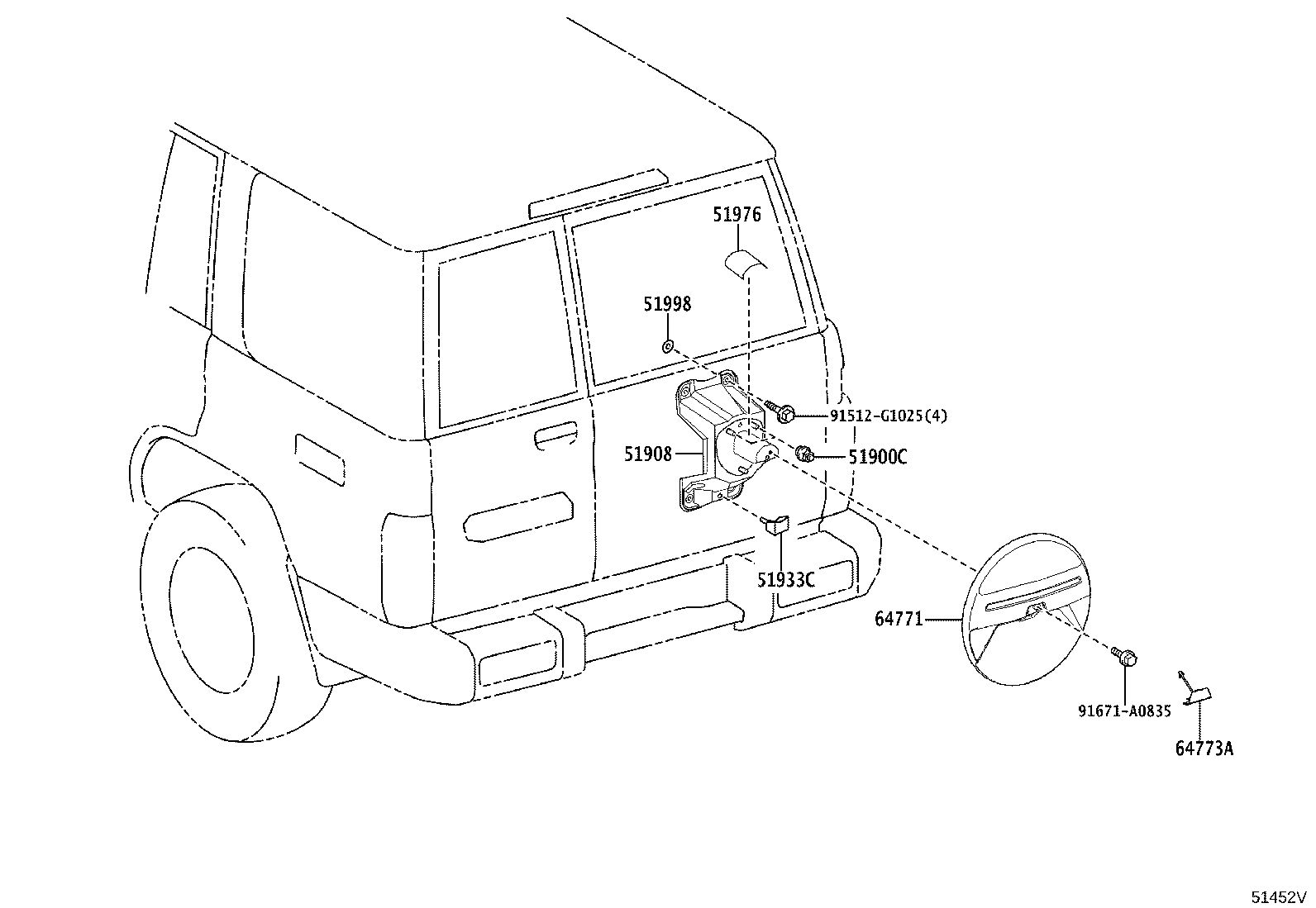

Figure 512780A 512780A 2014-08 → 2015-07 Figure 51452V 51452V 2023-09 → —

Part groups

PNCDescription
51900C Nut, Spare Wheel, Hub
51903B Carrier Sub-assy, Spare Wheel
51904 Bracket Sub-assy, Speare Wheel Carrier
51906B Handle Sub-assy, Spare Wheel Carrier
51908 Bracket Sub-assy, Spare Wheel Carrier
51911 Bolt Assy, Spare Wheel Mounting
51933A Stopper, Spare Wheel, NO.1
51933C Stopper, Spare Wheel
51941A Bracket, Spare Wheel Carrier
51944 Bracket, Spare Wheel Carrier, NO.2
51959 Cushion, Spare Wheel
51976 Film, Spare Wheel Carrier, NO.2
51998 Pad, Spare Wheel Bracket
64771 Cover, Spare Wheel
64773A Cover, Spare Wheel, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
