Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

10 part groups · 2 illustrations

Illustrations

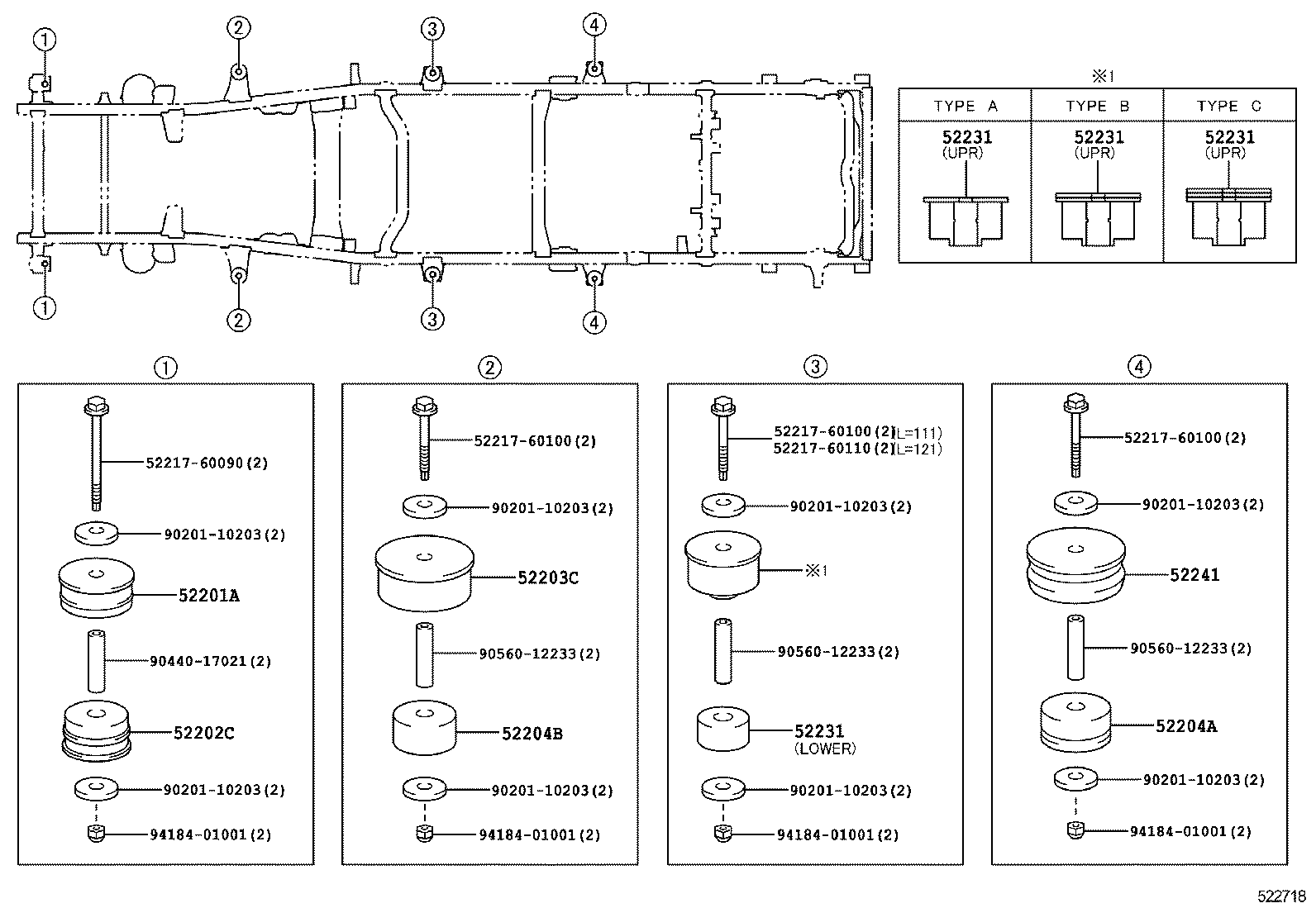

Figure 523002B 523002B 2014-08 → — Figure 522718 522718 2014-08 → —

Part groups

PNCDescription
52201A Cushion Sub-assy, Cab Front Mounting
52202C Cushion Sub-assy, Cab Front Mounting, Lower
52203C Cushion Sub-assy, Cab Mounting, NO.2 Upper
52203D Cushion Sub-assy, Cab Mounting, NO.2 Upper
52204A Cushion Sub-assy, Body Mounting, Rear Lower
52204B Cushion Sub-assy, Cab Mounting, NO.2 Lower
52209 Cushion Sub-assy, Rear End Body Mounting, Upper
52231 Cushion, Body Mount, NO.3 Upper
52241 Cushion, Body Mount, NO.4 Upper
52264A Cushion, Body Mount, NO.6 Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
