Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11

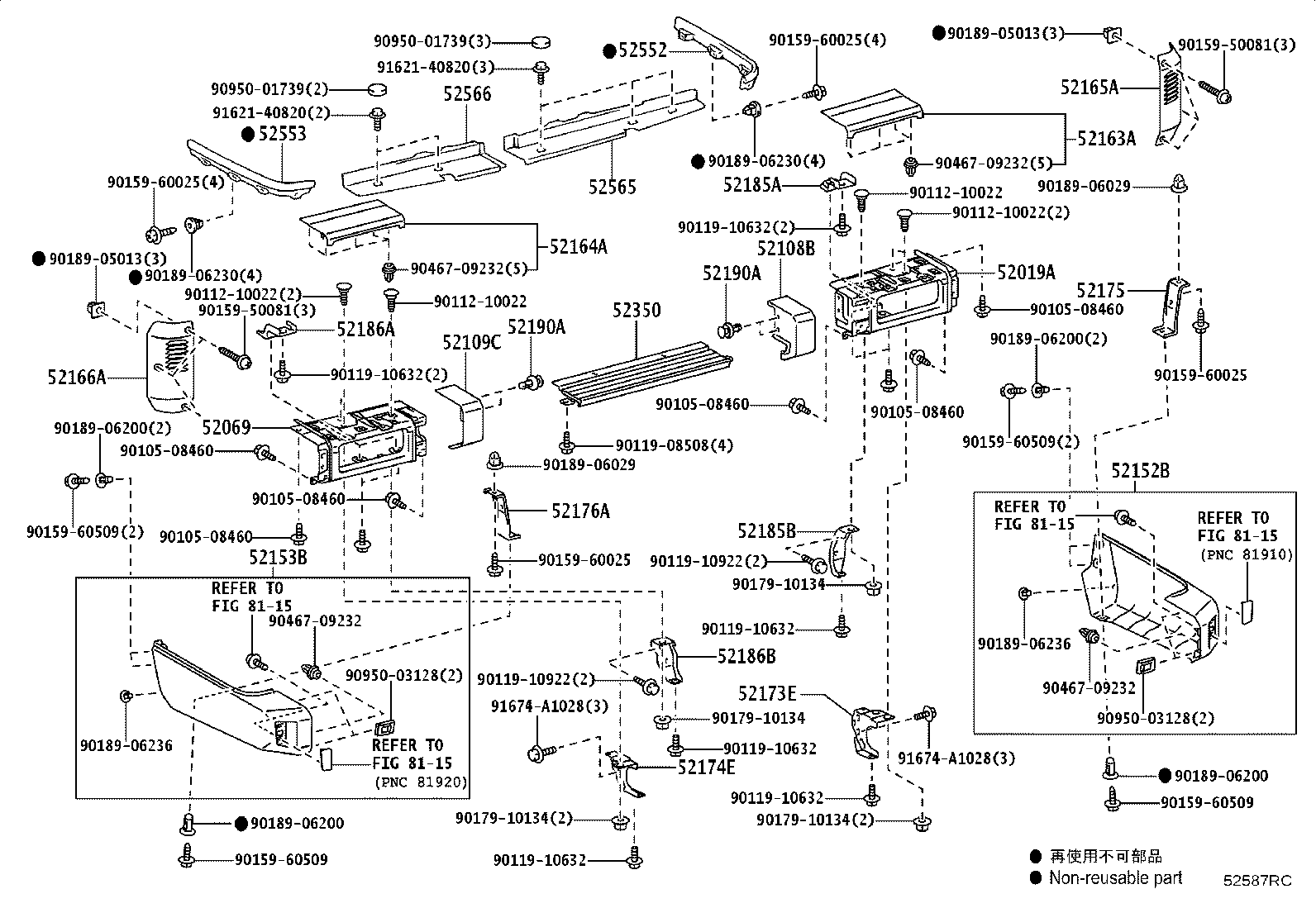

Rear Bumper & Bumper Stay
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52019A | Bar Sub-assy, Rear Bumper, RH |
| 52069 | Bar Sub-assy, Rear Bumper, LH |
| 52108B | Extension Sub-assy, Rear Bumper Side, RH |
| 52109C | Extension Sub-assy, Rear Bumper Side, LH |
| 52151C | Bolt, Round Head Square Neck(FOR REAR BUMPER) |
| 52152B | Extension, Rear Bumper, RH |
| 52153B | Extension, Rear Bumper, LH |
| 52163A | Plate, Rear Bumper, RH |
| 52164A | Plate, Rear Bumper, LH |
| 52165A | Cover, Rear Bumper, Upr RH |
| 52166A | Cover, Rear Bumper, Upr LH |
| 52173E | Bracket, Rear Bumper Bar, RH |
| 52174E | Bracket, Rear Bumper Bar, LH |
| 52175 | Bracket, Rear Bumper Arm Mounting |
| 52176A | Bracket, Rear Bumper Arm Mounting, LH |
| 52185A | Bracket, Rear Bumper Side, RH |
| 52185B | Bracket, Rear Bumper Side Mounting, RH |
| 52186A | Bracket, Rear Bumper Side, LH |
| 52186B | Bracket, Rear Bumper Side Mounting, LH |
| 52190A | Clip |
| 52350 | Step Assy, Rear Bumper |
| 52552 | Filler, Rear Bumper, RH |
| 52553 | Filler, Rear Bumper, LH |
| 52565 | Filler, Rear Bumper Extension, RH |
| 52566 | Filler, Rear Bumper Extension, LH |
| 75392J | Retainer, Outside Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
