Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11
Hood & Front Fender
35 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

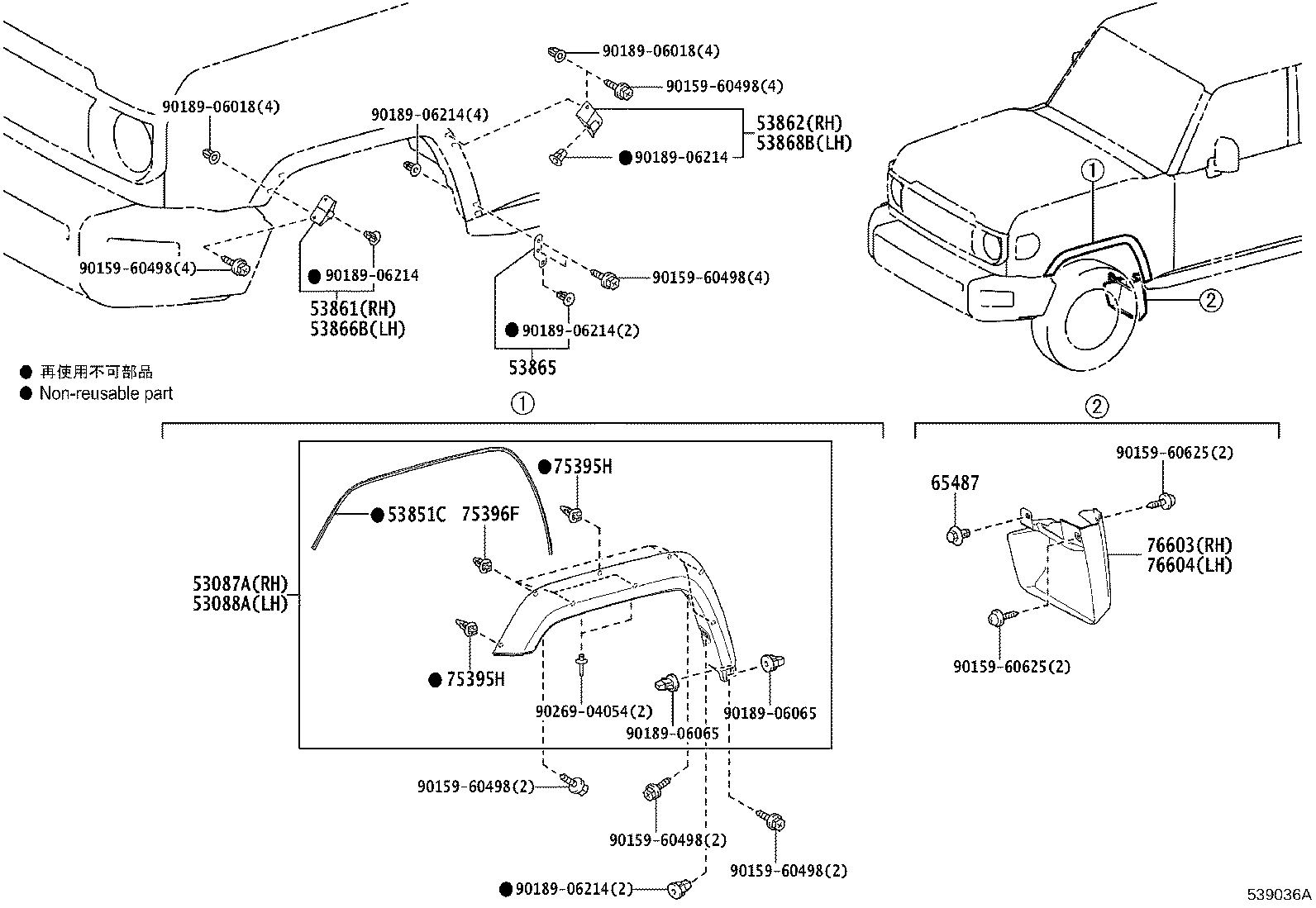

| 53087A | Extension Sub-assy, Front Wheel Opening, RH |
| 53088A | Extension Sub-assy, Front Wheel Opening, LH |
| 53145G | Clip, Radiator Grille |

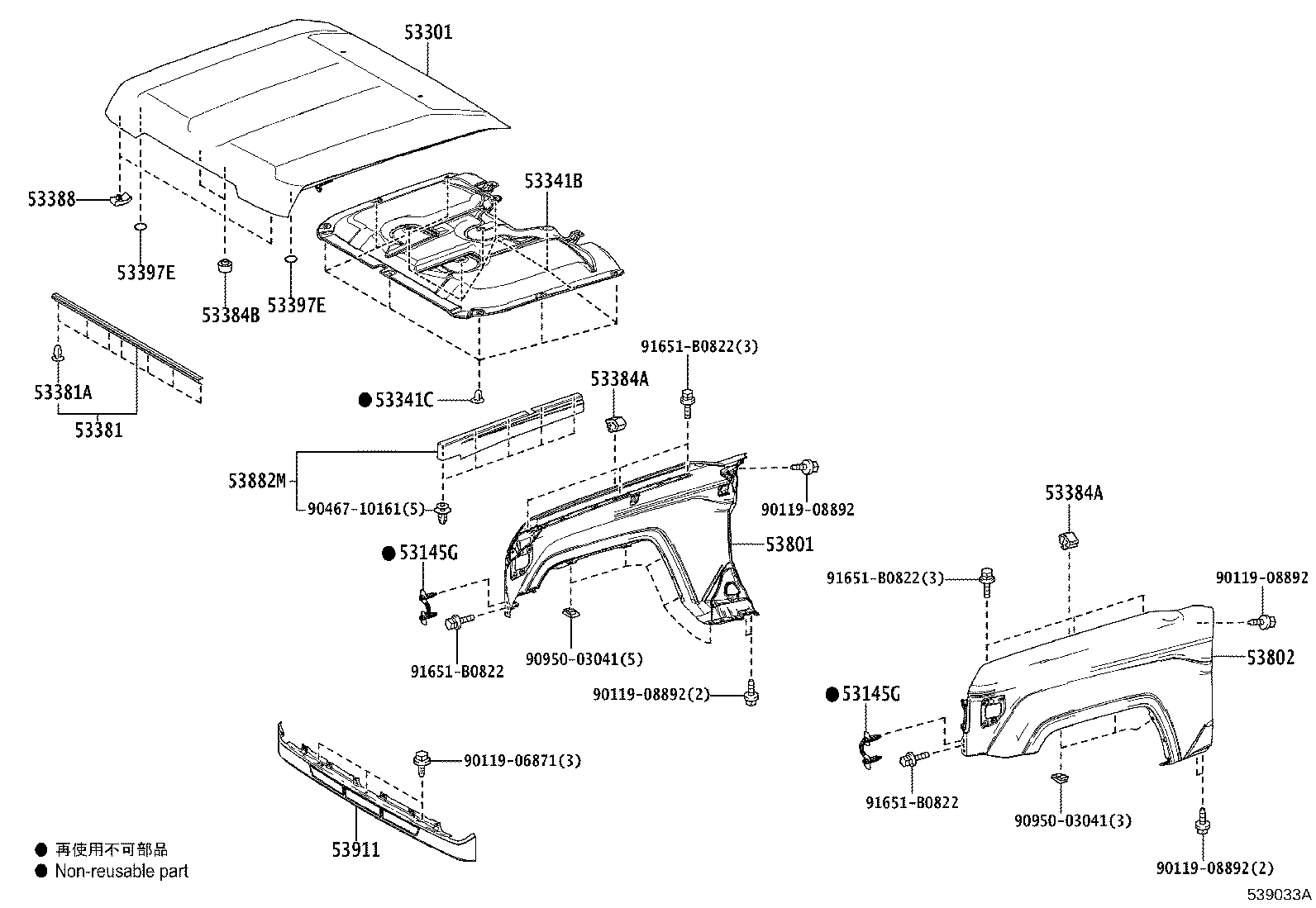

| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53382 | Bumper, Hood, Front |
| 53383C | Seal, Hood TO Cowl Top |
| 53384A | Bumper, Fender TO Hood |
| 53384B | Cushion, Hood, Center |
| 53386 | Bumper, Hood, Rear |
| 53388 | Cushion, Hood, Rear |
| 53397E | Seal, Radiator, Upper |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53851C | Pad, Front Wheel Opening Extension, NO.1 |
| 53861 | Bracket, Front Wheel Opening, NO.1 |
| 53862 | Bracket, Front Wheel Opening, NO.2 |
| 53865 | Bracket, Front Wheel Opening, NO.3 |
| 53866B | Bracket, Front Wheel Opening, NO.4 |
| 53868B | Bracket, Front Wheel Opening, NO.6 |

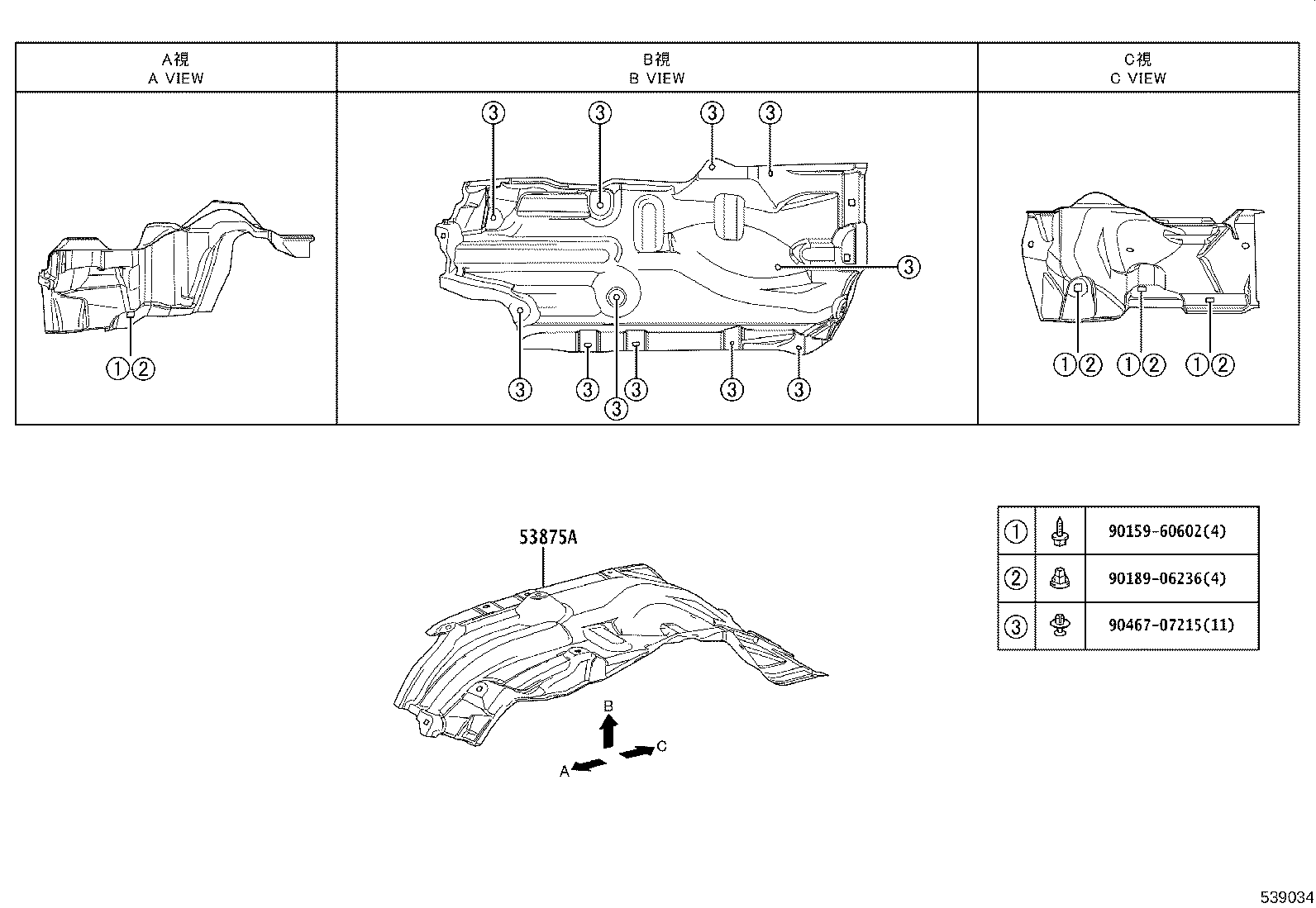

| 53875A | Liner, Front Fender, RH |

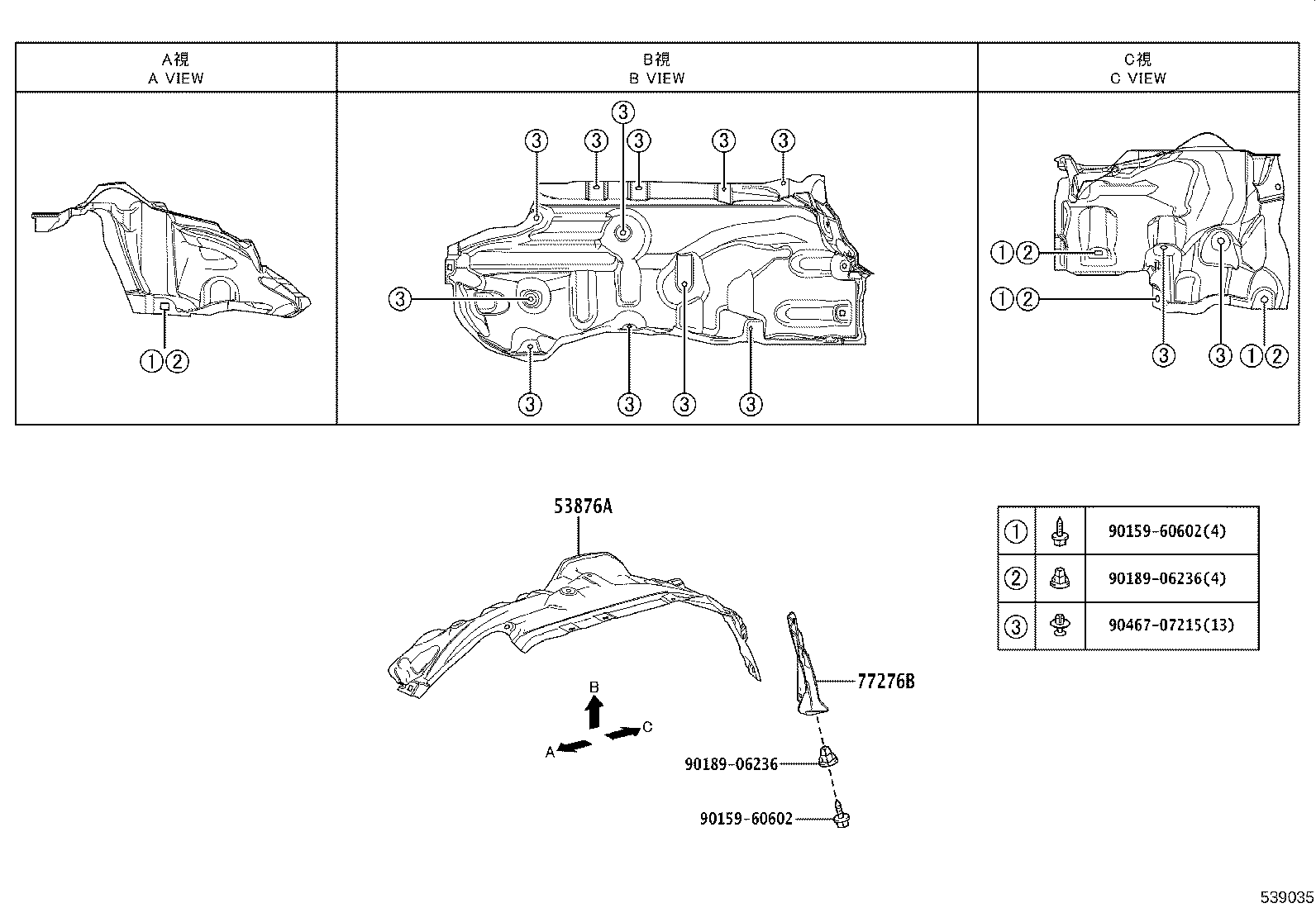

| 53876A | Liner, Front Fender, LH |
| 53882M | Seal, Front Fender |
| 53891K | Seal, Front Fender Splash Sheild, Front |
| 53911 | Panel, Front Valance |
| 65487 | Clip, Corner Protector |
| 75395H | Clip, Outside Moulding, NO.1 |
| 75396F | Clip, Outside Moulding, NO.2 |

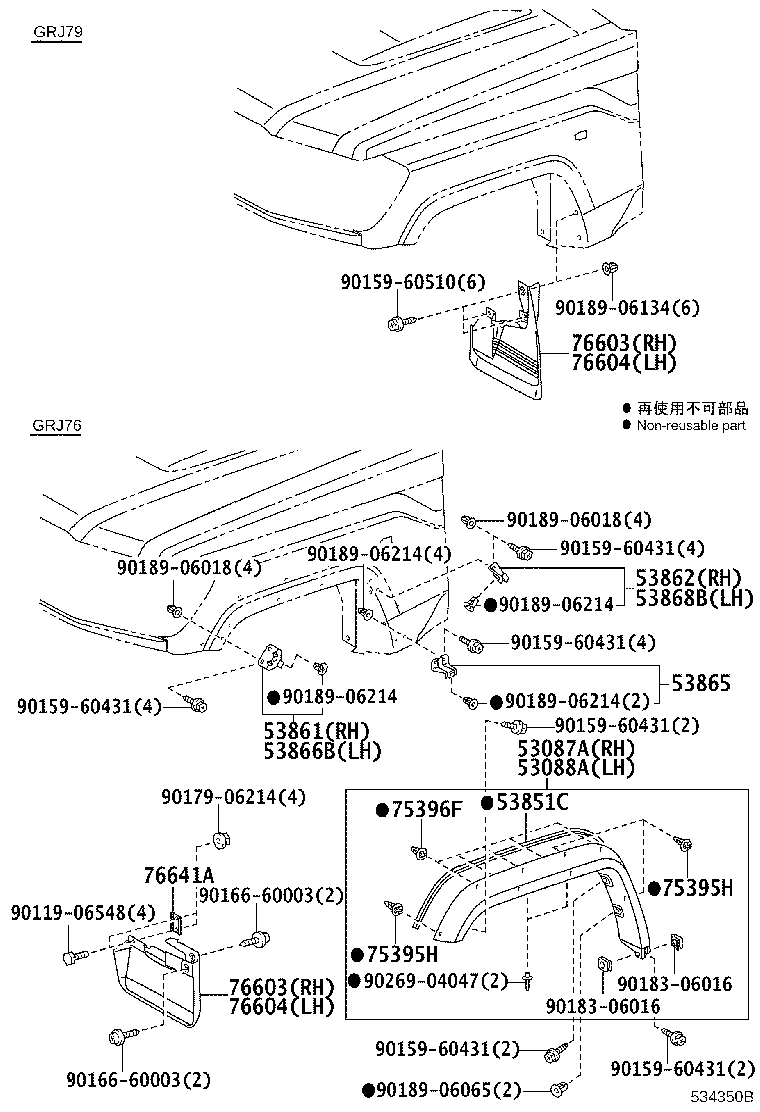

| 76603 | Mudguard Sub-assy, Front Fender, RH |
| 76604 | Mudguard Sub-assy, Front Fender, LH |
| 76641A | Bracket, Front Mudguard |
| 77276B | Protector, Fuel Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
