Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Member

15 part groups · 2 illustrations

Illustrations

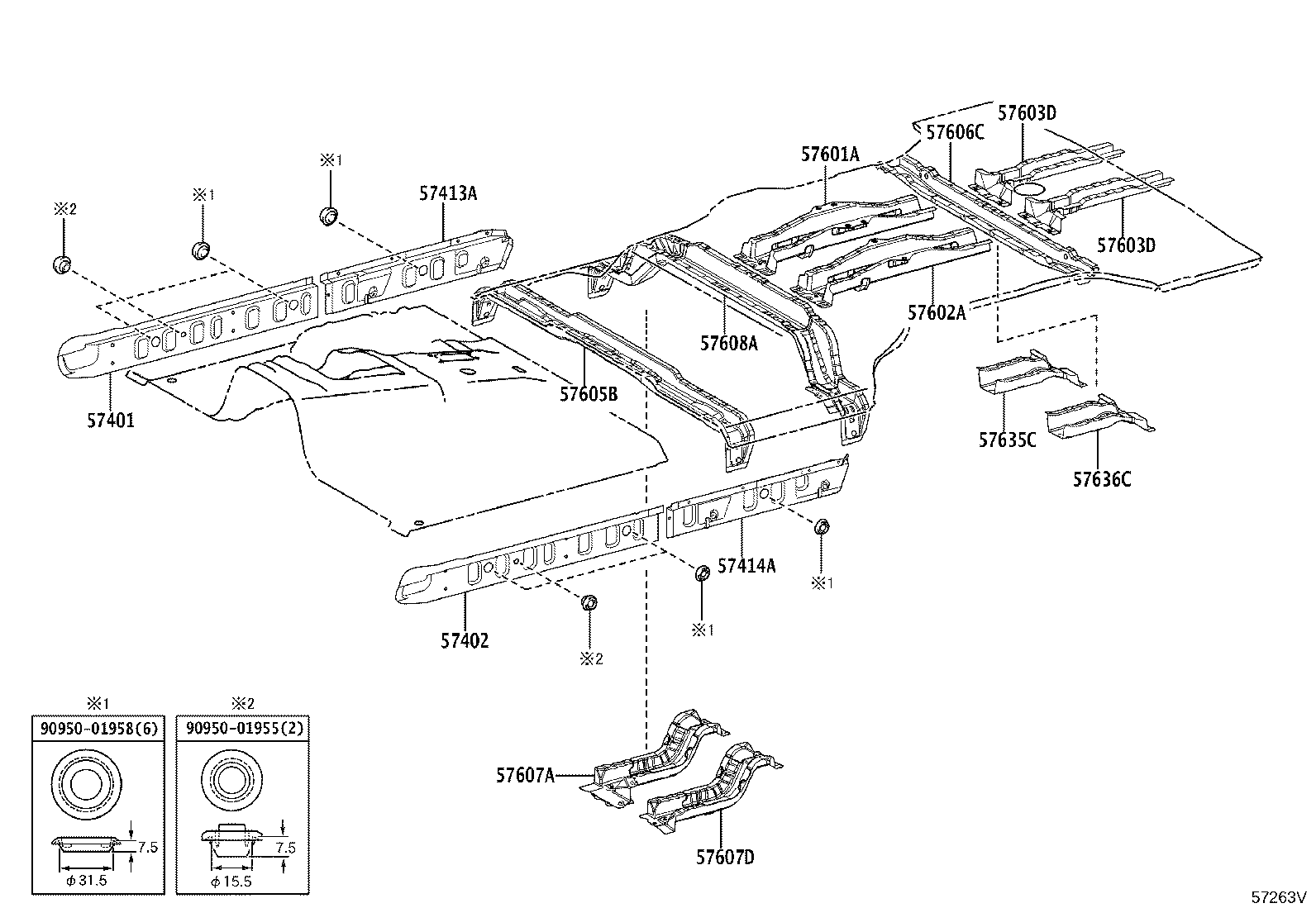

Figure 571017B 571017B 2014-08 → 2015-07 Figure 57263V 57263V 2023-11 → —

Part groups

PNCDescription
57401 Member Sub-assy, Main Floor Side, RH
57402 Member Sub-assy, Main Floor Side, LH
57413A Member, Floor Side, Inner Rear RH
57414A Member, Floor Side, Inner Rear LH
57601A Member Sub-assy, Rear Floor Side, RH
57602A Member Sub-assy, Rear Floor Side, LH
57603D Member Sub-assy, Rear Floor Side Rear, Center
57605B Member Sub-assy, Rear Floor Cross, NO.1
57606C Member Sub-assy, Rear Floor Cross, NO.2
57607A Member Sub-assy, Rear Floor Cross, NO.3
57607D Member Sub-assy, Rear Floor Cross, NO.3 LH
57608A Member Sub-assy, Rear Floor Cross, NO.4
57609A Member Sub-assy, Rear Floor Cross, NO.5
57635C Reinforcement, Rear Floor Side Member, Rear RH
57636C Reinforcement, Rear Floor Side Member, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
