Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11

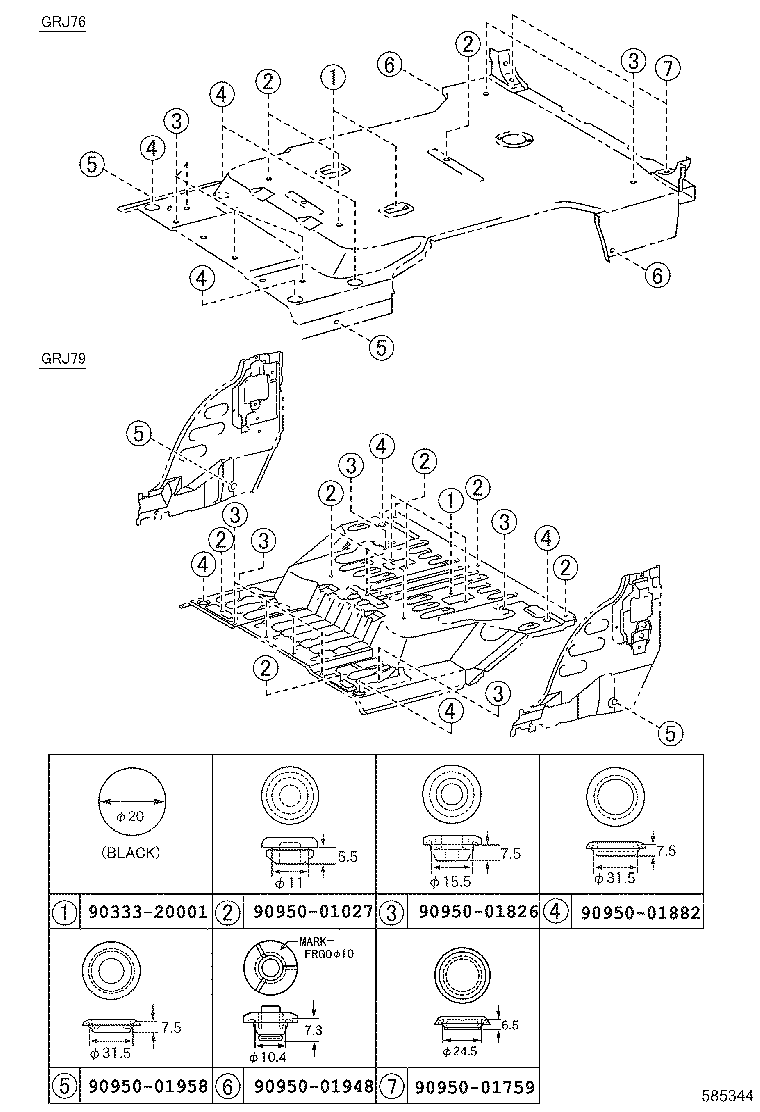

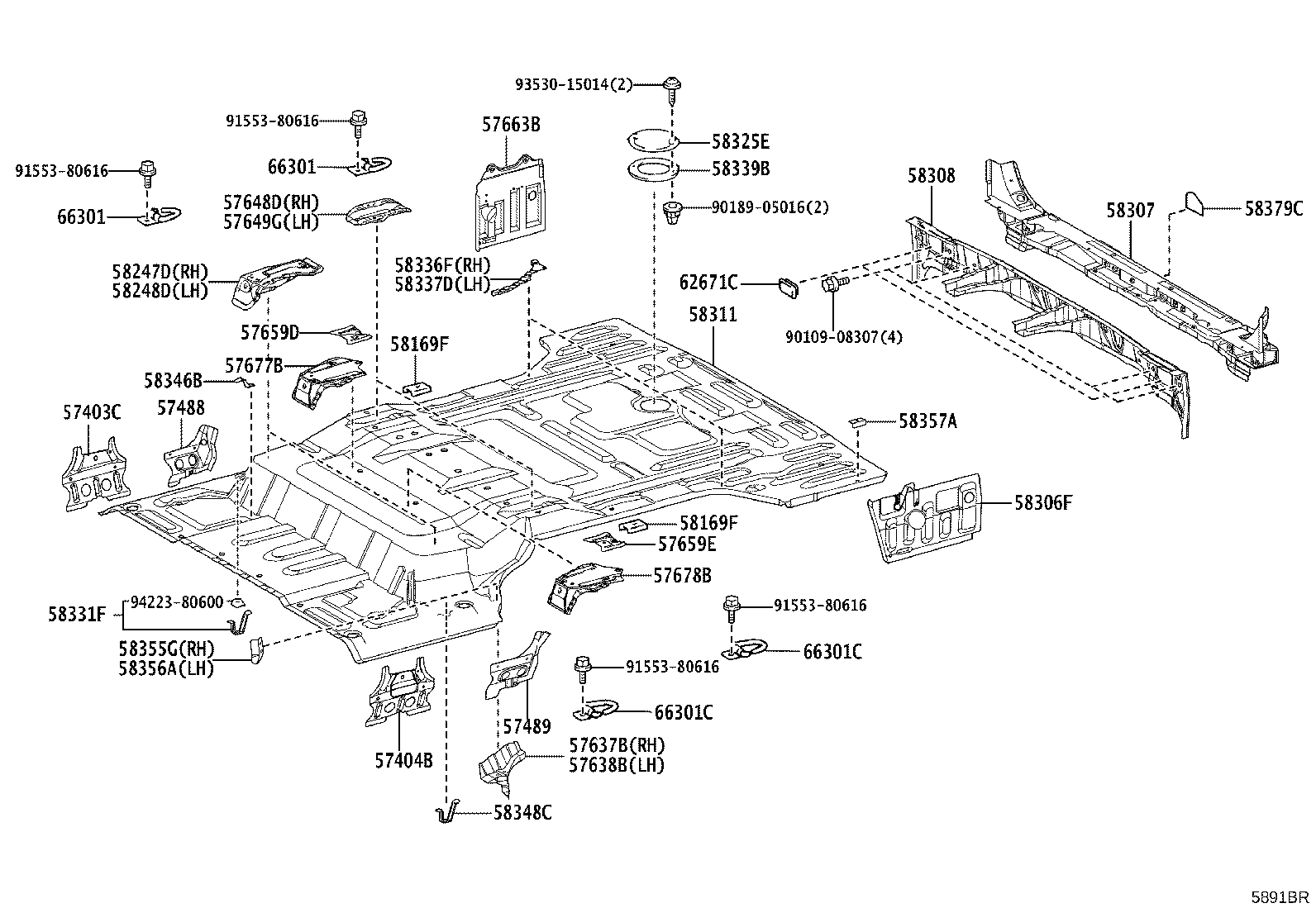

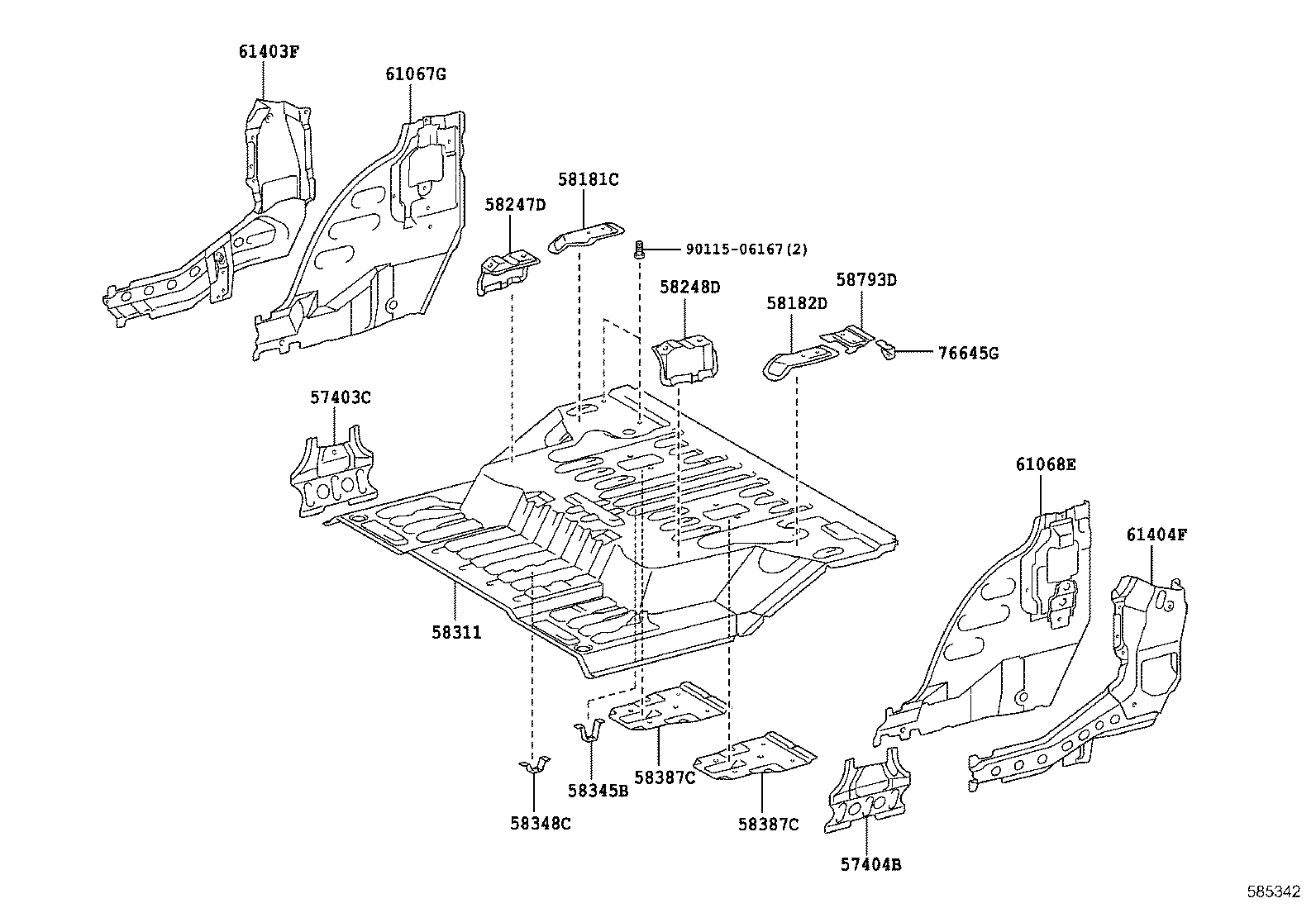

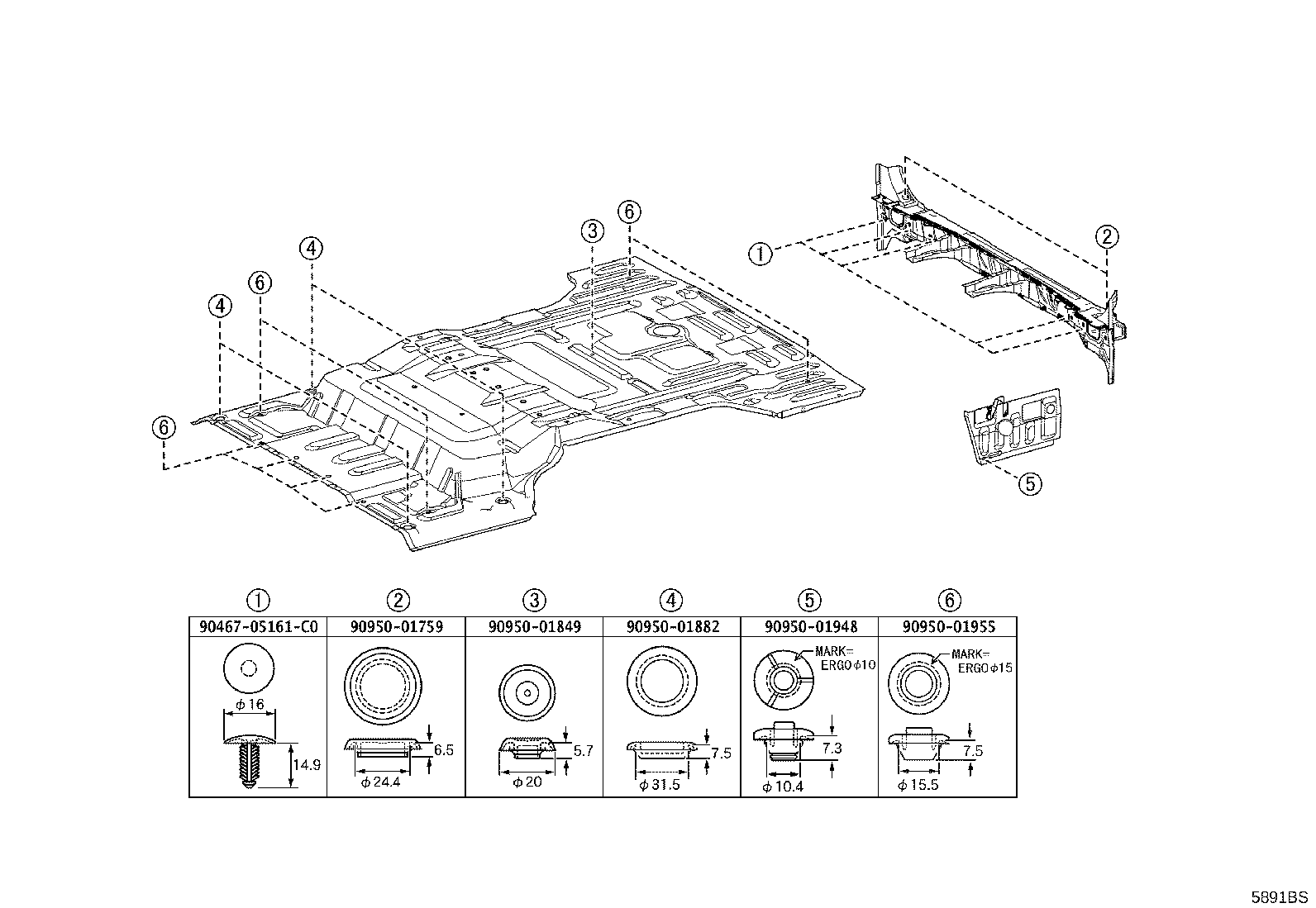

Rear Floor Panel & Rear Floor Member
49 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55161D | Bracket, Heater Mounting, RH |
| 57403C | Reinforce Sub-assy, Floor Side, Inner RH |
| 57404B | Reinforce Sub-assy, Floor Side, Inner LH |
| 57488 | Reinforcement, Floor Side Member, NO.2 RH |
| 57489 | Reinforcement, Floor Side Member, NO.2 LH |
| 57637B | Reinforcement, Rear Floor Side Member, Center RH |
| 57638B | Reinforcement, Rear Floor Side Member, Center LH |
| 57648D | Reinforce, Rear Floor Side Member, Rear Upper RH |
| 57649G | Reinforce, Rear Floor Side Member, Rear Upper LH |
| 57659D | Bracket, Exhaust Pipe Mounting, NO.4 |
| 57659E | Bracket, Exhaust Pipe Mounting, NO.4 LH |
| 57663B | Panel, Rear Floor Side, Rear RH |
| 57677B | Reinforcement, Rear Floor Crossmember, NO.6 RH |
| 57678B | Reinforcement, Rear Floor Crossmember, NO.6 LH |
| 58169F | Retainer, Rear Heater Mounting |
| 58181C | Retainer, Seat Rail, Front RH |
| 58182D | Retainer, Seat Rail, Front LH |
| 58193E | Bracket, Fuel Pipe |
| 58247D | Bracket, Rear Seat Hinge, Outer RH |
| 58248D | Bracket, Rear Seat Hinge, Outer LH |
| 58266B | Bracket, Fuel Tube Clamp |
| 58267A | Bracket, Fuel Tube Clamp, NO.2 |
| 58306F | Panel Sub-assy, Rear Floor Side, LH |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58308 | Panel Sub-assy, Body Lower Back, Inner |
| 58311 | Pan, Rear Floor |
| 58325E | Cover, Rear Floor Service Hole |
| 58331F | Bracket, Rear Floor Heat Insulator, NO.3 |
| 58336F | Reinforcement, Rear Floor Pan, RH |
| 58337D | Reinforcement, Rear Floor Pan, LH |
| 58338A | Reinforcement, Rear Floor Pan, NO.2 |
| 58339B | Packing, Rear Floor Service Hole |
| 58345B | Bracket, Rear Floor Heat Insulator, NO.1 |
| 58346B | Bracket, Rear Floor Heat Insulator, NO.3 |
| 58348C | Bracket, Rear Floor Heat Insulator, NO.3 |
| 58355G | Reinforcement, Floor Side Plate, RH |
| 58356A | Reinforcement, Floor Side Plate, LH |
| 58357A | Reinforcement, Jack Carrier |
| 58379C | Protector, Body Lower Back |
| 58387C | Plate, Rear Floor Finish |
| 58793D | Bracket, Jack Carrier |
| 61067G | Bracket Sub-assy, Rear Susp Bumper, RH |
| 61068E | Bracket Sub-assy, Rear Susp Bumper, LH |
| 61403F | Reinforce Sub-assy, Rocker, Outer RH |
| 61404F | Reinforce Sub-assy, Rocker, Outer LH |
| 62671C | Cover, Lower Back Panel |
| 66301 | Hook Sub-assy, Rope |
| 66301C | Hook Sub-assy, Rope, LH |
| 76645G | Bracket, Quarter Panel Rear Mudguard |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
