Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11

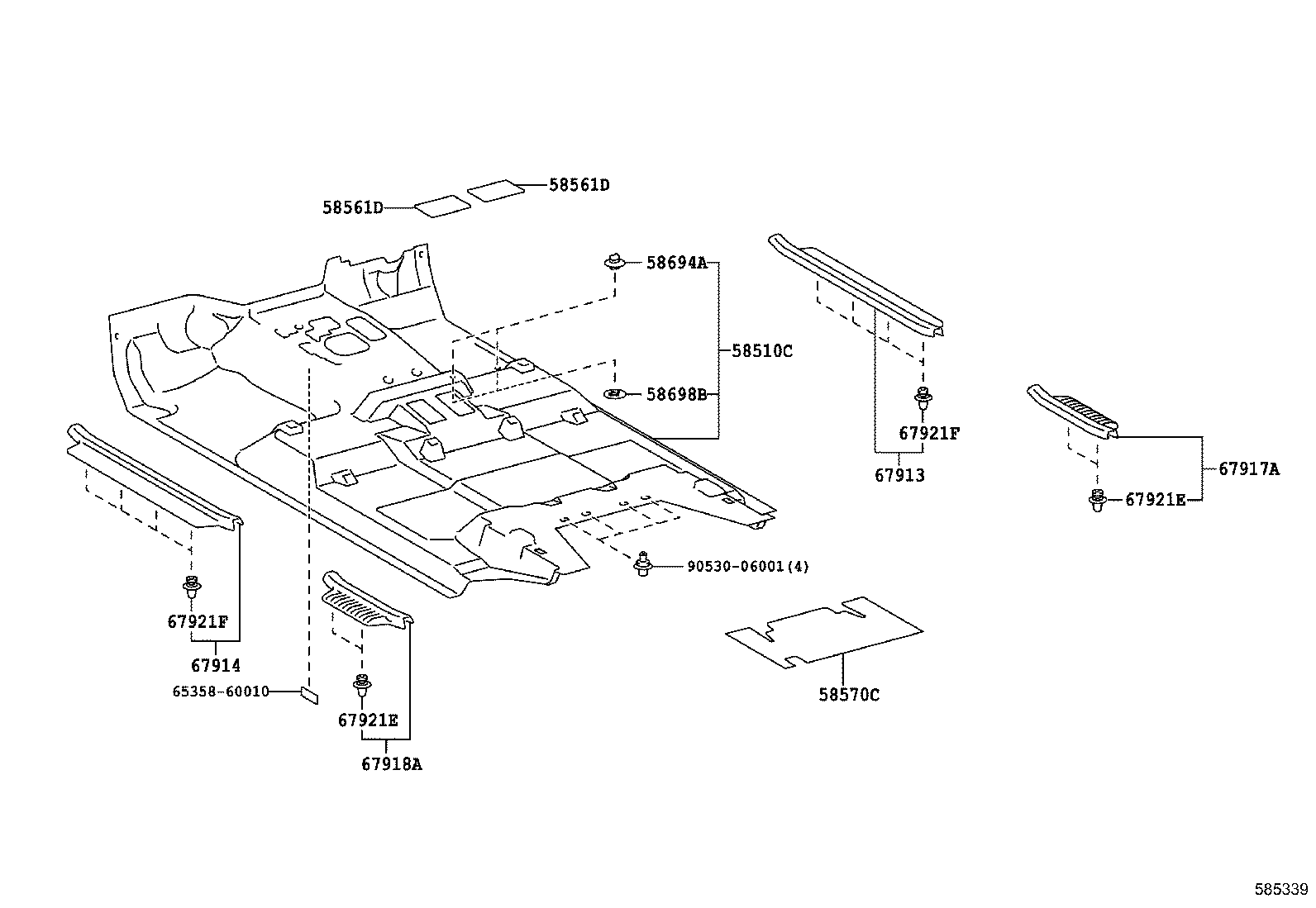

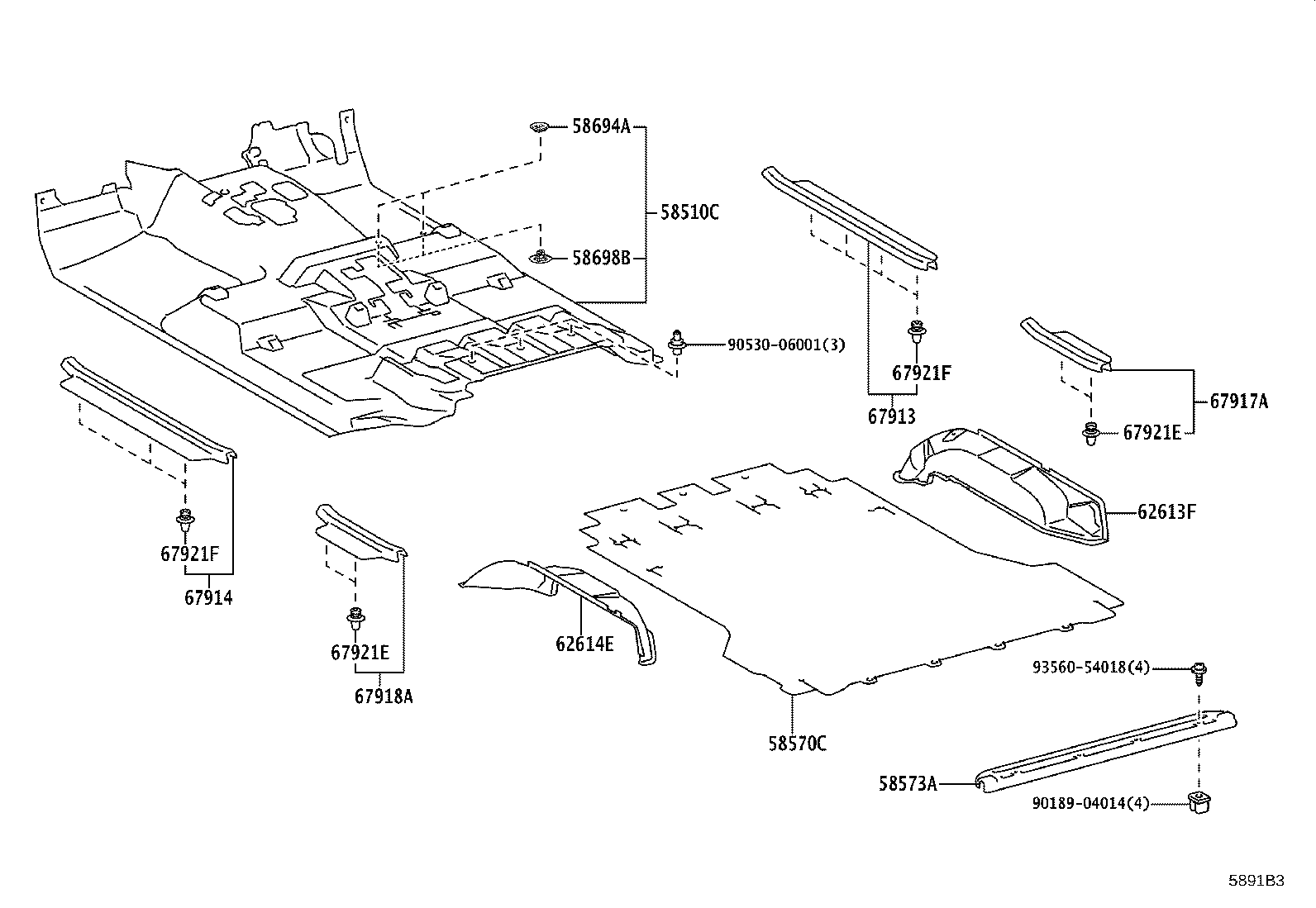

Floor Mat & Silencer Pad
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58510C | Carpet Assy, Front Floor, Front |
| 58561D | Pad, Roof Silencer, NO.1 |
| 58570C | Carpet Assy, Rear Floor |
| 58573A | Plate, Rear Floor Mat Support |
| 58694A | Plate, Mat Set, Upper |
| 58698B | Plate, Mat Set, Lower |
| 62613F | Cover, Quarter Wheel House, RH |
| 62614E | Cover, Quarter Wheel House, LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67921E | Retainer, Rear Door Scuff Plate |
| 67921F | Retainer, Front Door Scuff Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
