Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 3 illustrations

Illustrations

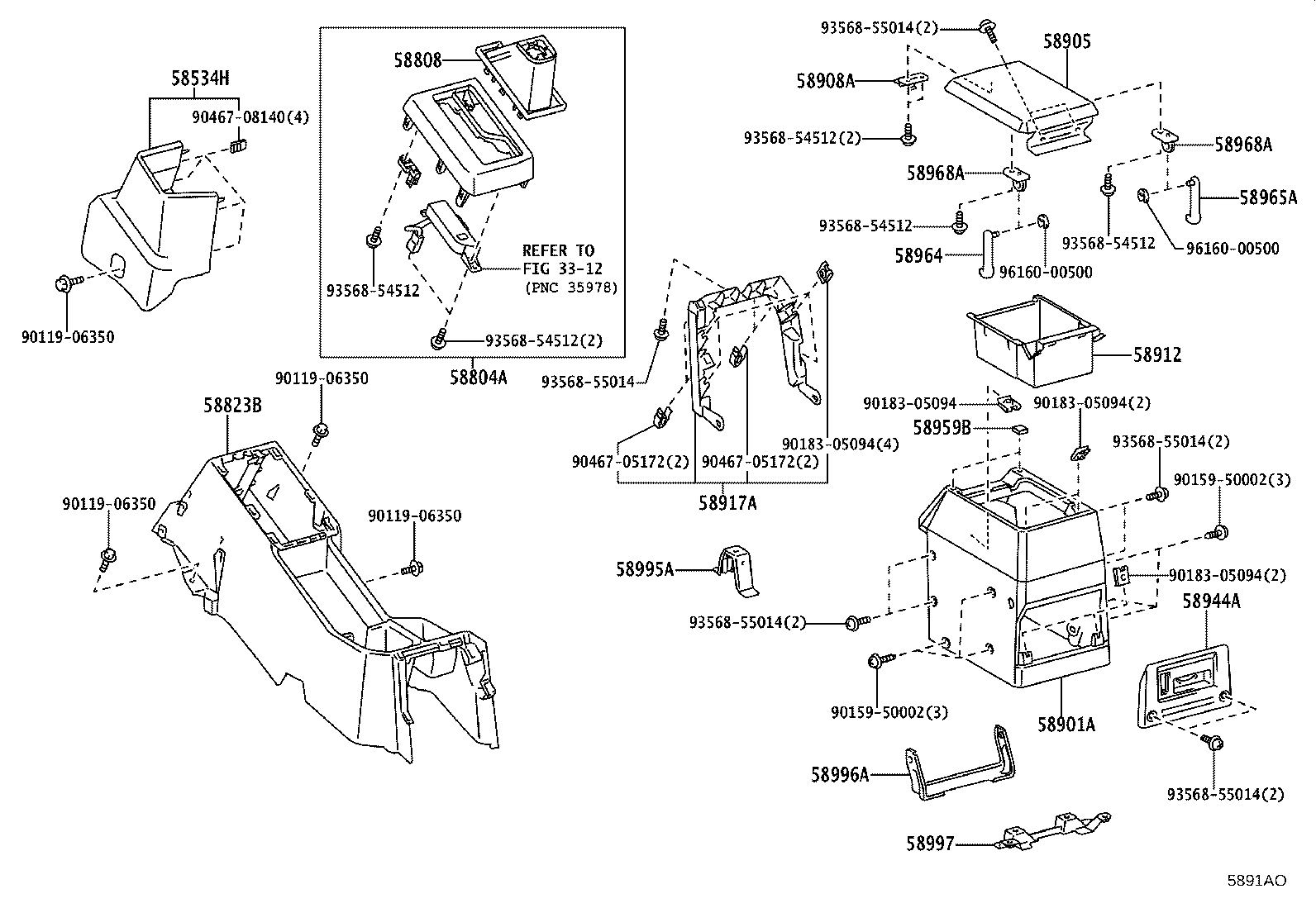

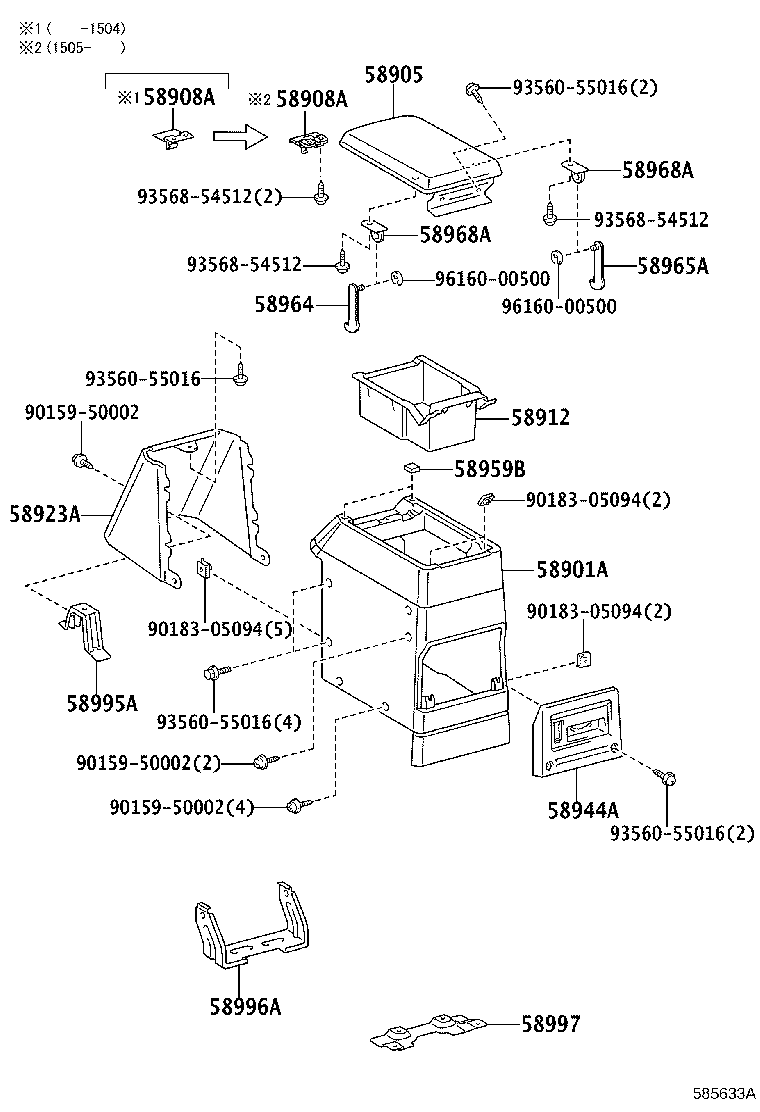

Figure 583623 583623 2014-08 → 2015-07 Figure 585633A 585633A 2014-08 → 2015-07 Figure 5891AO 5891AO 2023-11 → —

Part groups

PNCDescription
58534H Cover, Floor Carpet, Center LH
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58811B Box, Console
58823B Box, Console Compartment
58901A Box Sub-assy, Console, Rear
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58912 Box, Rear Console, NO.2
58917A Cover, Console Box, Rear
58923A Panel, Console Rear End
58944A Cover, Console, Rear
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58968A Bracket, Console Door Stopper
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
