Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

35 part groups · 3 illustrations

Illustrations

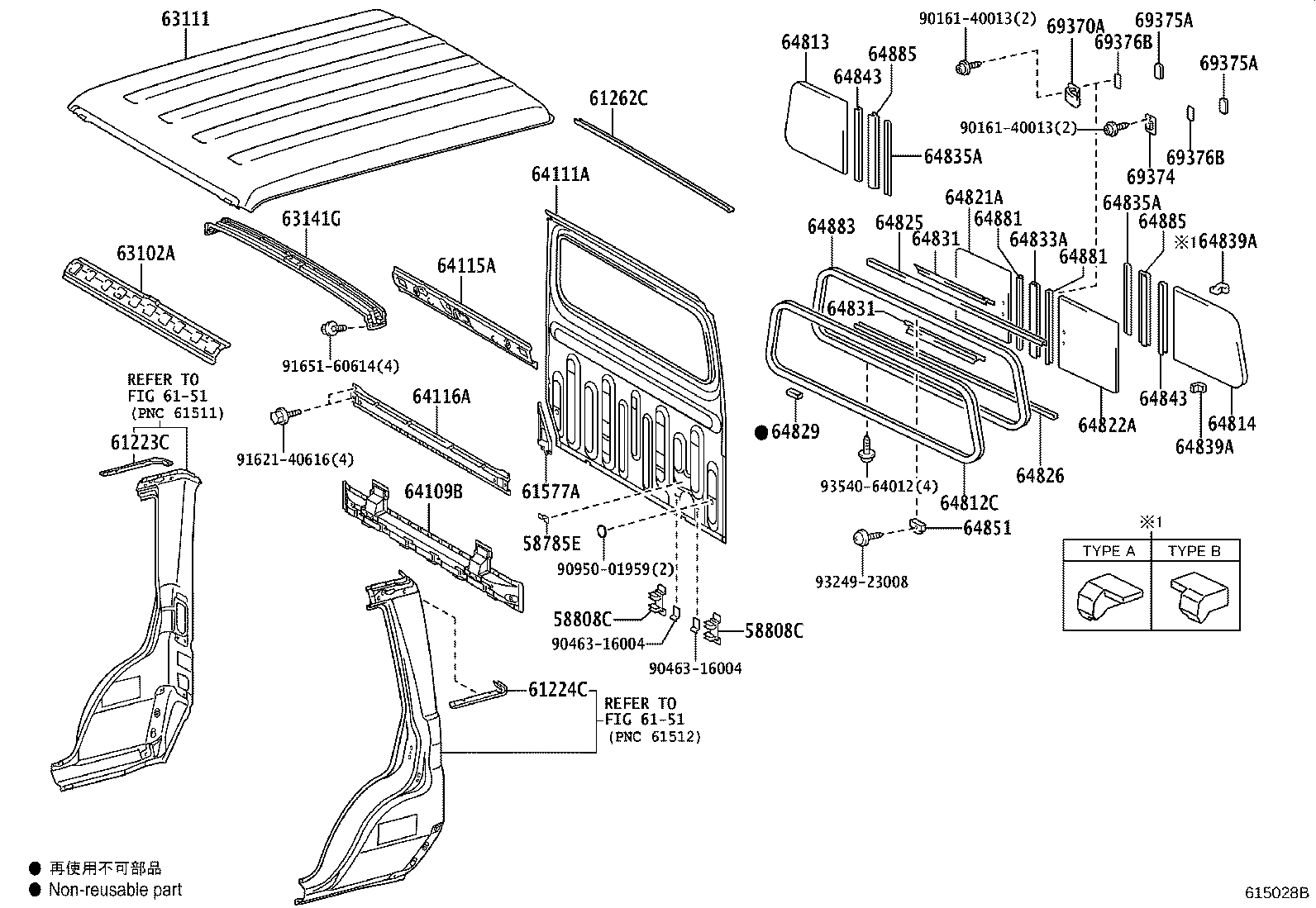

Figure 612801C 612801C 2014-08 → 2015-07 Figure 612801C 612801C 2023-11 → — Figure 615028B 615028B 2014-08 → 2015-07

Part groups

PNCDescription
58785E Bracket, Tool Bag Band
58808C Spring Sub-assy, Juck Handle
61223C Channel, Roof Drip Side, RH
61224C Channel, Roof Drip Side, LH
61262C Channel, Roof Drip, Rear
61577A Plate, Cab Rear Pillar, Lower RH
63102A Panel Sub-assy, Windshield Header
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63141G Reinforcement, Roof Panel, NO.1
64109B Reinforcement Sub-assy, Cab Back, Lower
64111A Panel, Back
64115A Reinforcement, Back, Upper
64116A Reinforcement, Back, Lower
64812C Weatherstrip, Back Window Glass
64813 Glass, Back Window Corner, RH
64814 Glass, Back Window Corner, LH
64821A Glass, Back Window Slide, RH
64822A Glass, Back Window Slide, LH
64825 Run, Back Window Channel, Upper
64826 Run, Back Window Channel, Lower
64829 Film, Back Window Frame
64831 Weatherstrip, Back Window Glass
64833A Weatherstrip, Back Window Center Channel
64835A Weatherstrip, Back Window Glass, Center
64839A Packing, Back Window
64843 Weatherstrip, Back Window Channel
64851 Stop, Back Window Slide Glass
64881 Channel, Back Window Glass
64883 Frame, Back Window
64885 Frame, Back Window Vertical
69370A Lock Assy, Back Window
69374 Catch, Back Window Lock
69375A Retainer, Back Window Lock
69376B Packing, Back Window Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
