Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11

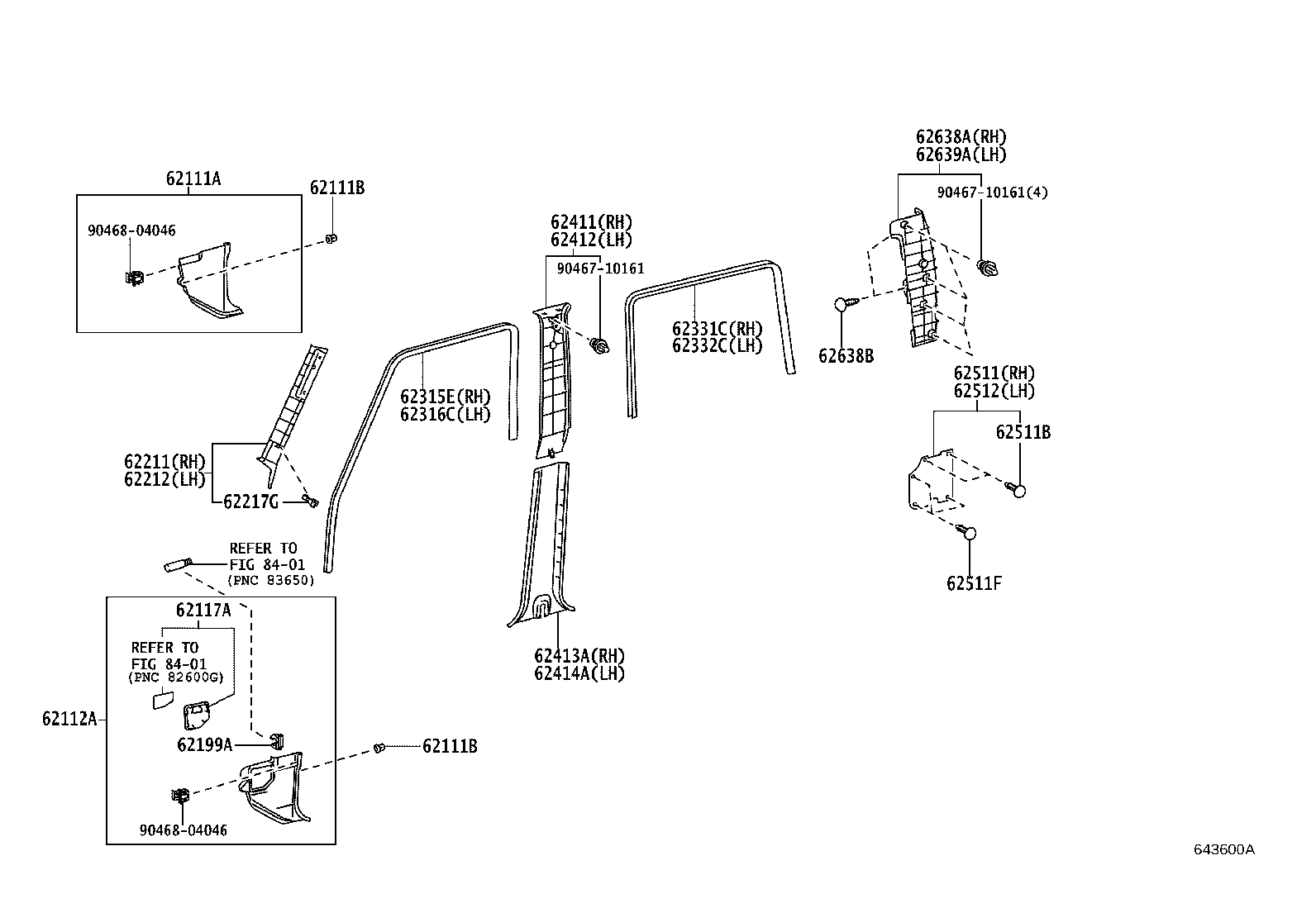

Inside Trim Board
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62199A | Holder, Fusee |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62315E | Weatherstrip, Front Door Opening Trim, Rear RH |
| 62316C | Weatherstrip, Front Door Opening Trim, Rear LH |
| 62331C | Weatherstrip, Rear Door Opening Trim, RH |
| 62332C | Weatherstrip, Rear Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511F | Retainer (FOR QUARTER INSIDE TRIM BOARD) |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 62638A | Garnish, Quarter Pillar, RH |
| 62638B | Clip |
| 62639A | Garnish, Quarter Pillar, LH |
| 62821B | Glille, Room Ventilation |
| 64370 | Grille Assy, Rear Speaker |
| 64707C | Knob, Jack Cover |
| 64707D | Cover Sub-assy, Quarter Trim Jack |
| 64739 | Cover, Deck Trim Side Washer |
| 64778E | Protecter, Quarter Inner, NO.1 |
| 67771H | Retainer, Door Trim |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
