Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11

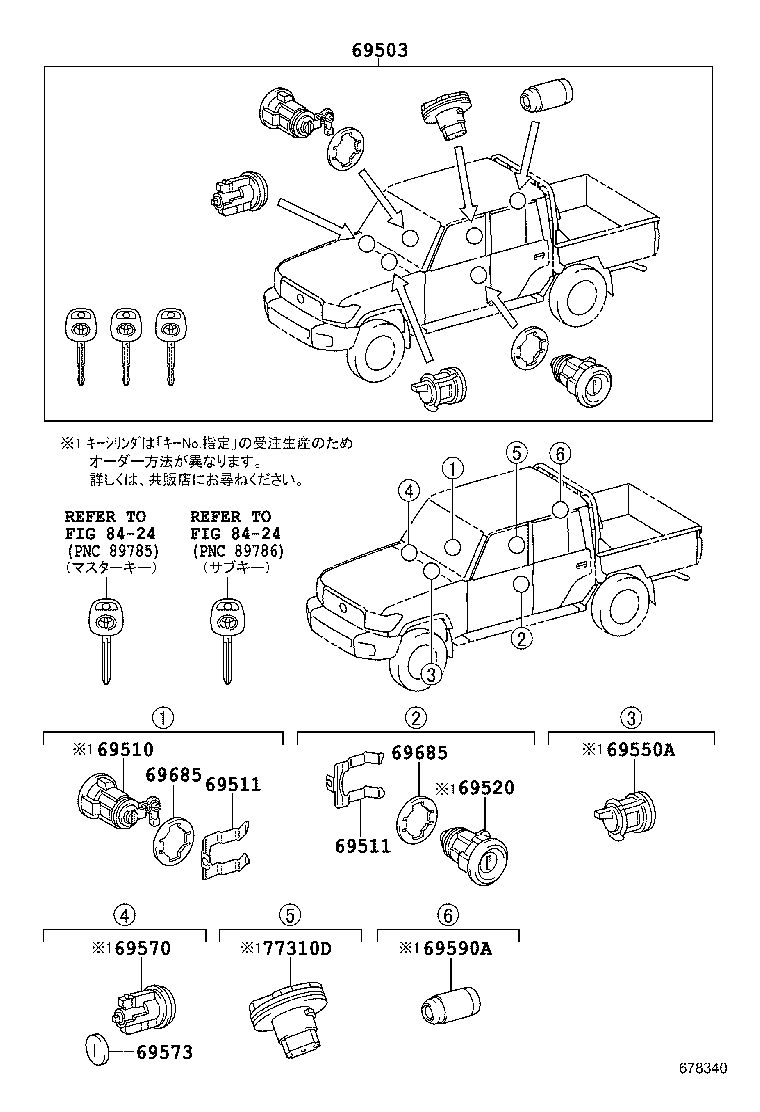

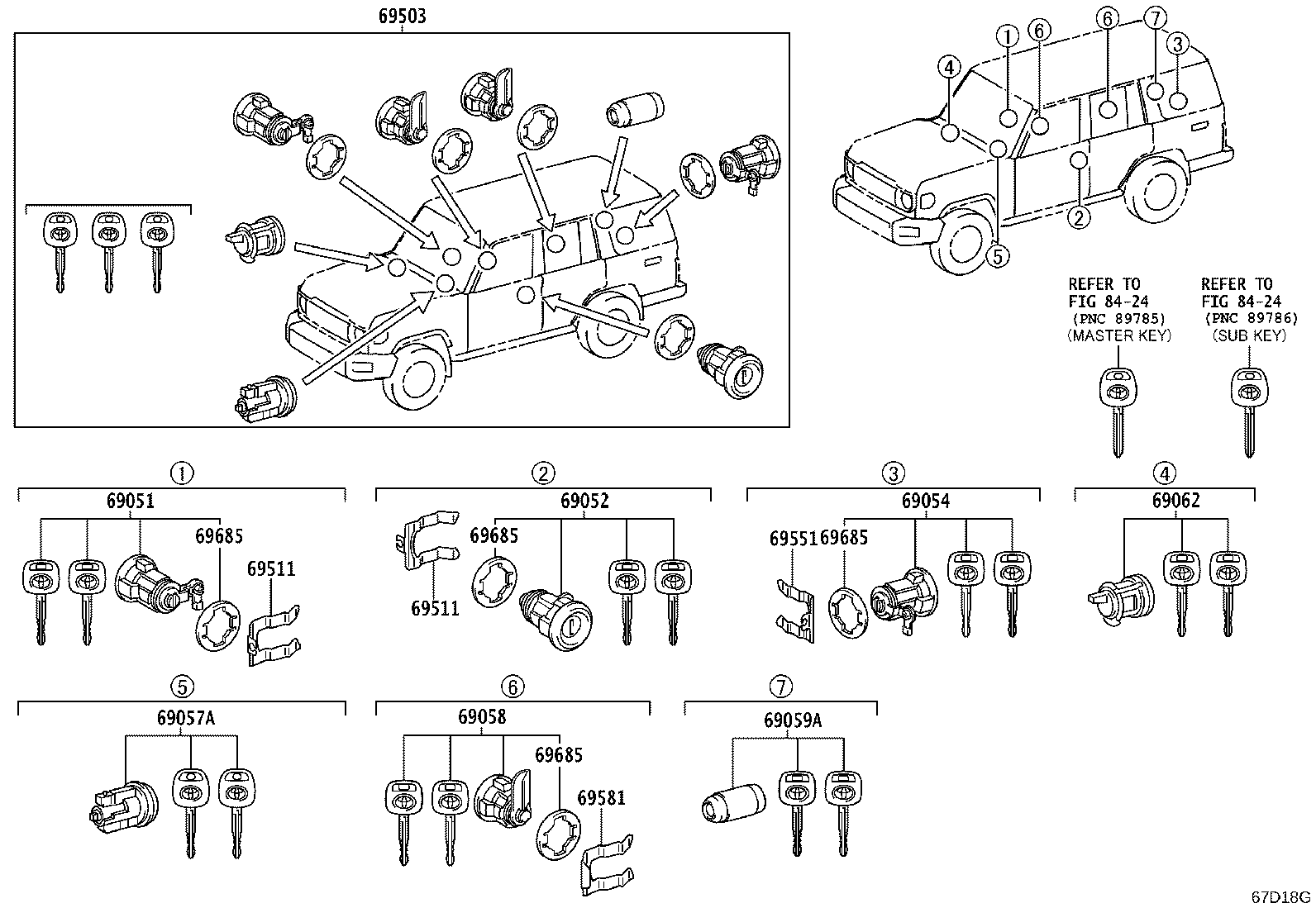

Lock Cylinder Set
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69054 | Cylinder & Key Set, Back Door Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69058 | Cylinder & Key Set, Fuel Filler Lid |
| 69059A | Cylinder & Key Set, Spare Wheel Lock |
| 69062 | Cylinder & Key Set, Glove Compartment Lock |
| 69503 | Cylinder Set, Lock |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69511 | Retainer, Front Door Lock Cylinder |
| 69520 | Cylinder Assy, Front Door Lock, LH |
| 69550A | Cylinder Assy, Glove Compartment Door Lock |
| 69551 | Retainer, Back Door Lock Cylinder |
| 69560 | Cylinder Assy, Back Door Lock |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 69573 | Pad, Ignition Switch Lock Cylinder |
| 69580 | Cylinder Assy, Fuel Filler Opening Lid |
| 69581 | Retainer, Fuel Filler Lid Cylinder |
| 69590A | Cylinder Assy, Spare Wheel Lock |
| 69685 | Pad, Lock Cylinder |
| 77310D | Cap Assy, Fuel Tank |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
