Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

155 part groups · 8 illustrations

Illustrations

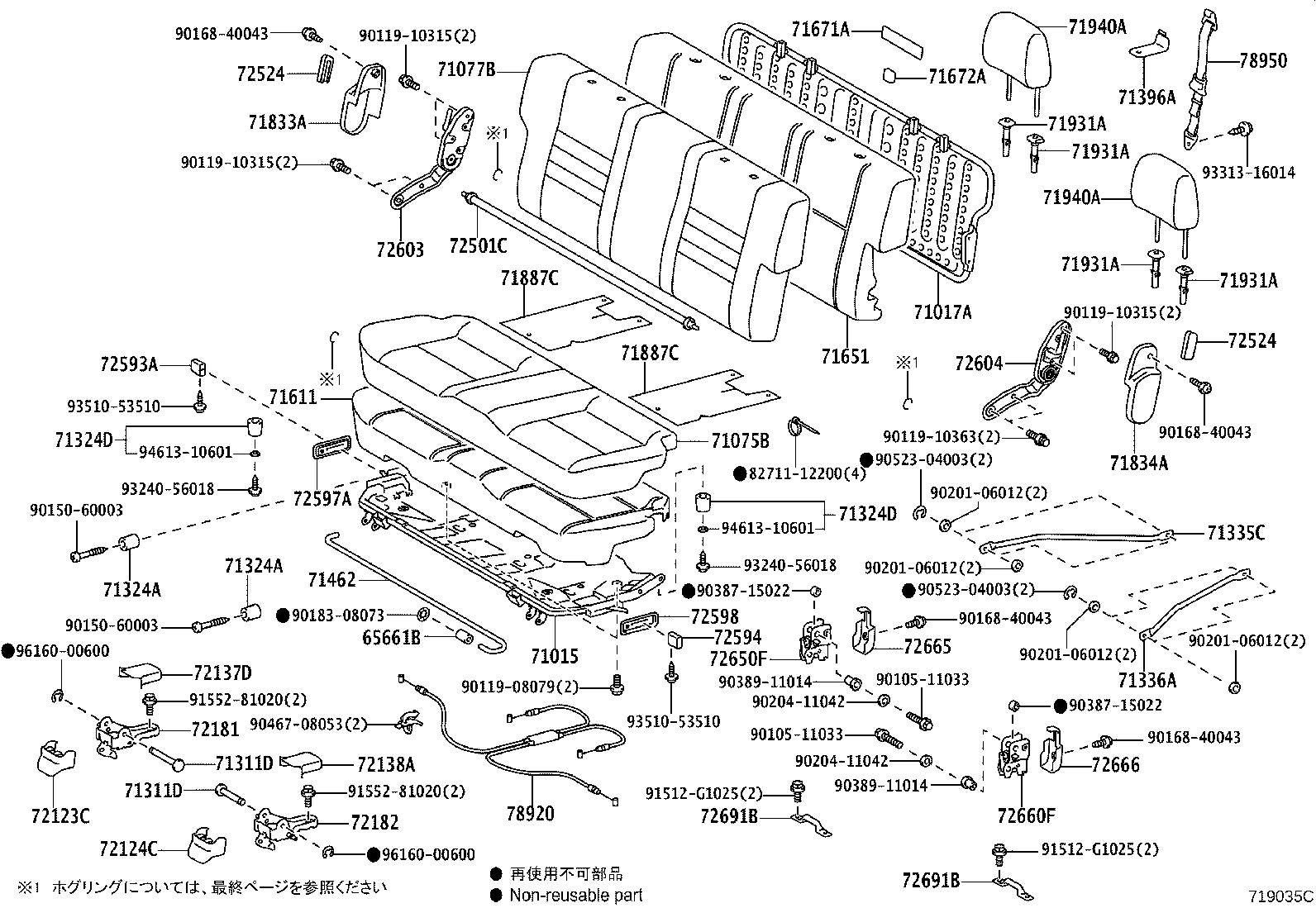

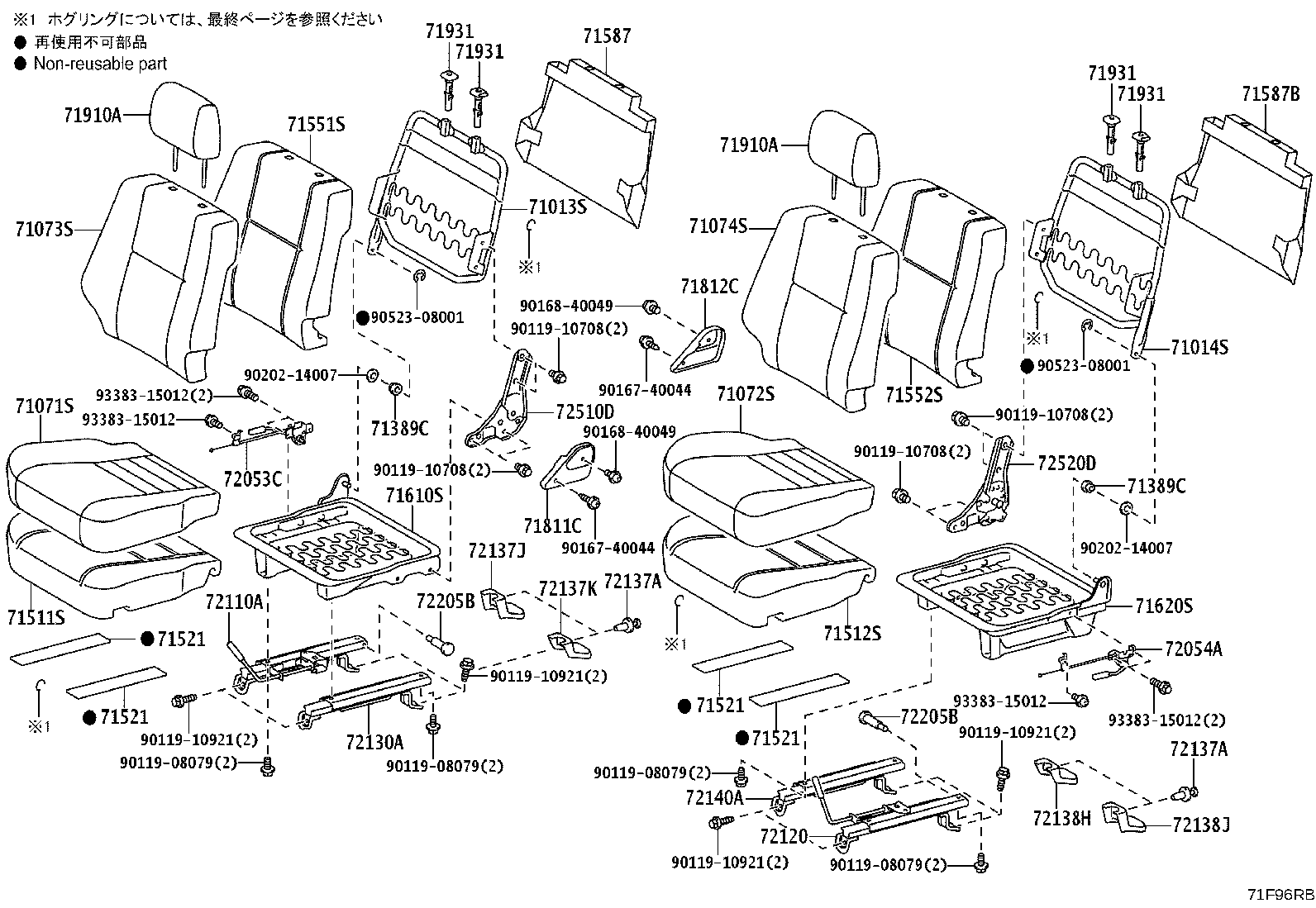

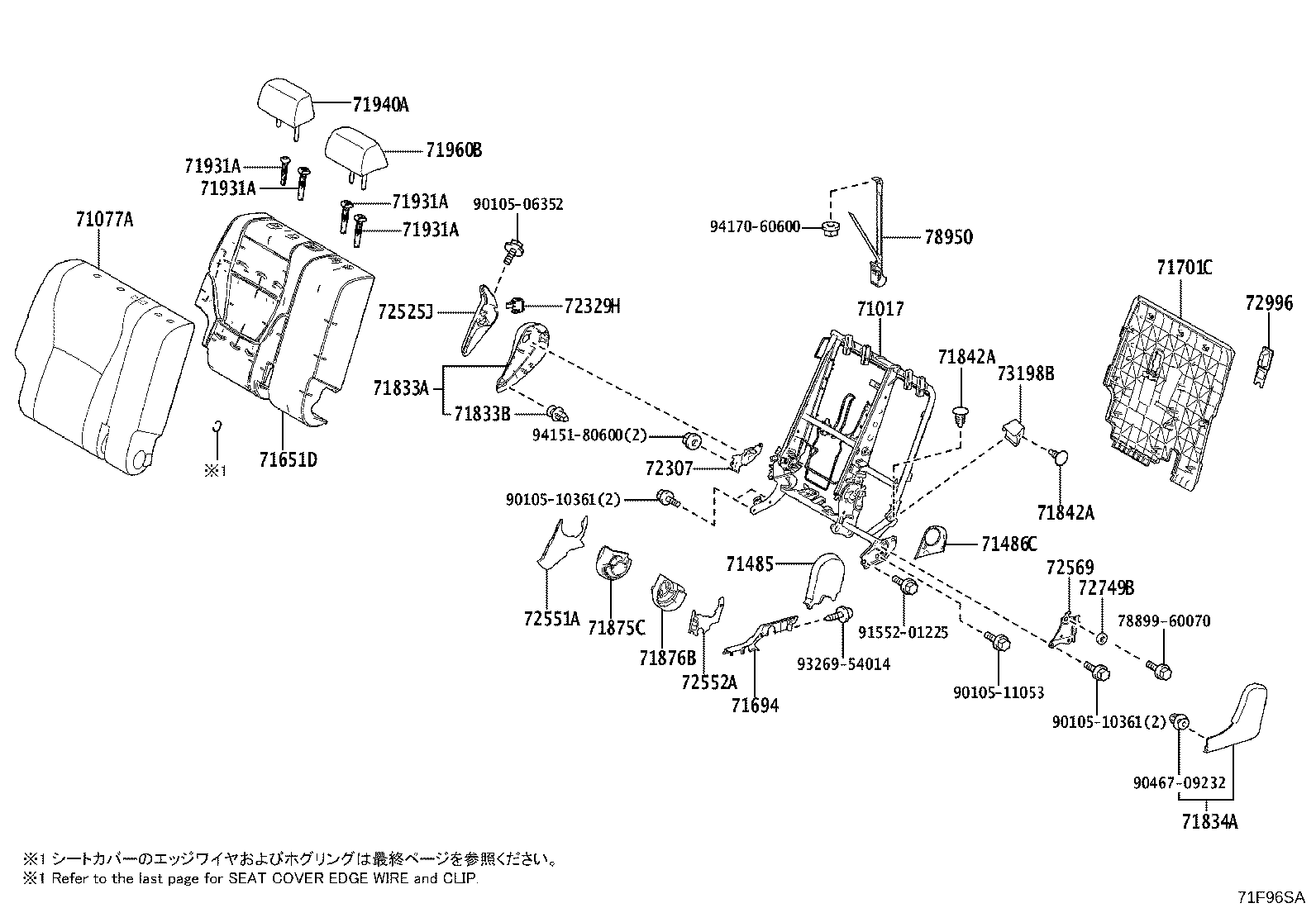

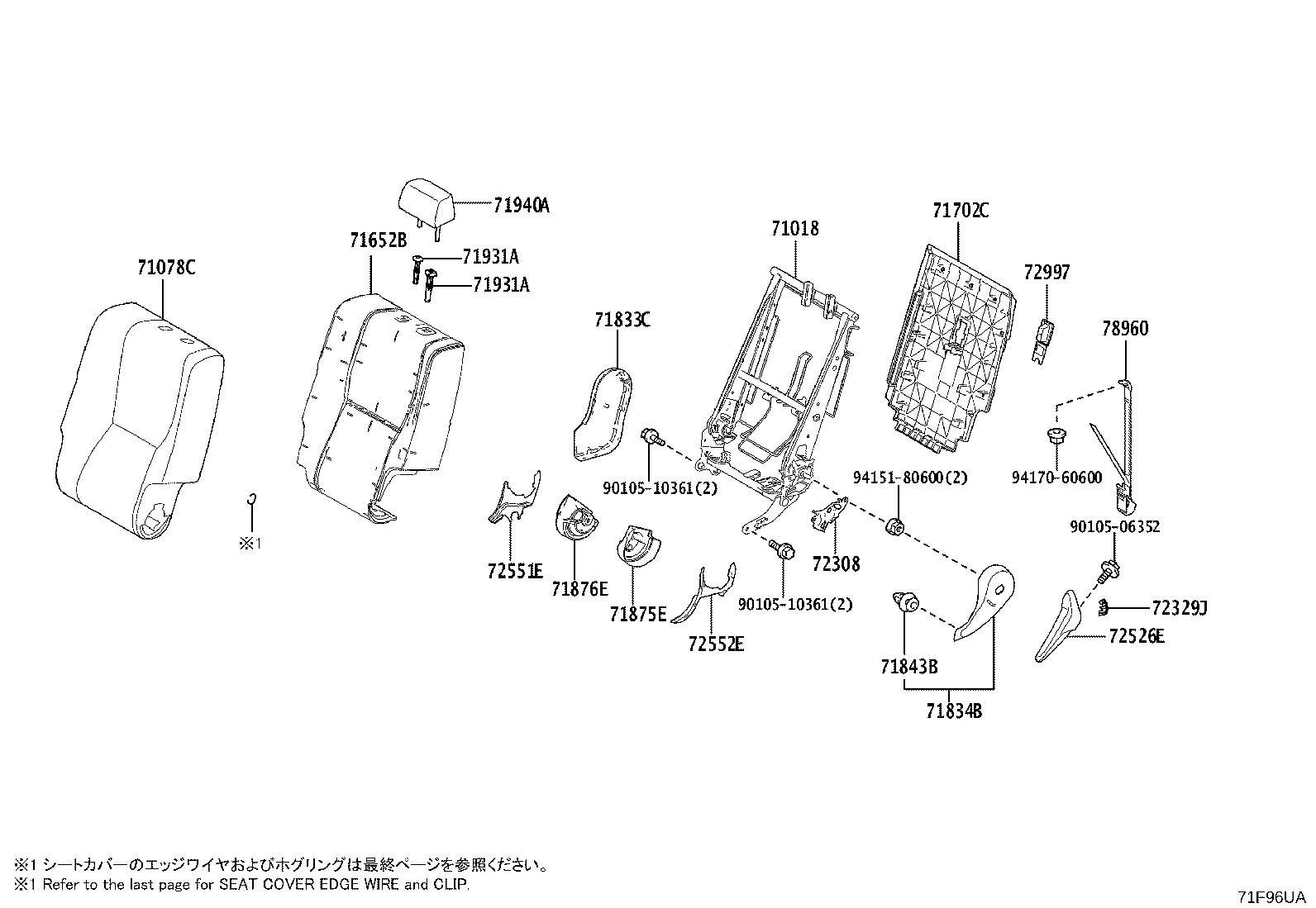

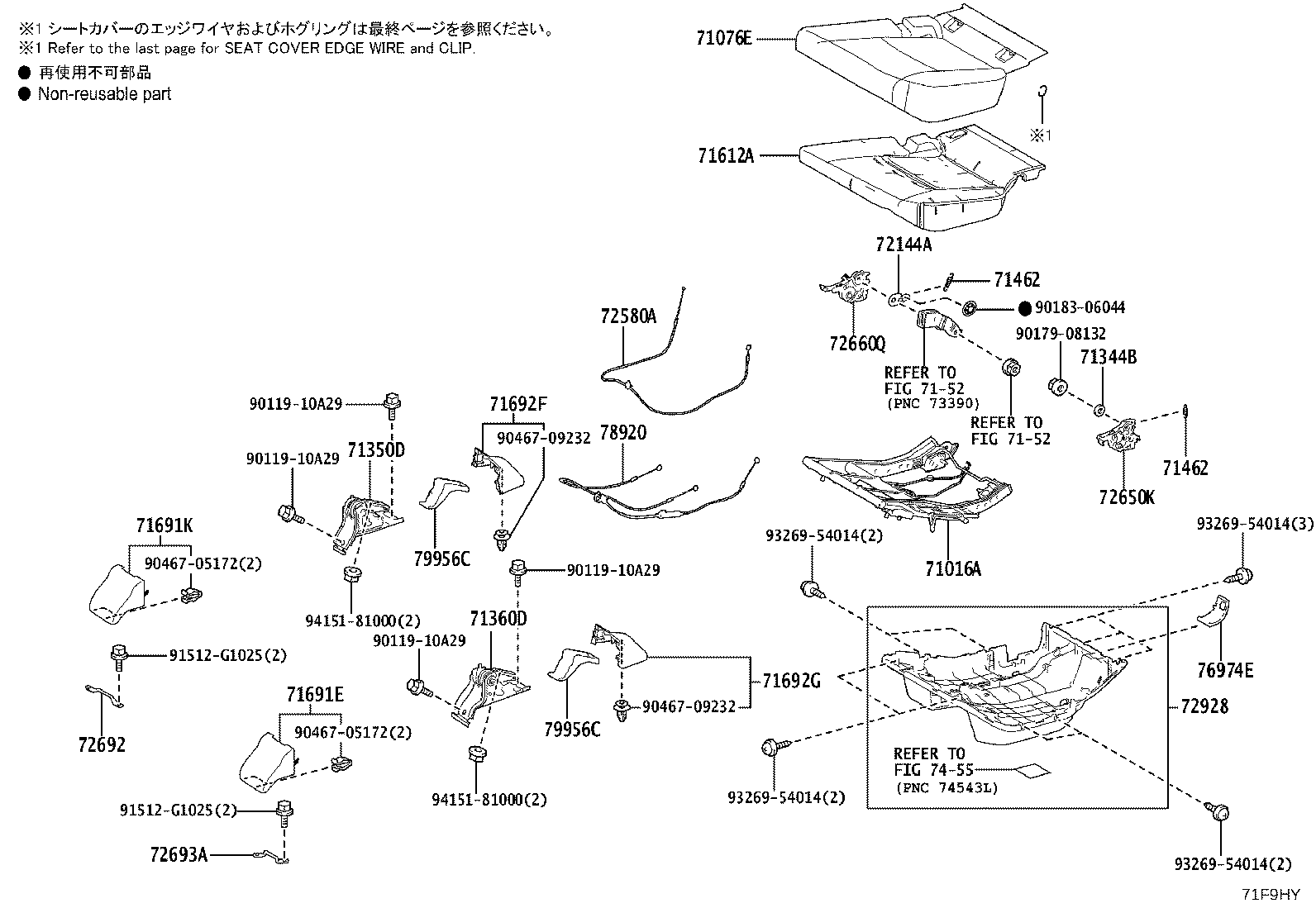

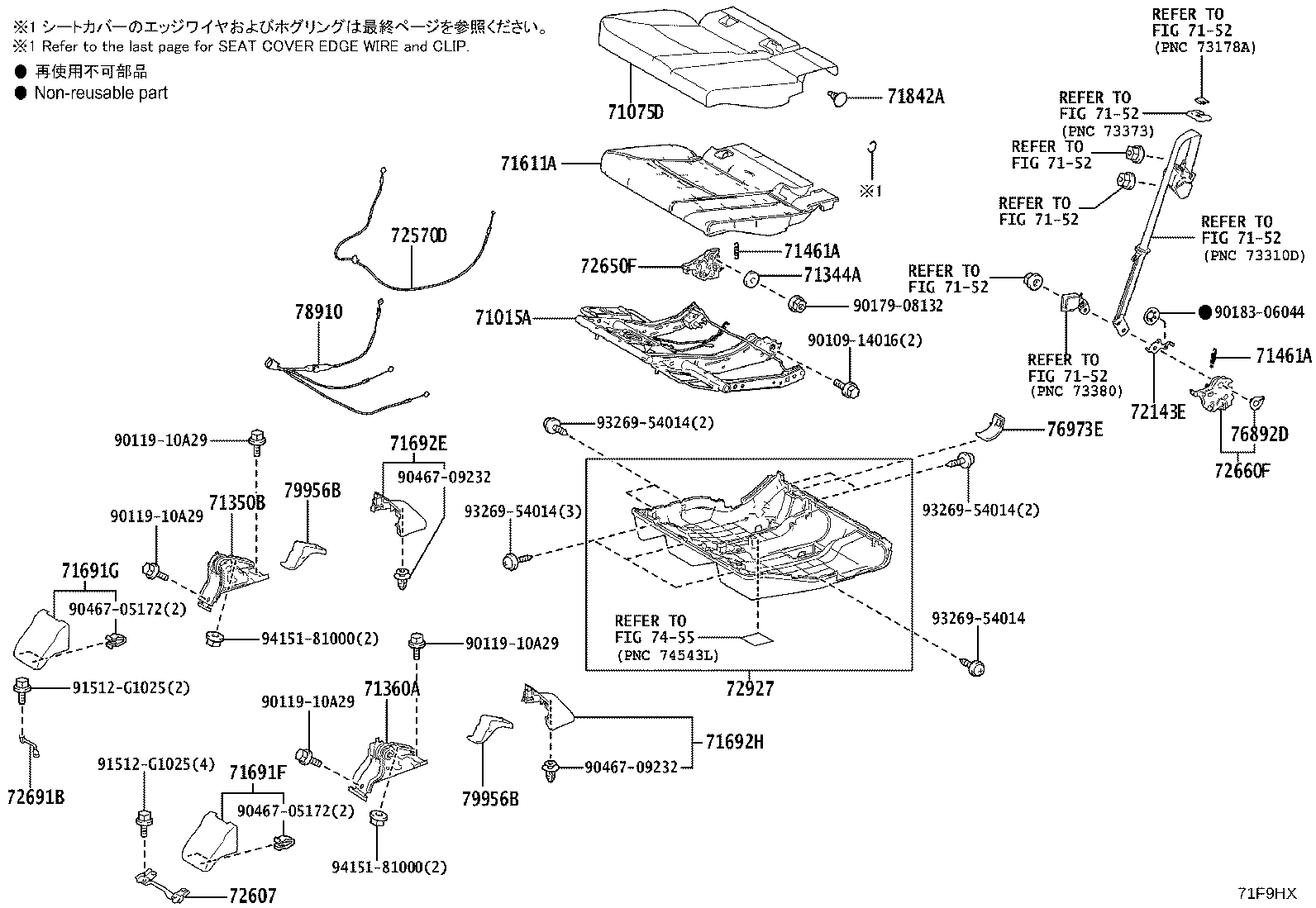

Figure 719034B 719034B 2014-08 → 2015-07 Figure 719035C 719035C 2014-08 → 2015-07 Figure 71F96RB 71F96RB 2023-11 → — Figure 71F96SA 71F96SA 2023-11 → — Figure 71F9HX 71F9HX 2023-11 → — Figure 71F96UA 71F96UA 2023-11 → — Figure 71F9HY 71F9HY 2023-11 → — Figure 718165B 718165B 2014-08 → —

Part groups

PNCDescription
65661B Guide, Rollar
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71015 Frame Sub-assy, Rear Seat Cushion
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71017A Frame Sub-assy, Rear Seatback
71018 Frame Sub-assy, Rear Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075D Cover Sub-assy, Rear Seat Cushion, RH
71076E Cover Sub-assy, Rear Seat Cushion, LH
71077A Cover Sub-assy, Rear Seatback, RH
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71078C Cover Sub-assy, Rear Seatback, LH
71311D Hinge, Rear Seat, Lower RH
71324A Cushion, Rear Seat
71324D Cushion, Rear Seat, RH
71335C Stay, Rear Seat Cushion Link, RH
71336A Stay, Rear Seat Cushion Link, LH
71344A Plate, Rear Seat Cushion Hinge
71344B Plate, Rear Seat Cushion Hinge, NO.2
71350B Hinge Assy, Rear Seat, RH
71350D Hinge Assy, Rear Seat, NO.2 RH
71360A Hinge Assy, Rear Seat, LH
71360D Hinge Assy, Rear Seat, NO.2 LH
71389C Spacer, Front Seat Hinge
71396A Plate, Rear Seat Band Hook
71461A Spring, Rear Seat Cushion, NO.1
71462 Spring, Rear Seat Cushion, NO.2
71485 Cover, Rear Seat Hinge
71486C Cover, Rear Seat Hinge, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71521 Pad, Front Seat Cushion Silencer, A
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71587B Protector, Front Seatback Edge
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611 Pad, Rear Seat Cushion
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71651 Pad, Rear NO.1 Seatback
71651D Pad, Rear Seatback, RH
71652B Pad, Rear Seatback, LH
71671A Pad, Rear Seatback Silencer, A
71672A Pad, Rear Seat Cushion Silencer, B
71691E Cover, Rear Seat Cushion Hinge, NO.1
71691F Cover, Rear NO.1 Seat Cushion Hinge, Inner RH
71691G Cover, Rear NO.1 Seat Cushion Hinge, Outer RH
71691K Cover, Rear Seat Cushion Hinge, NO.4
71692E Cover, Rear Seat Cushion Hinge, NO.2
71692F Cover, Rear NO.1 Seat Cushion Hinge, Inner LH
71692G Cover, Rear NO.1 Seat Cushion Hinge, Outer LH
71692H Cover, Rear Seat Cushion Hinge, NO.3
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71701C Board Sub-assy, Rear Seatback, RH
71702C Board Sub-assy, Rear Seatback, LH
71811C Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71833B Clip (FOR REAR SEAT RECLINING COVER)
71833C Cover, Rear Seat Reclining, NO.2 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834B Cover, Rear Seat Reclining, NO.2 LH
71842A Clip(FOR REAR SEAT)
71843B Clip, Rear Seat Reclining Cover
71875C Cover, Reclining Adjuster Inside, RH
71875E Cover, Reclining Adjuster Inside, RH
71876B Cover, Reclining Adjuster Inside, LH
71876E Cover, Reclining Adjuster Inside, LH
71887C Carpet, Rear Seat Cushion
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72053C Lever Sub-assy, Reclining Remote Control, RH
72054A Lever Sub-assy, Reclining Remote Control, LH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72123C Cover, Seat Track Bracket, Outer Front RH
72124C Cover, Seat Track Bracket, Outer Front LH
72130A Track Assy, Front Seat, Inner RH
72137 Cover, Seat Track, Outer RH
72137A Clip (FOR SEAT TRACK COVER)
72137D Cover, Rear Seat Track, RH
72137J Cover, Front Seat Track, RH Rear Outer
72137K Cover, Front Seat Track, RH Rear Inner
72138 Cover, Seat Track, Outer LH
72138A Cover, Rear Seat Track, LH
72138H Cover, Front Seat Track, LH Rear Inner
72138J Cover, Front Seat Track, LH Rear Outer
72140A Track Assy, Front Seat,Inner LH
72143E Bracket, Rear Seat Track, Lower Rear RH
72144A Bracket, Rear Seat Track, Lower Rear LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72181 Bracket, Rear Outer Seat Track, Lower Front RH
72182 Bracket, Rear Outer Seat Track, Lower Front LH
72205B Pin Sub-assy, Seat Track Open Lever
72307 Link Sub-assy, Reclining Control, RH
72308 Link Sub-assy, Reclining Control, LH
72329H Cover, Seat Adjuster Bolt, NO.1
72329J Cover, Seat Adjuster Bolt, NO.2
72501C Pipe Sub-assy, Reclining Connecting
72510D Adjuster Assy, Reclining Seat, Outer RH
72520D Adjuster Assy, Reclining Seat, Outer LH
72524 Handle, Reclining Adjuster Release
72525J Handle, Reclining Adjuster Release, RH
72526E Handle, Reclining Adjuster Release, LH
72551A Cover, Reclining Hinge
72551E Cover, Reclining Hinge, RH
72552A Cover, Reclining Hinge, LH
72552E Cover, Reclining Hinge, LH
72569 Plate, Seatback Stopper
72570D Cable Assy, Reclining Adjusting
72580A Cable Assy, Reclining Adjusting, LH
72593A Knob, Remote Control Lever, RH
72594 Knob, Remote Control Lever, LH
72597A Bezel, Reclining Remote Control Lever, RH
72598 Bezel, Reclining Remote Control Lever, LH
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72607 Striker Sub-assy, Rear Seat Cushion Lock
72650F Lock Assy, Rear Seat, RH
72650K Lock Assy, Rear Seat, RH NO.2
72660F Lock Assy, Rear Seat, LH
72660Q Lock Assy, Rear Seat, LH NO.2
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72691B Striker, Rear Seat Cushion Lock
72692 Striker, Rear Seat Cushion Lock, NO.2
72693A Striker, Rear Seat Cushion Lock, NO.3
72749B Spacer, Rear Seat Reclining, NO.1
72927 Cover, Rear Seat Cushion Under, RH
72928 Cover, Rear Seat Cushion Under, LH
72996 Cover, Rear Seatback, RH
72997 Cover, Rear Seatback, LH
73198B Cover, Rear Seat Bracket
76892D Bush, Rear Seat Lock Assy
76973E Cover, Rear Under Side, RH
76974E Cover, Rear Under Side, LH
78910 Cable Assy, Fold Seat Lock Control, NO.1
78920 Cable Assy, Fold Seat Lock Control, NO.2
78950 Band Assy, Fold Seat Stopper, NO.1
78960 Band Assy, Fold Seat Stopper, NO.2
79956B Cover, Rear Seat Leg Side, RH
79956C Cover, Rear Seat Leg Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
