Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

16 part groups · 4 illustrations

Illustrations

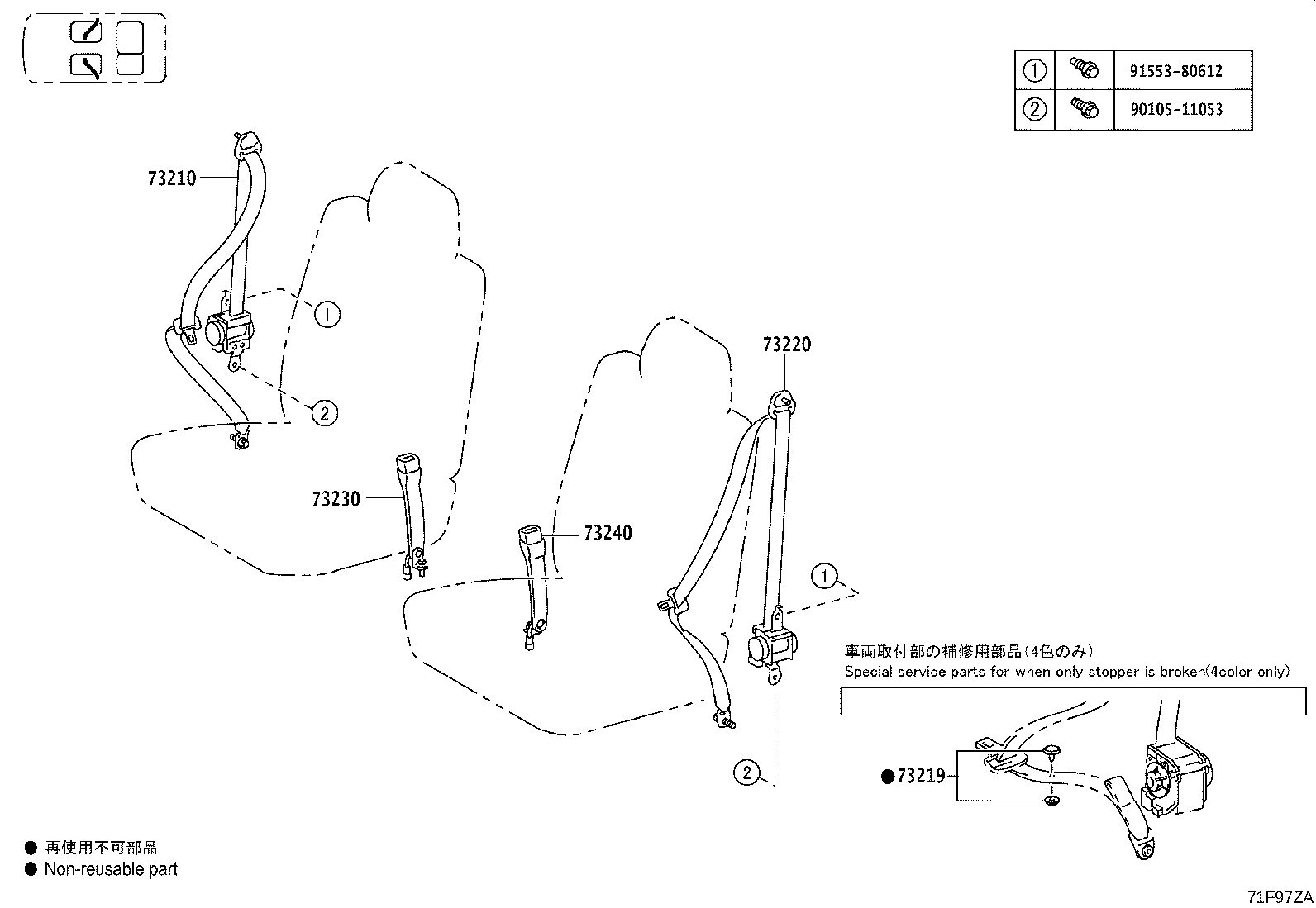

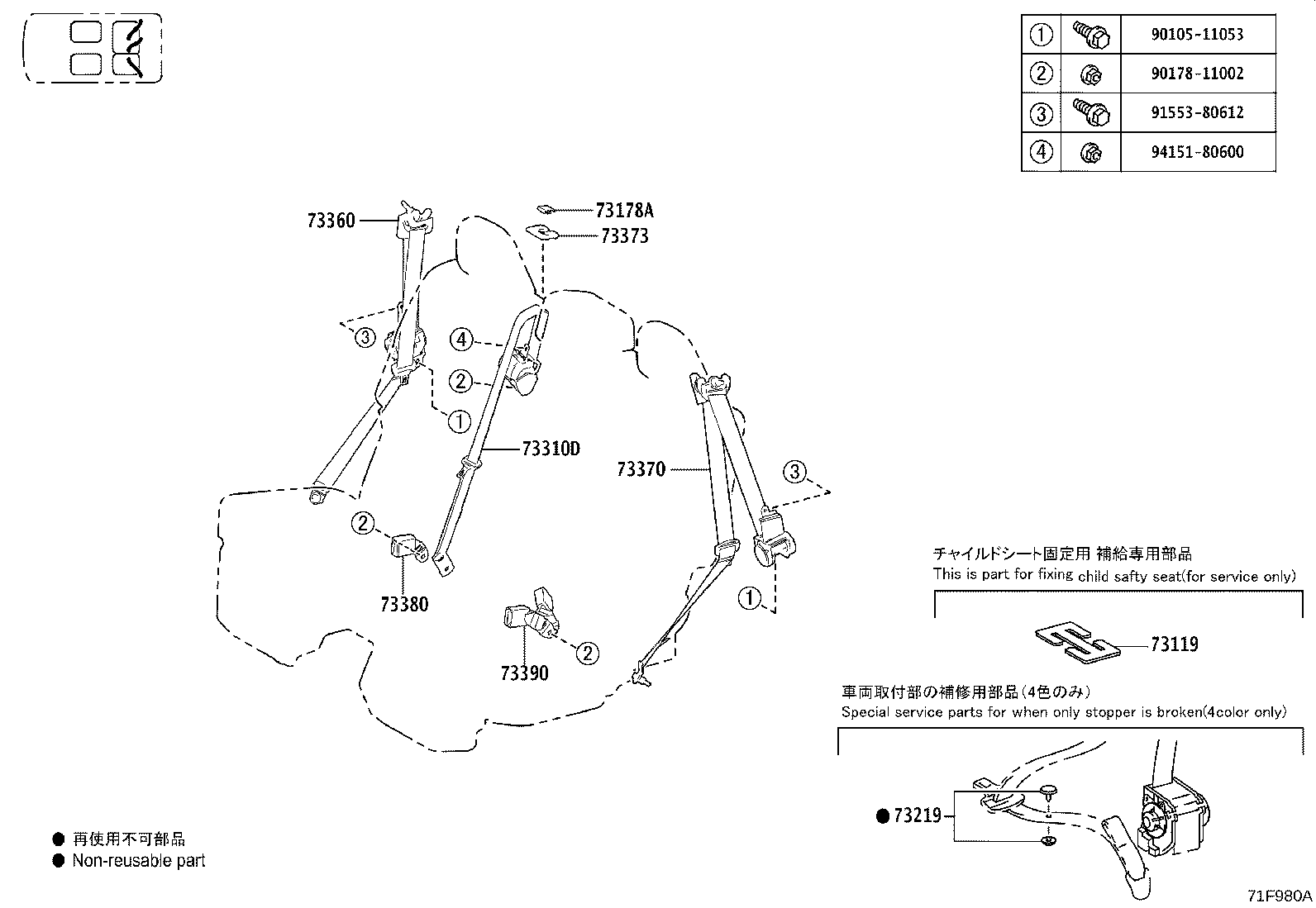

Figure 719040B 719040B 2014-08 → 2015-07 Figure 719041A 719041A 2014-08 → 2015-07 Figure 71F97ZA 71F97ZA 2023-11 → — Figure 71F980A 71F980A 2023-11 → —

Part groups

PNCDescription
73119 Plate, Seat Belt Webbing Clip
73178A Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73302 Belt Sub-assy, Rear Seat Outer
73306 Belt Sub-assy Seat, Inner
73310D Belt Assy, Rear Seat 3 Point Type, Center
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73373 Cover, Rear Seat Shoulder Belt
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
