Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11

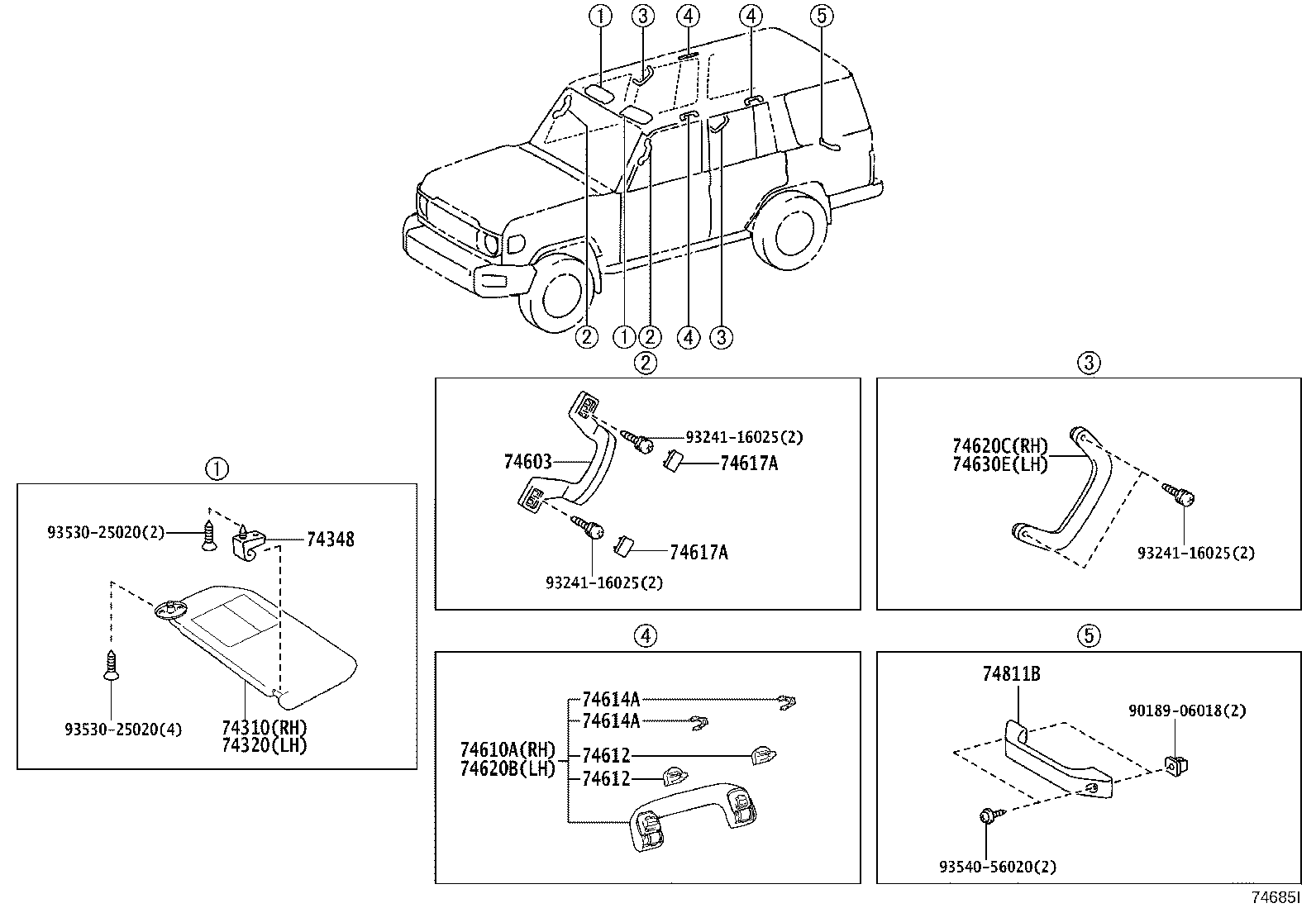

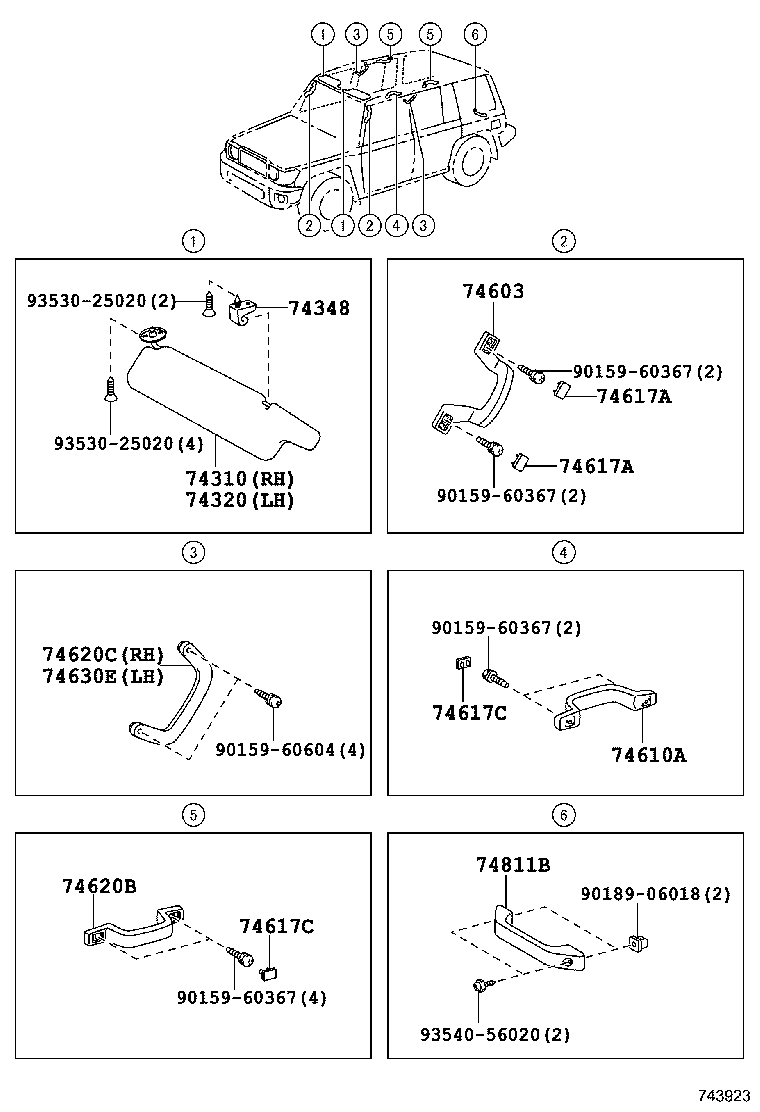

Armrest & Visor
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74223 | Cap, Door Armrest, RH |
| 74224 | Cap, Door Armrest, LH |
| 74225 | Cap, Door Armrest, Rear RH |
| 74226 | Cap, Door Armrest, Rear LH |
| 74230 | Armrest Assy, Rear, RH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74240 | Armrest Assy, Rear, LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74603 | Grip Sub-assy, Assist, Front |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74614A | Plate, Assist Grip Lock |
| 74617A | Plug, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74620B | Grip Assy, Assist, Rear |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630E | Grip Assy, Assist, Rear LH |
| 74811B | Handle, Door Pull |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
