Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11

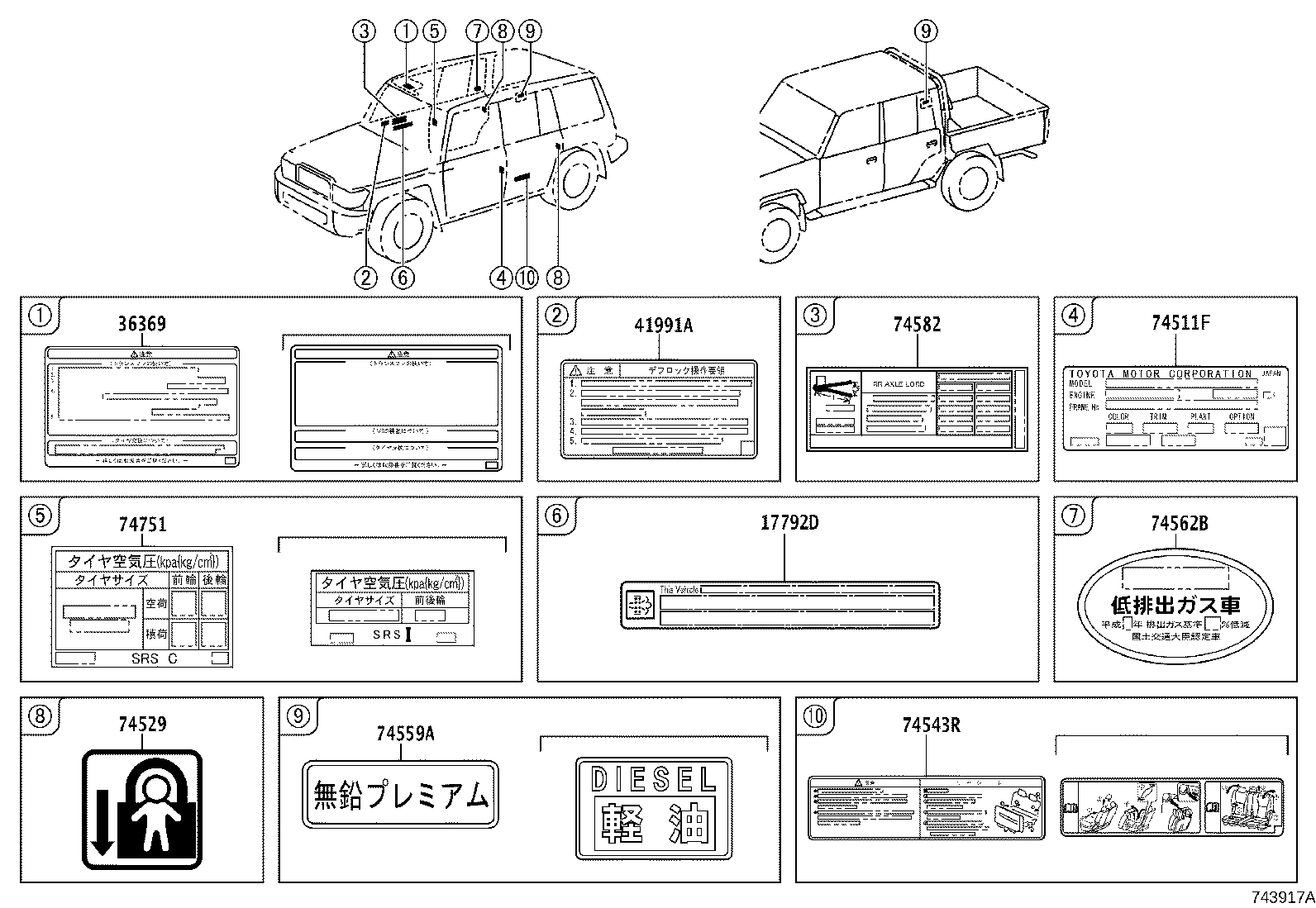

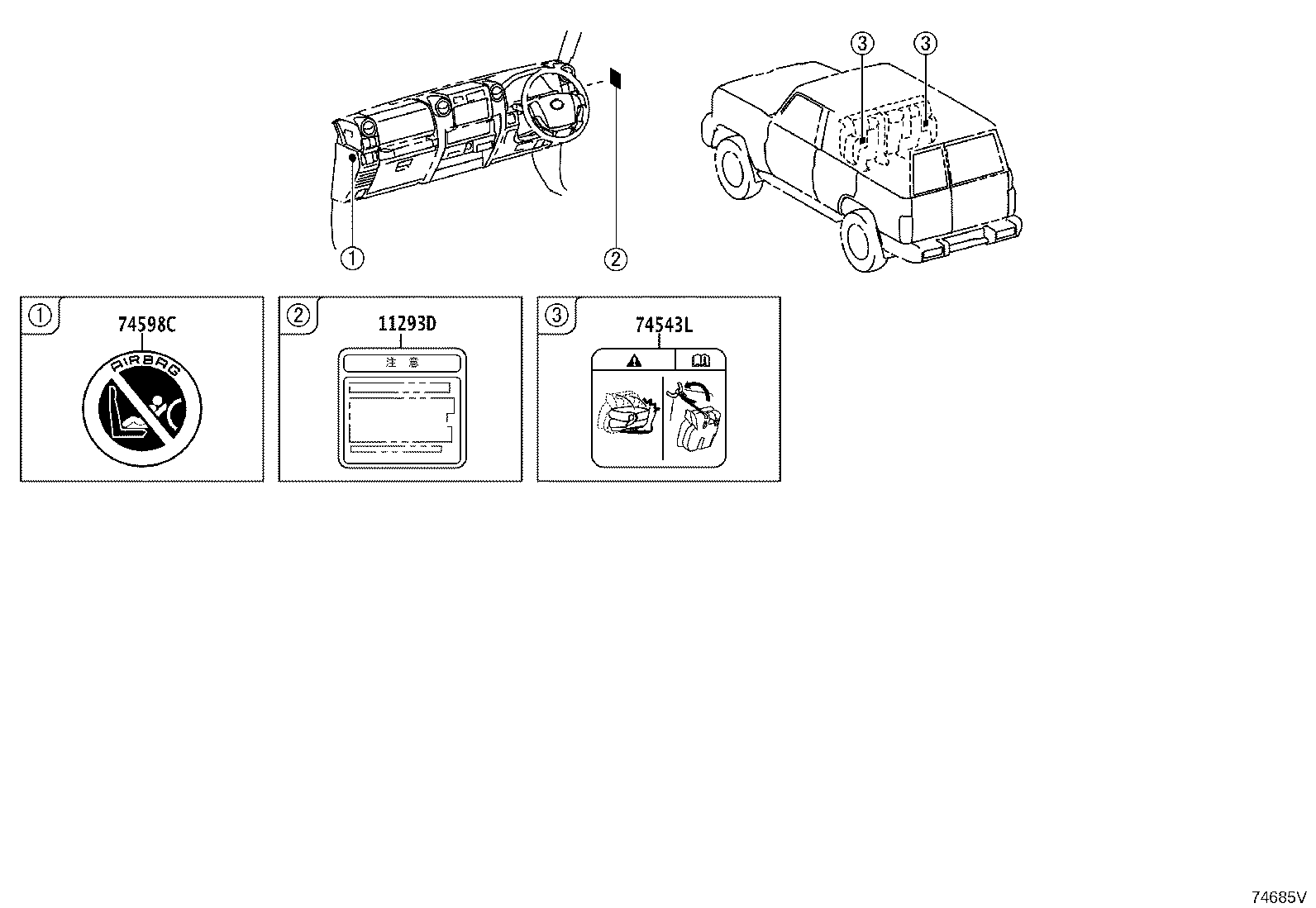

Caution Plate
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11289B | Label, Spark Plug Notice |
| 11293D | Label, Engine Caution |
| 11296C | Label, Engine Service Information |
| 17792D | Label, Emission Control Device Information |
| 36369 | Label, Transfer Information |
| 38191A | Plate, Caution, NO.1 |
| 38192B | Plate, Caution, NO.2 |
| 41991A | Plate, Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74543L | Label, Rear Seat Caution, NO.1 |
| 74543R | Label, Rear Seat Caution |
| 74559A | Plate, Fuel Caution |
| 74562B | Label, Emission Information |
| 74582 | Plate, Load Sensing Valve Marking |
| 74598C | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 88723J | Label, Cooler Service Caution, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
