Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11

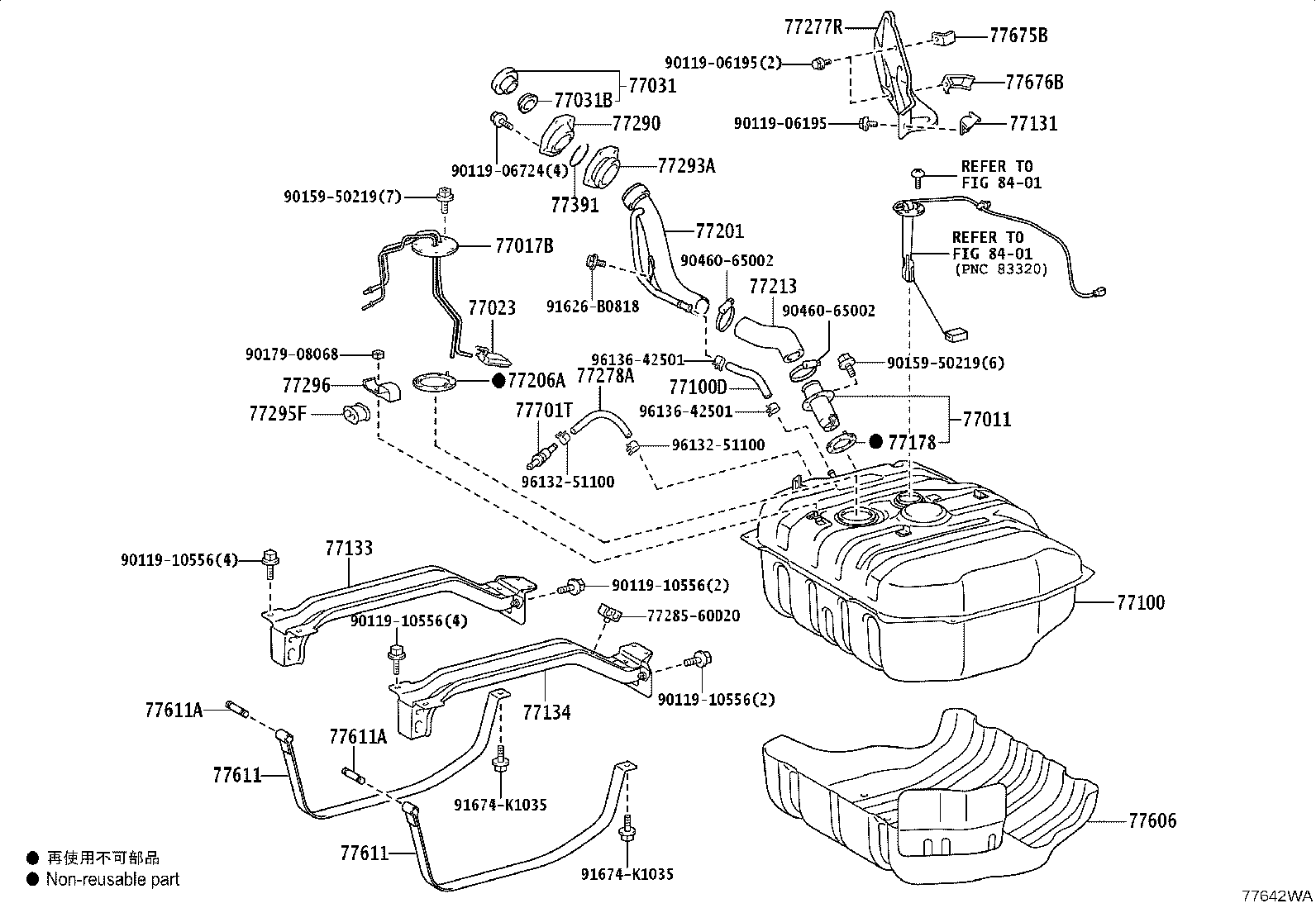

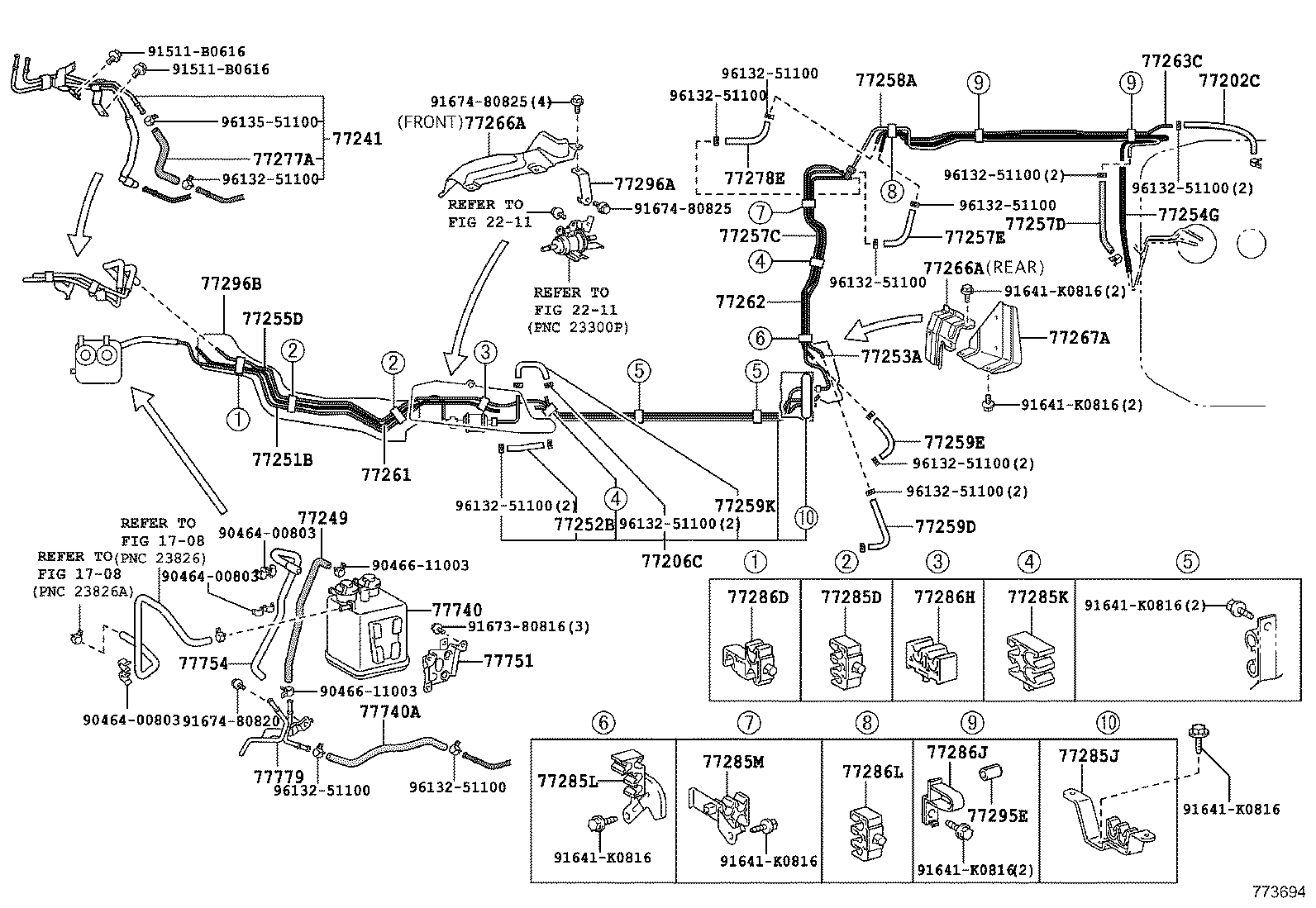

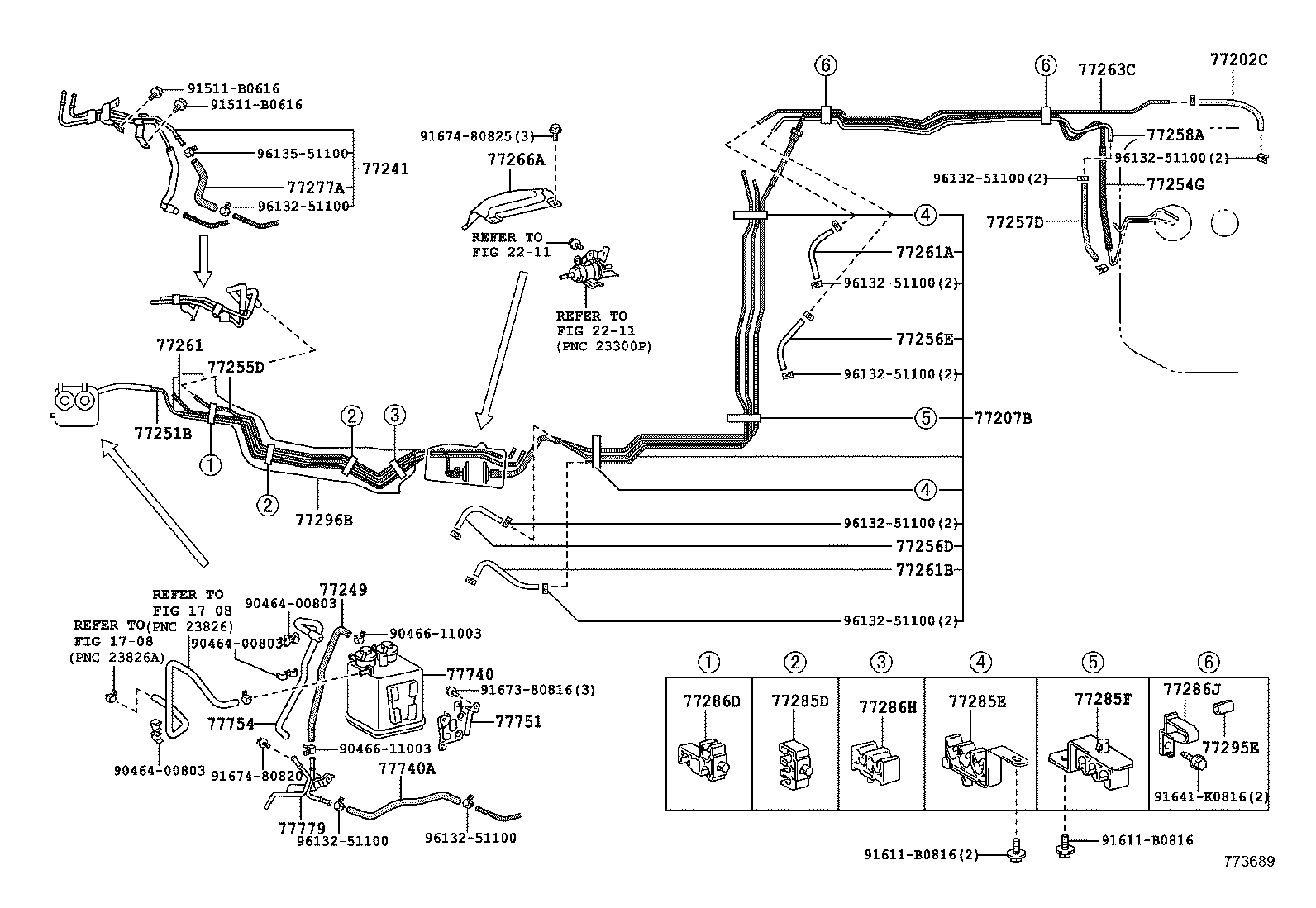

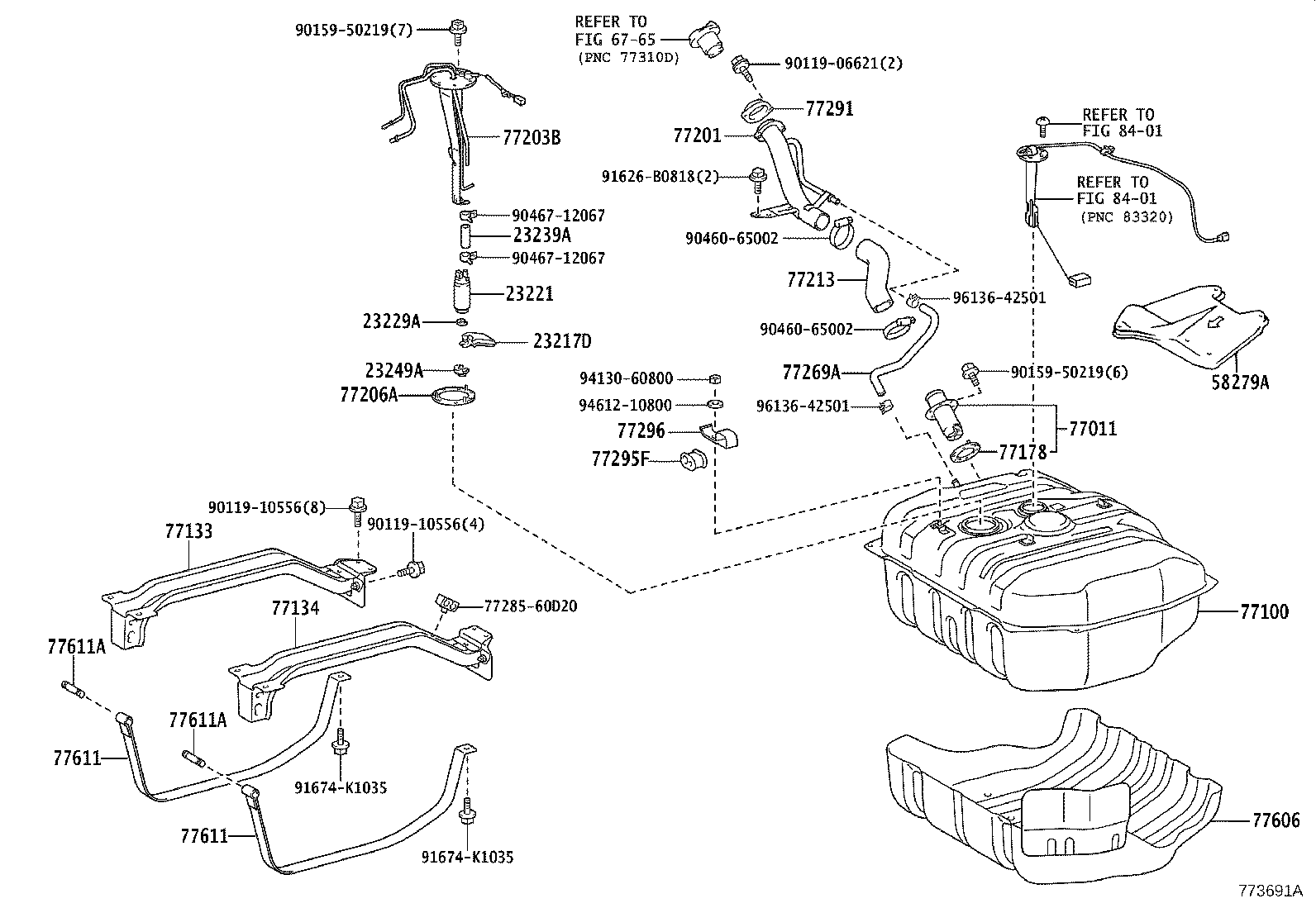

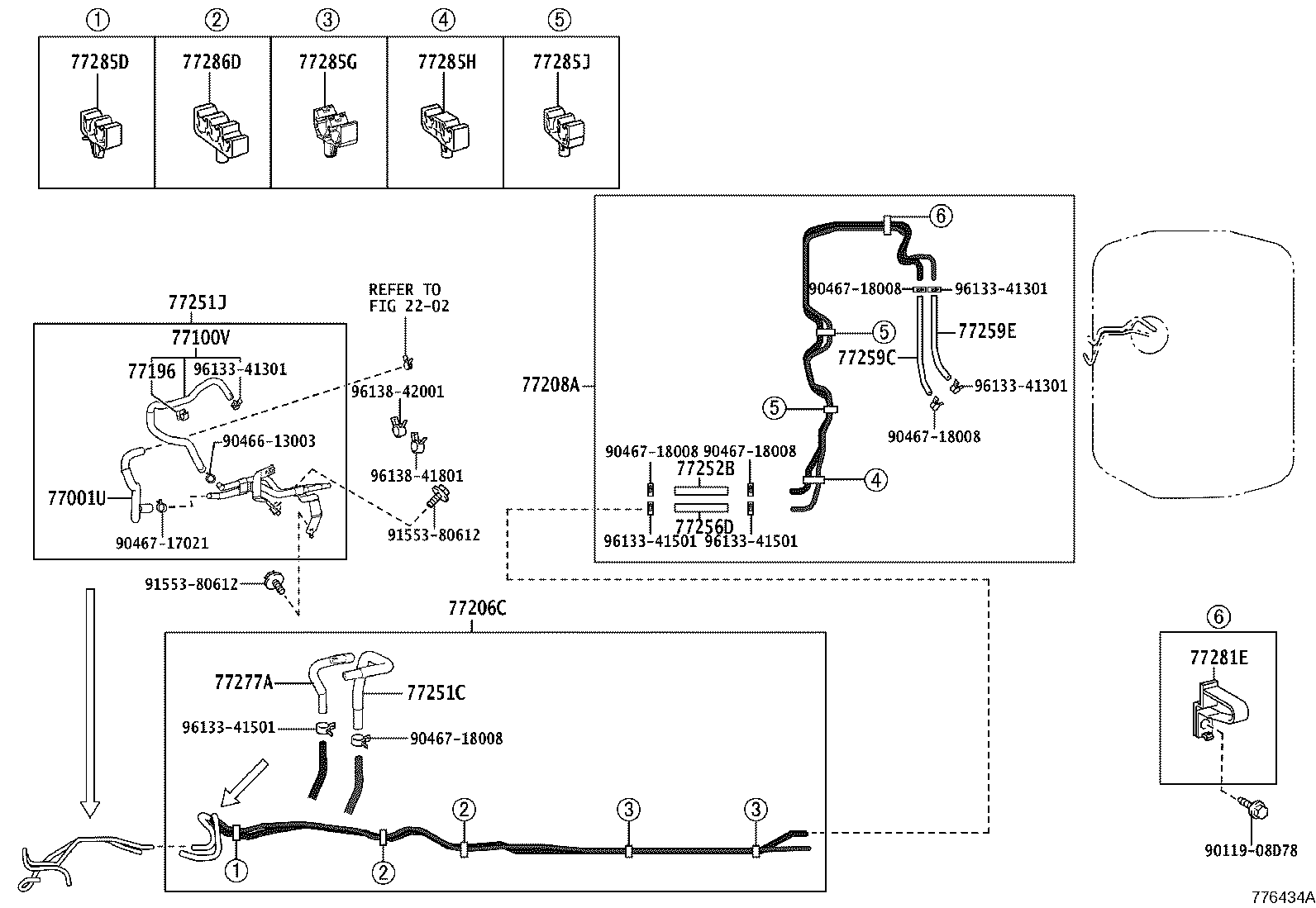

Fuel Tank & Tube
99 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23229A | Clip(FOR FUEL PUMP FILTER) |
| 23239A | Hose |
| 23249A | Rubber, Cushion(FOR FUEL PUMP) |
| 58279A | Protector, Fuel Hose |
| 77001U | Hose, Fuel |
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77100V | Hose, Fuel |
| 77131 | Bracket, Fuel Tank Filler Pipe Support |
| 77133 | Support, Fuel Sub-tank, RH |
| 77134 | Support, Fuel Sub-tank, LH |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77196 | Clamp, Evaporation Vent Tube, NO.1 |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77202C | Hose, Fuel, NO.3 (FOR BREATHER TUBE) |
| 77203B | Tube Sub-assy, Fuel Suction |
| 77206A | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77206C | Tube Sub-assy, Fuel Main, NO.2 |
| 77207B | Tube Sub-assy, Fuel Main, NO.3 |
| 77208A | Tube Sub-assy, Fuel Main, NO.4 |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77241 | Tube, Fuel Main, NO.1 |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77251J | Tube, Fuel Main, NO.1 |
| 77252B | Hose, Fuel, NO.1 (FOR FUEL MAIN NO.2 TUBE) |
| 77253A | Tube, Fuel Main, NO.3 |
| 77254G | Tube, Fuel Main, NO.4 |
| 77255D | Tube, Fuel Return |
| 77256D | Hose, Fuel, NO.1 (FOR FUEL RETURN NO.2 TUBE) |
| 77256E | Hose, Fuel, NO.2 (FOR FUEL RETURN NO.2 TUBE) |
| 77257C | Tube, Fuel Return, NO.3 |
| 77257D | Hose, Fuel, NO.1(FOR FUEL RETURN NO.3 TUBE) |
| 77257E | Hose, Fuel, NO.2(FOR FUEL RETURN NO.3 TUBE) |
| 77258A | Tube, Fuel Return, NO.4 |
| 77259C | Hose, Fuel |
| 77259D | Hose, Fuel, NO.1 |
| 77259E | Hose, Fuel |
| 77259K | Hose, Fuel |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77261A | Hose, Fuel, NO.1 (FOR FUEL EMISSION TUBE) |
| 77261B | Hose, Fuel, NO.2 (FOR FUEL EMISSION TUBE) |
| 77262 | Tube, Fuel Emission, NO.2 |
| 77263C | Tube, Fuel Emission, NO.3 |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77269A | Hose, Fuel Tank Breather |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77278A | Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2) |
| 77278E | Hose, Fuel |
| 77281E | Bracket, Fuel Main Tube, NO.1 |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285E | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285G | Clamp, Fuel Tube, NO.1 |
| 77285H | Clamp, Fuel Tube, NO.1 |
| 77285J | Clamp, Fuel Tube, NO.1 |
| 77285K | Clamp, Fuel Tube, NO.1 |
| 77285L | Clamp, Fuel Tube, NO.1 |
| 77285M | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286J | Clamp, Fuel Tube, NO.4 |
| 77286L | Clamp, Fuel Tube, NO.5 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77291 | Packing, Fuel Tank Support, Upper |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77295E | Grommet, Fuel Tube |
| 77295F | Grommet, Fuel Hose |
| 77296 | Plate, Fuel Tube Grommet Support |
| 77296A | Plate, Fuel Tube Support, NO.2 |
| 77296B | Support, Fuel Tube Protector, NO.1 |
| 77305A | Lid Sub-assy, Fuel Filler Opening |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77675B | Bracket, Fuel Tank Filler Pipe Protector, NO.1 |
| 77676B | Bracket, Fuel Tank Filler Pipe Protector, NO.2 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77779 | Tube, Charcoal Canister Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
