Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

8 part groups · 2 illustrations

Illustrations

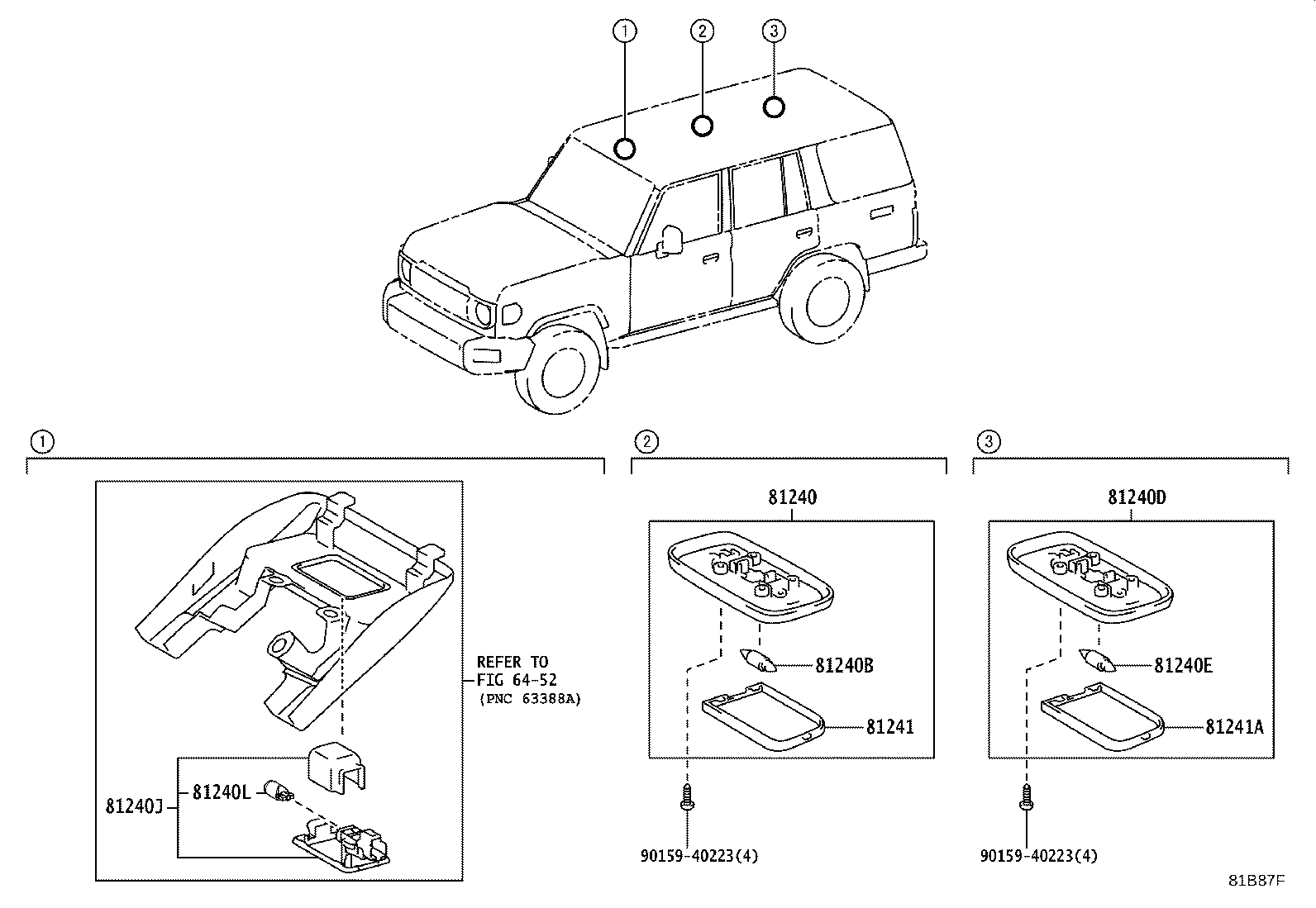

Figure 817088 817088 2014-08 → 2015-07 Figure 81B87F 81B87F 2023-11 → —

Part groups

PNCDescription
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81240D Lamp Assy, Room, NO.2
81240E Bulb, Room Lamp, NO.2
81240J Lamp Assy, Room
81240L Bulb, Room Lamp
81241 Lens, Room Lamp, NO.1
81241A Lens, Room Lamp, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
