Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 3 illustrations

Illustrations

832032 2014-08 → —

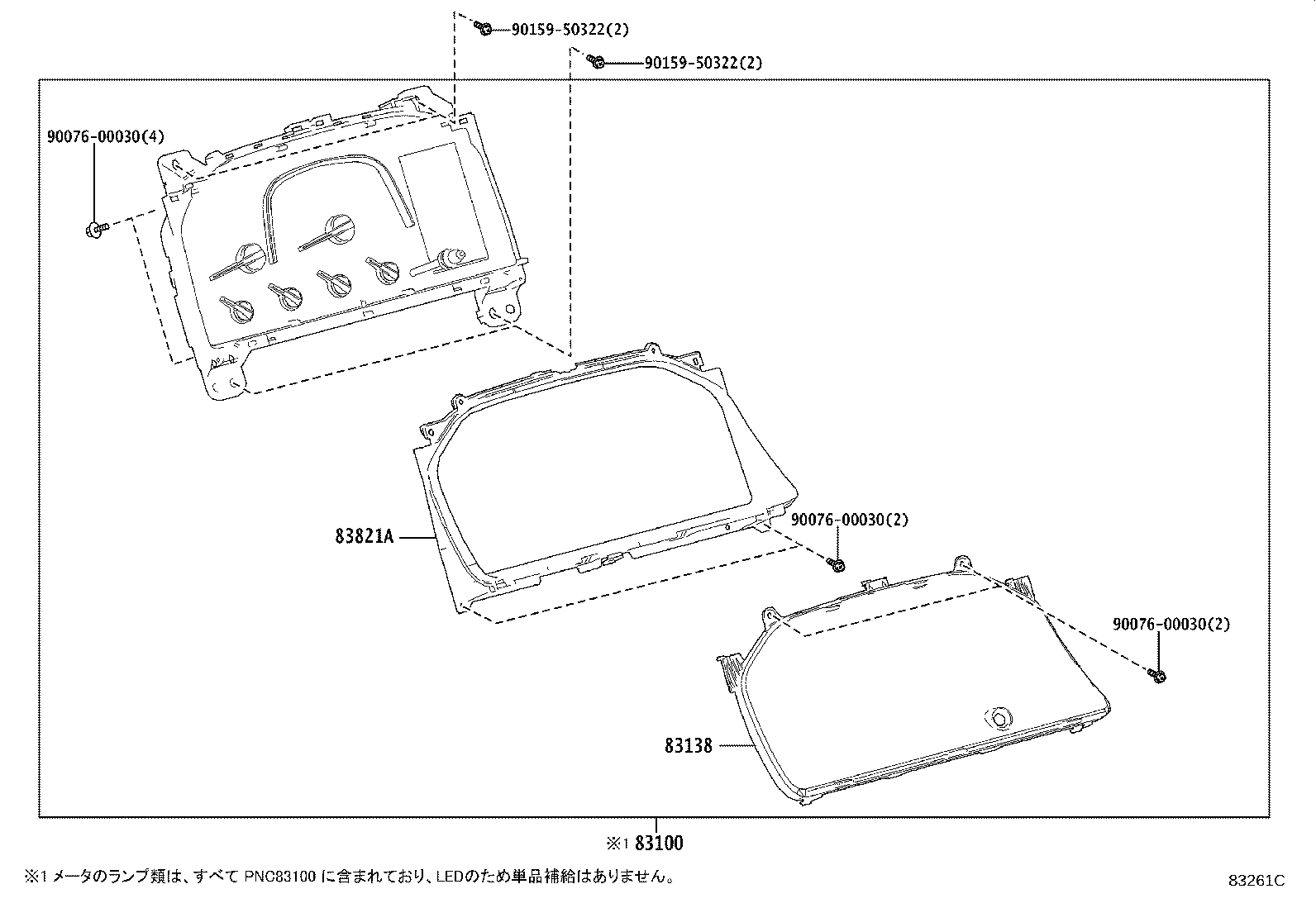

Figure 83261C

83261C 2023-09 → —

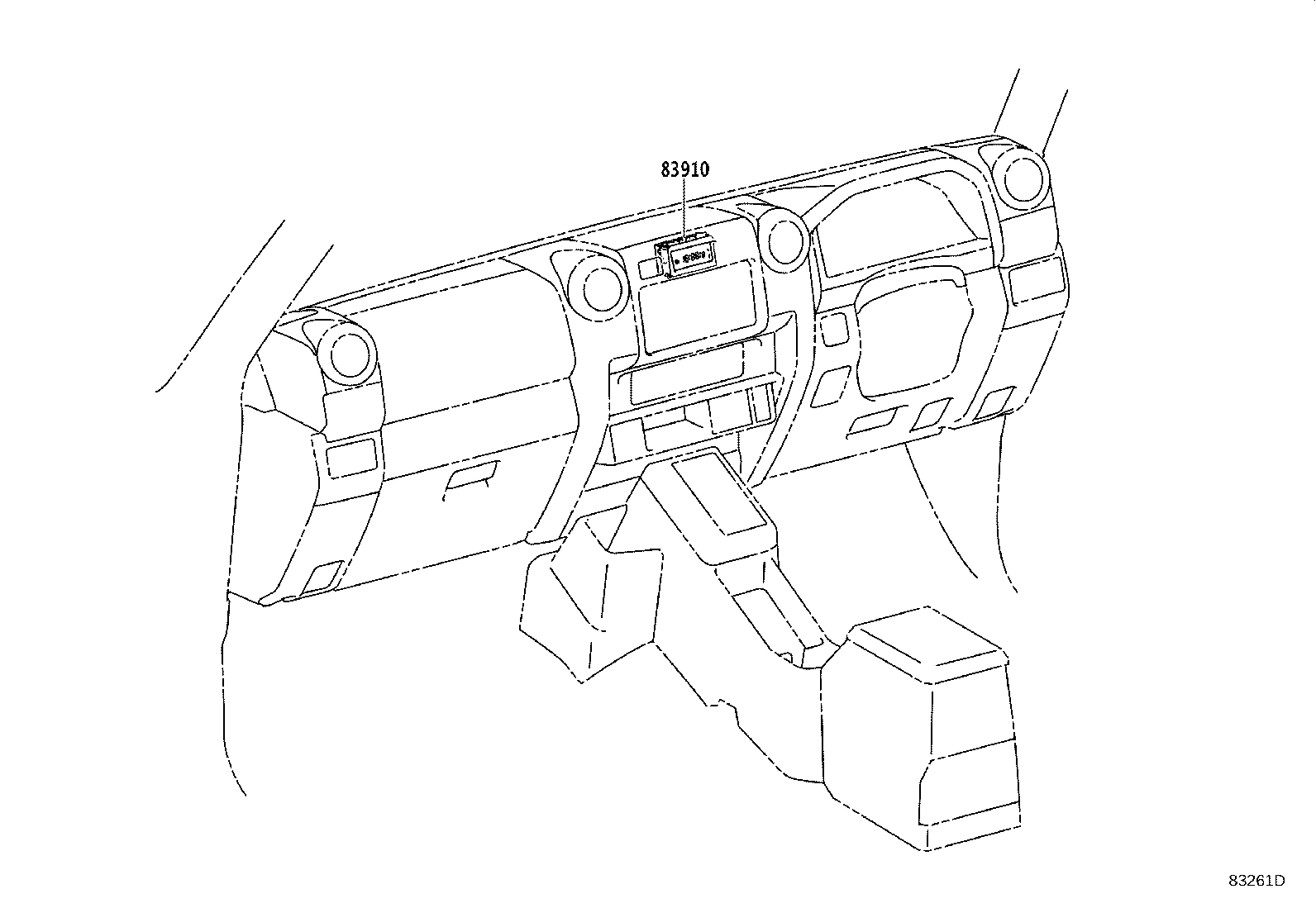

Figure 83261D

83261D 2023-09 → —

Part groups

PNC	Description
83100	Meter Assy, Combination
83138	Glass, Speedometer
83821A	Cover, Combination Meter, NO.1
83910	Clock Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
