Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11
Switch & Relay & Computer
141 part groups · 15 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |

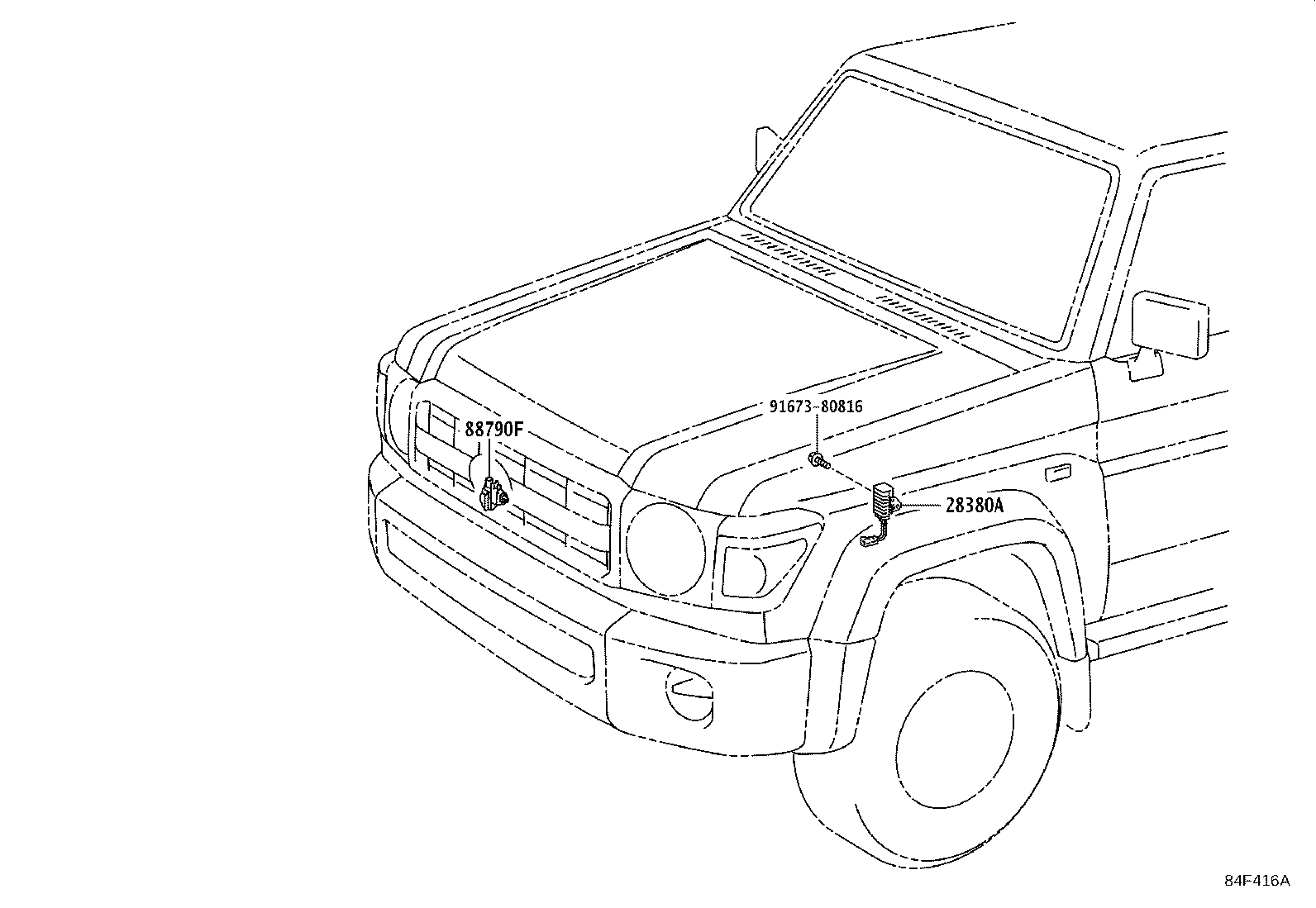

| 28380A | Resister, Fuel Pump |

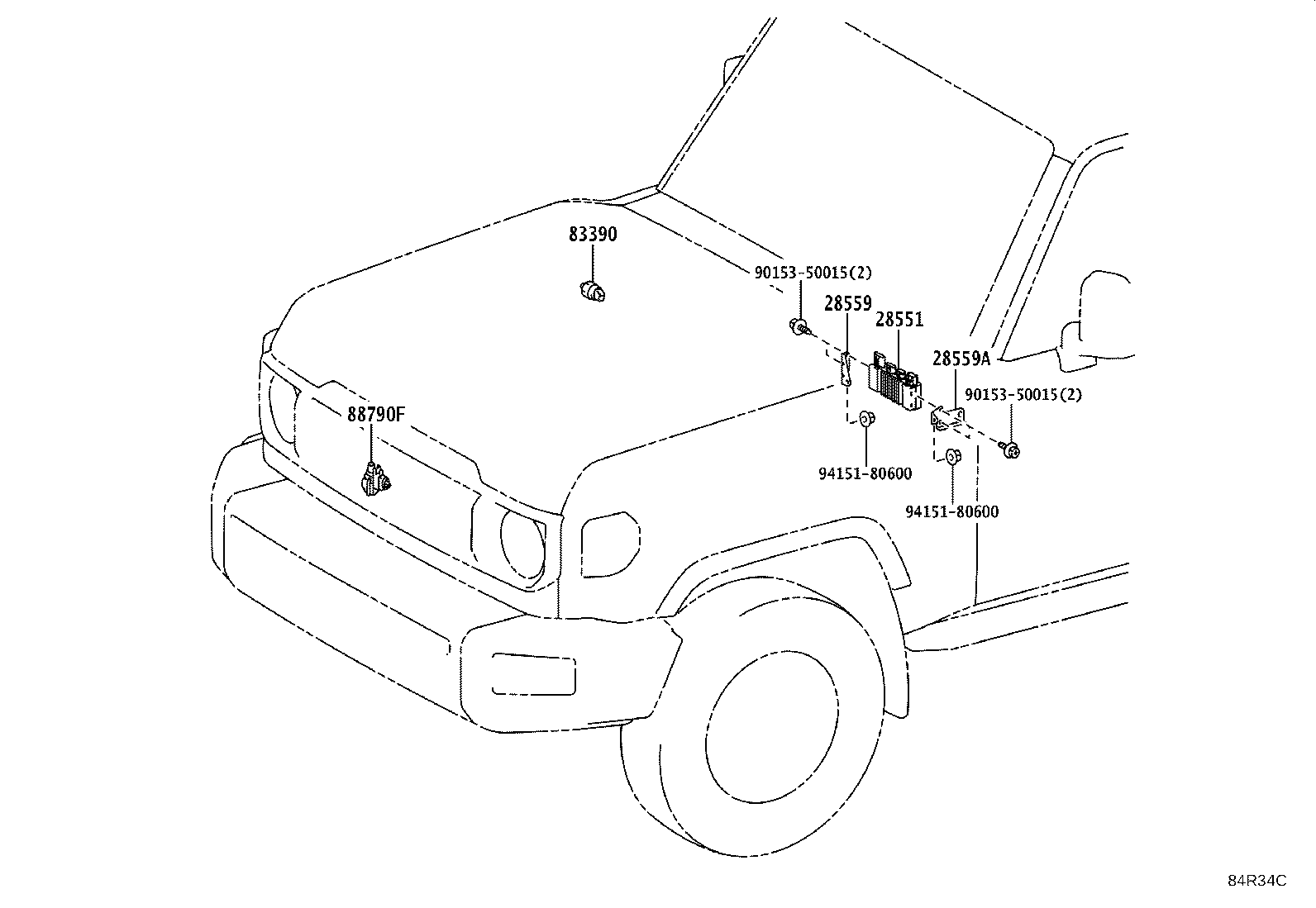

| 28551 | Controller, Glow Plug |
| 28559 | Bracket, Glow Plug Controller, NO.1 |
| 28559A | Bracket, Glow Plug Controller, NO.2 |
| 28610A | Relay Assy, Glow Plug(SUB) |
| 81713 | Holder, Fusee |
| 81980 | Flasher Assy, Turn Signal |
| 81981A | Flasher, Turn Signal |
| 82210J | Fusible Link |
| 82223E | Wire, Clutch Start Switch |

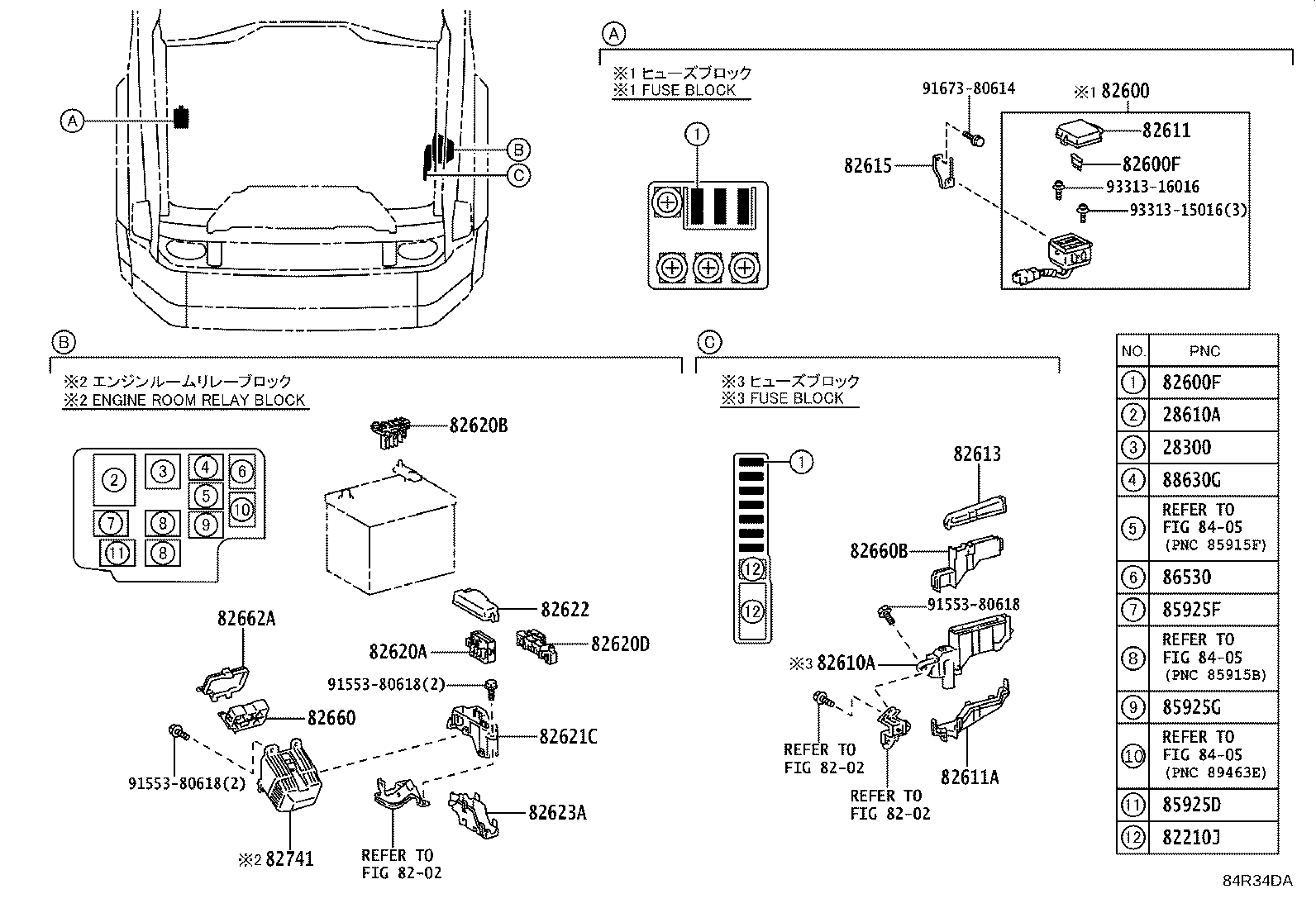

| 82600 | Block Assy, Fuse |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82610A | Block Assy, Fuse |
| 82611 | Cover, Fuse Block |
| 82611A | Cover, Fuse Block, NO.2 |
| 82613 | Cover, Fuse Block |
| 82615 | Bracket, Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620B | Block Assy, Fusible Link |
| 82620D | Block Assy, Fusible Link |
| 82621A | Cover, Fusible Link |
| 82621C | Cover, Fusible Link, NO.2 |
| 82622 | Cover, Fusible Link, Upper |
| 82623 | Cover, Fusible Link, Lower |
| 82623A | Cover, Fusible Link, Lower NO.2 |
| 82642B | Relay, Day Time Running Light, NO.1 |
| 82660 | Block Assy, Relay, Engine Room |
| 82660A | Block Assy, Relay, Cowl Side |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82666 | Holder, Connector |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82716A | Bracket, Wiring Harness Clamp |

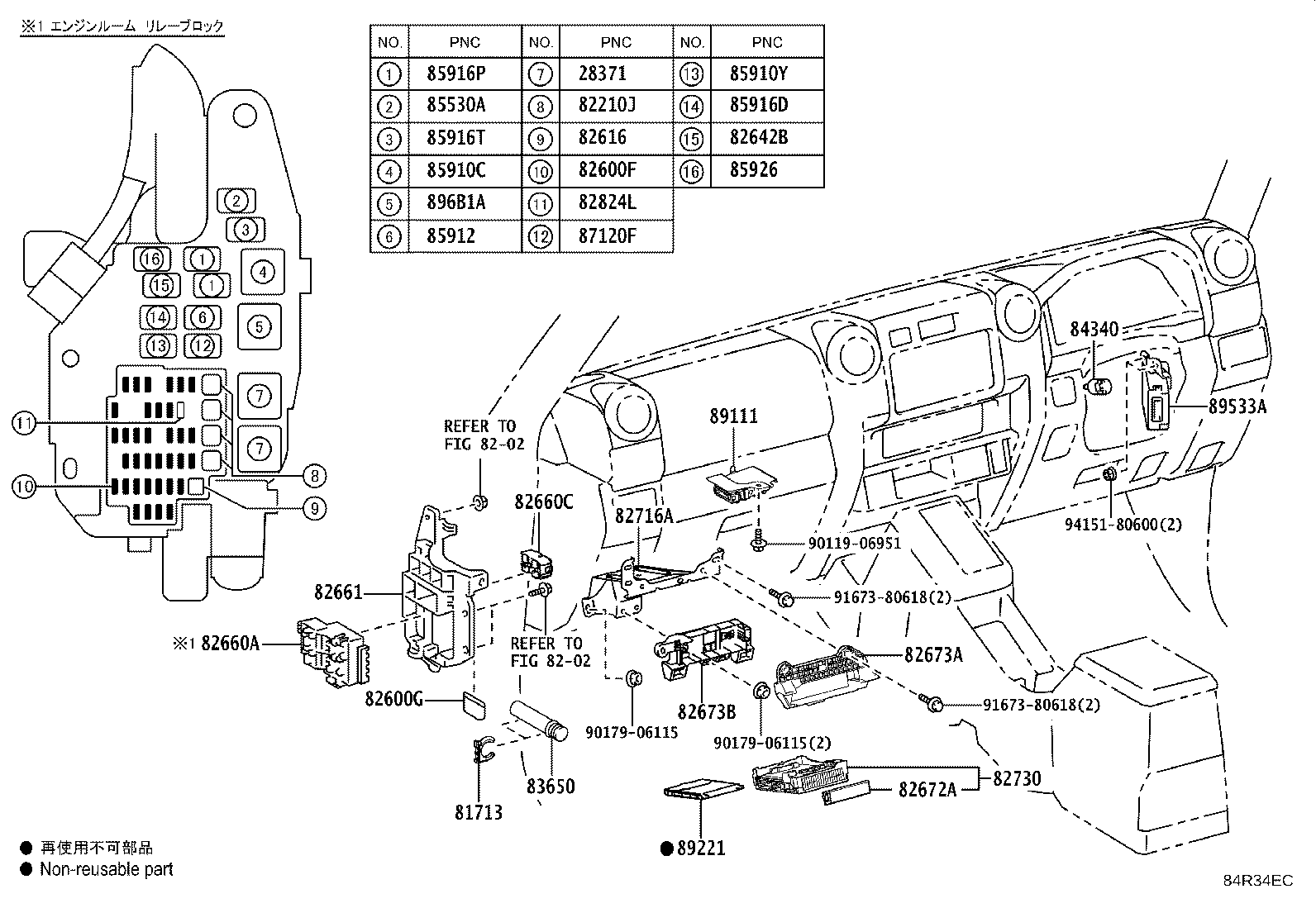

| 82730 | Block Assy, Instrument Panel Junction |
| 82741 | Block, Engine Room Relay |
| 82824L | Pin, Short |
| 83320 | Gage Assy, Fuel Sender |
| 83390 | Switch Assy, Vacuum Warning |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83650 | Fusee |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84152B | Bulb (FOR HEADLAMP LEVELING SWITCH) |
| 84153 | Switch, Auto High Beam |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84210 | Switch Assy, Back-up Lamp |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84222D | Switch, Transfer Indicator, NO.4 |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |

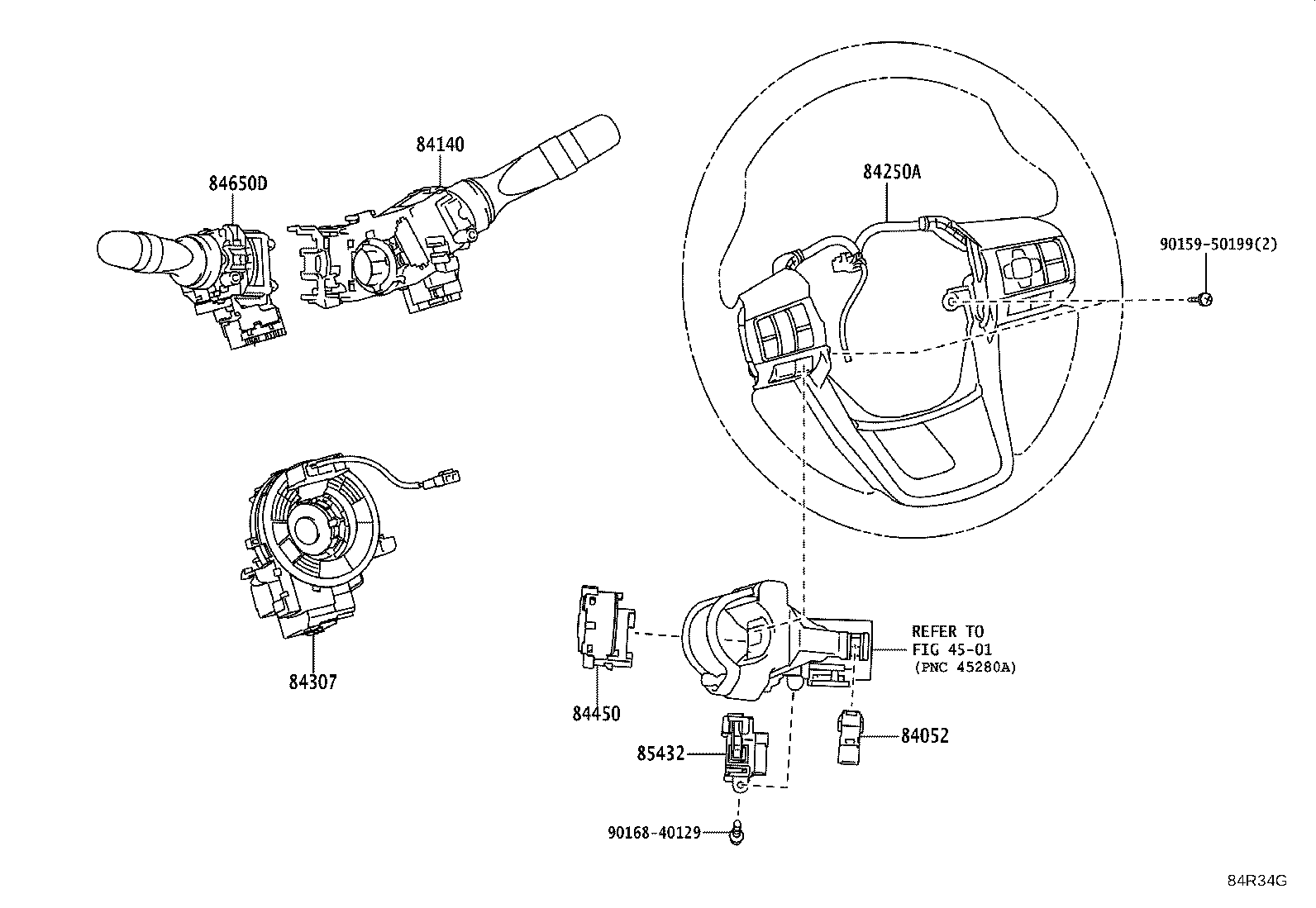

| 84250A | Switch Assy, Steering Pad |

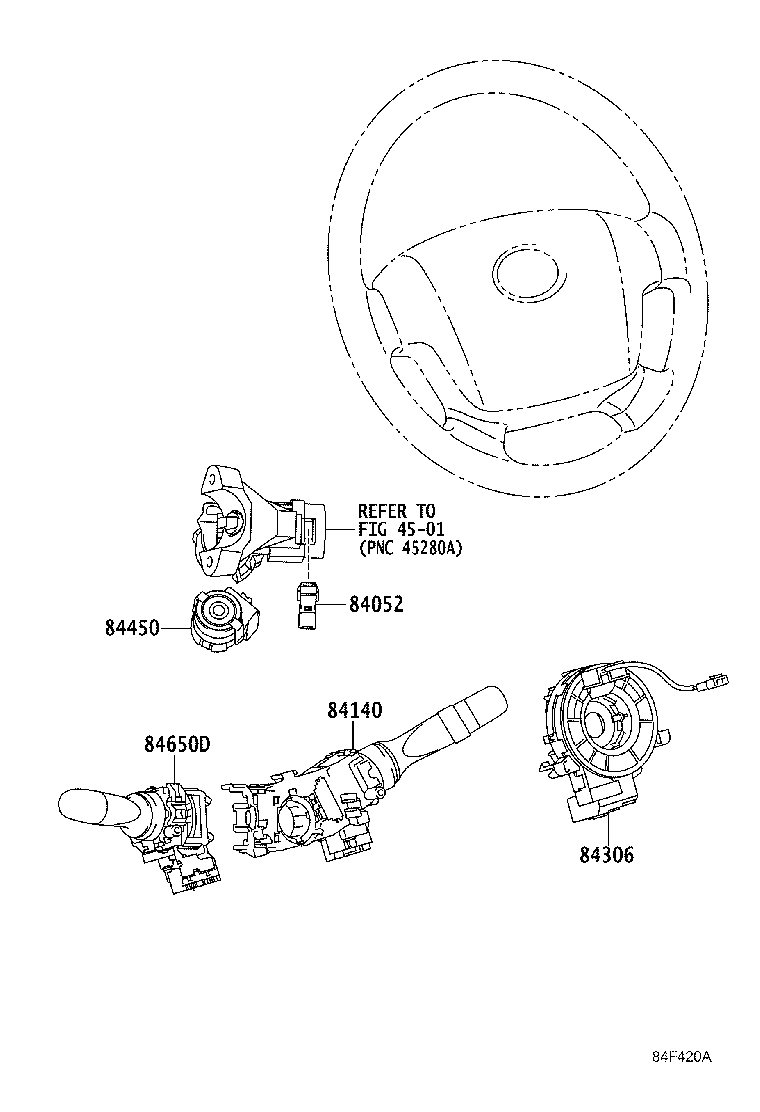

| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84520 | Switch Assy, Clutch Start |

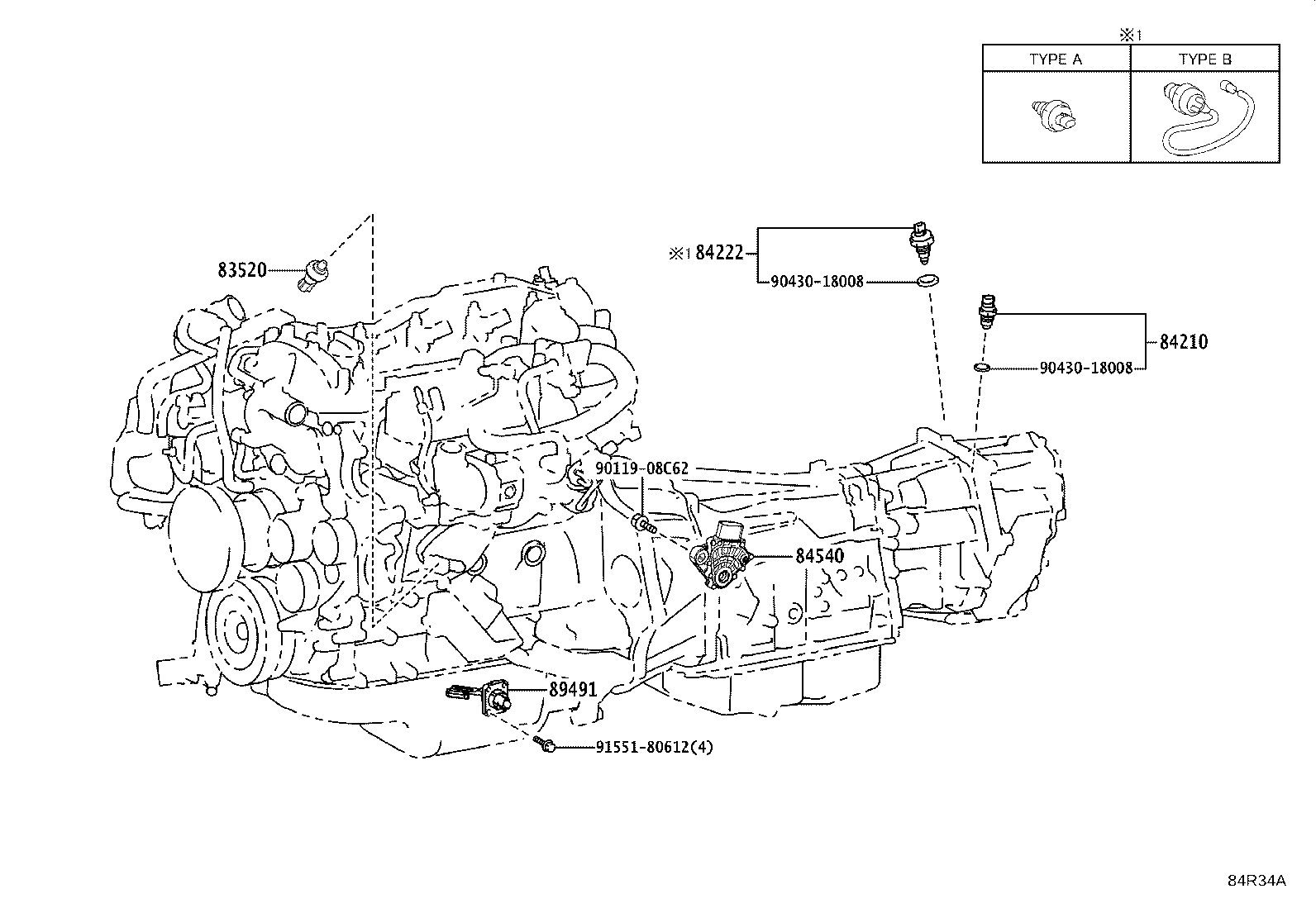

| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84660E | Knob, Cooler Switch |
| 84720J | Switch Assy, Pattern Select |
| 84721C | Switch, Pattern Select |
| 84725 | Switch, Center Differential Lock |
| 84730 | Switch Assy, Heater Blower |
| 84731 | Knob, Heater Blower Switch |
| 84732A | Switch, Rear Heater Blower |
| 84760 | Switch Assy, Antenna |
| 84760B | Bulb, Antenna Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84870D | Switch Assy, Outer Mirror, NO.2 |
| 84931B | Switch, Door Control |
| 84970 | Switch Assy, Combination |
| 84988H | Switch, Downhill Assist Control |
| 84988L | Switch, Vsc Off |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530A | Relay, Power Outlet Socket |
| 85532B | Socket, Usb Charger |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85910Y | Relay, Rear Heater |
| 85912 | Relay, Defogger |
| 85914A | Relay, Motor Antenna Control |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85916T | Relay, Spot Lamp |
| 85925D | Relay, Ptc Heater |
| 85925F | Relay, Ptc Heater NO.2 |
| 85925G | Relay, Ptc Heater NO.3 |
| 85926 | Relay, Headlamp Dimmer |
| 85940B | Relay Assy, Rear Wiper |
| 86530 | Relay Assy, Horn |
| 87120F | Relay, Viscous Heater |
| 87481 | Switch Assy, Heater |
| 88630G | Relay Assy, Cooler |
| 88790F | Thermistor Assy |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |

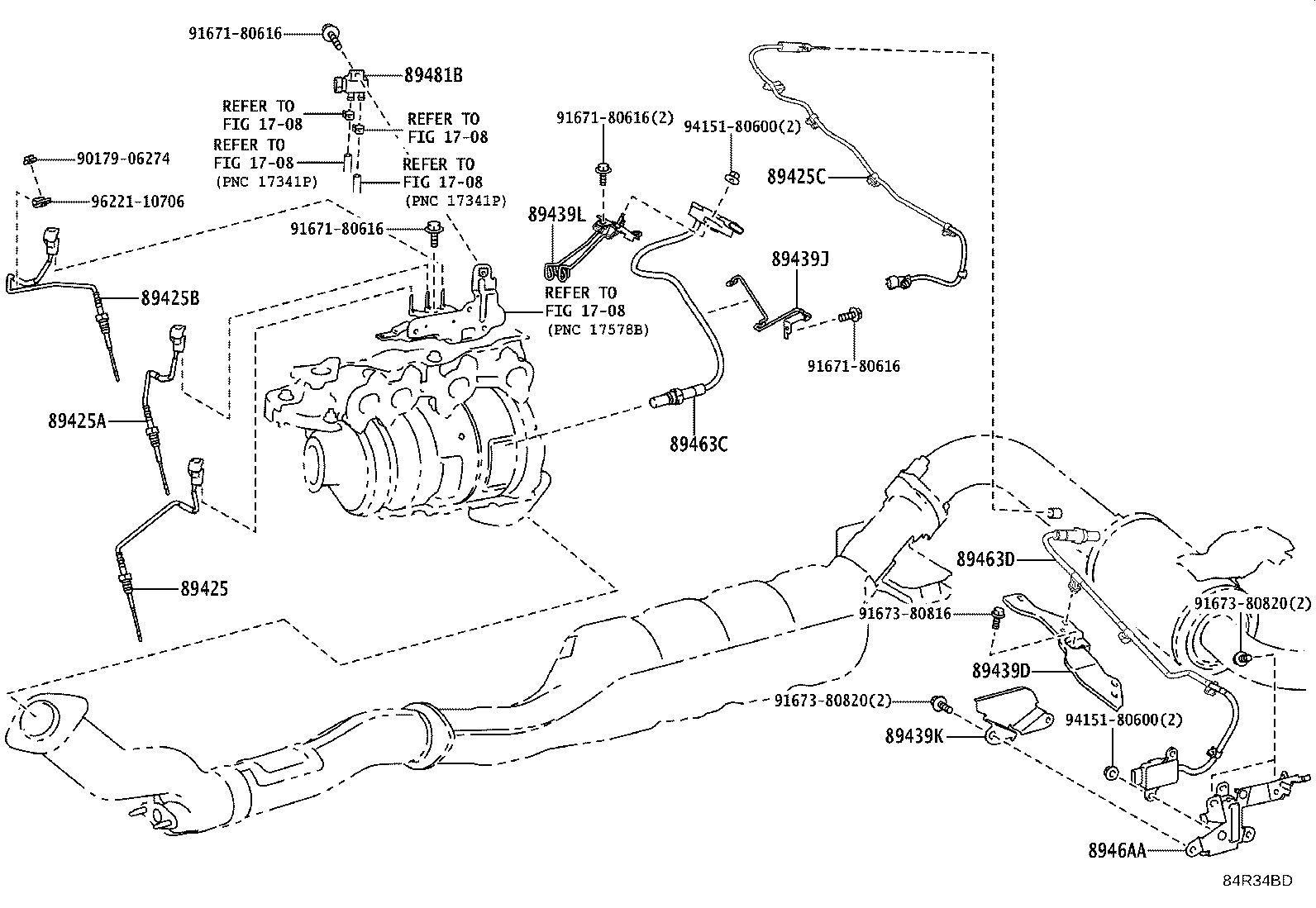

| 89425 | Sensor, Exhaust Gas Temperature |
| 89425A | Sensor, Exhaust Gas Temperature, NO.2 |
| 89425B | Sensor, Exhaust Gas Temperature, NO.3 |
| 89425C | Sensor, Exhaust Gas Temperature, NO.4 |
| 89439D | Bracket, Sensor, NO.1 |
| 89439J | Bracket, Sensor, NO.2 |
| 89439K | Bracket, Sensor, NO.3 |
| 89439L | Bracket, Sensor, NO.4 |
| 89463C | Sensor, Nitrogen Oxides, NO.1 |
| 89463D | Sensor, Nitrogen Oxides, NO.2 |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 8946AA | Bracket, Exhaust Sensor Clamp, NO.2 |
| 89481B | Sensor, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89533A | Computer, 4 Wheel Drive Control, NO.2 |
| 89615 | Sensor, Knock Control |
| 896B1A | Relay, Dcu Main |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
