Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

3 part groups · 2 illustrations

Illustrations

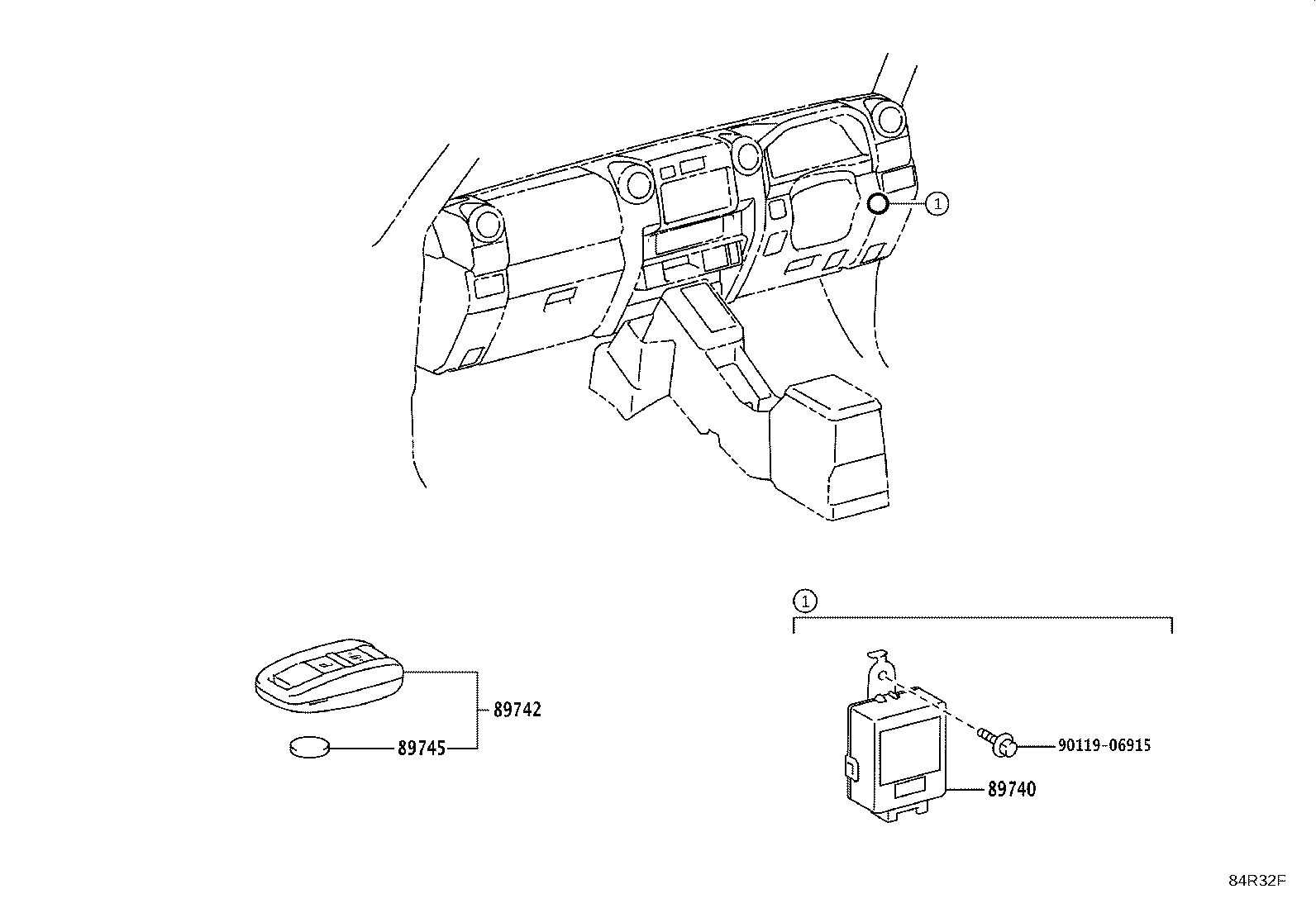

Figure 84F412 84F412 2014-08 → 2015-07 Figure 84R32F 84R32F 2023-11 → —

Part groups

PNCDescription
89740 Computer Assy, Door Control W/Receiver
89742 Transmitter, Door Control
89745 Battery, Transmitter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
