Air Bag

5 part groups · 2 illustrations

Illustrations

Figure 84F413A

84F413A 2014-08 → 2015-07

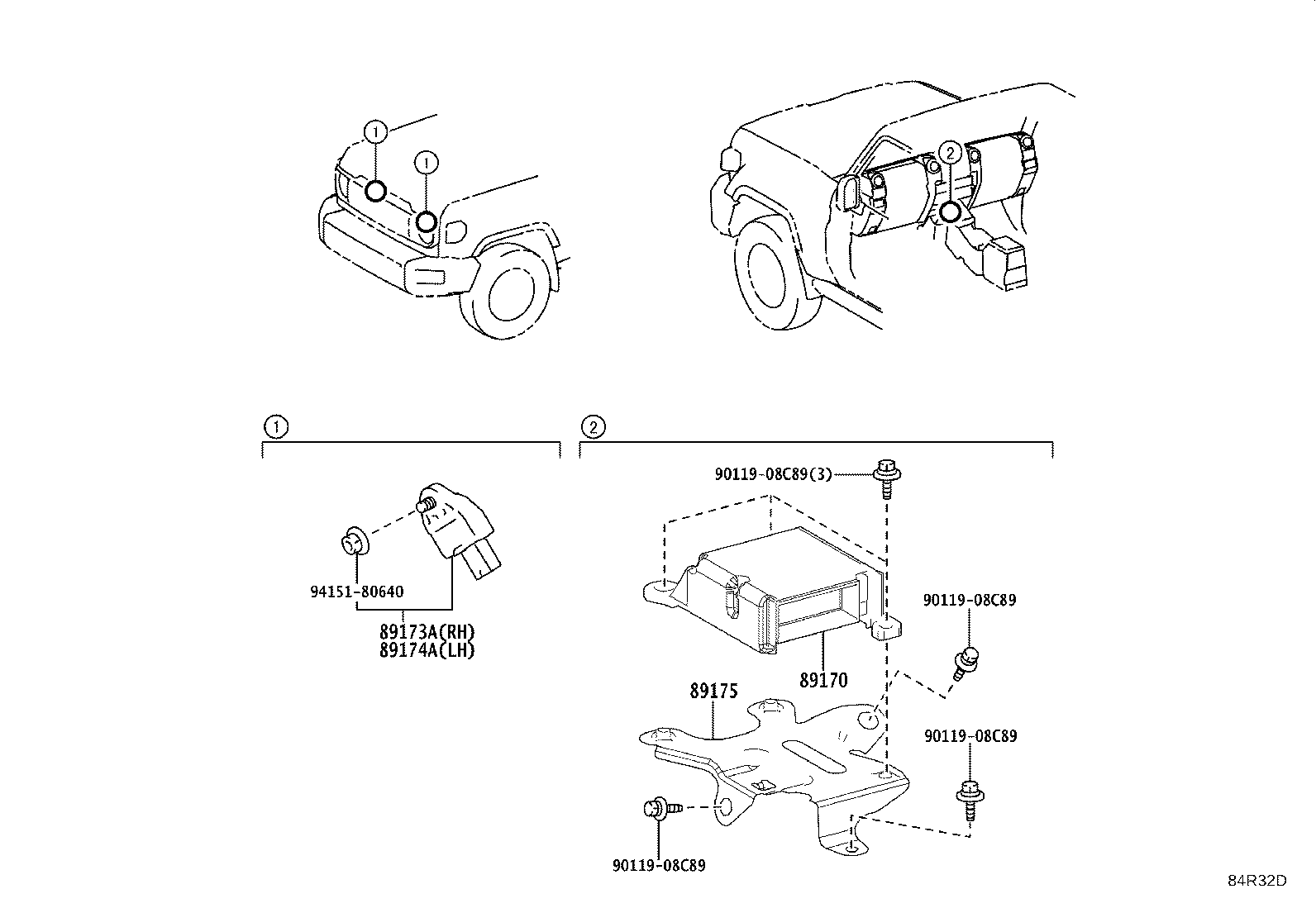

Figure 84R32D

84R32D 2023-11 → —

Part groups

PNC	Description
89170	Sensor Assy, Airbag
89173A	Sensor, Airbag, Front RH
89174A	Sensor, Airbag, Front LH
89175	Bracket, Airbag Sensor
89179A	Cover, Airbag Sensor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
