Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

19 part groups · 2 illustrations

Illustrations

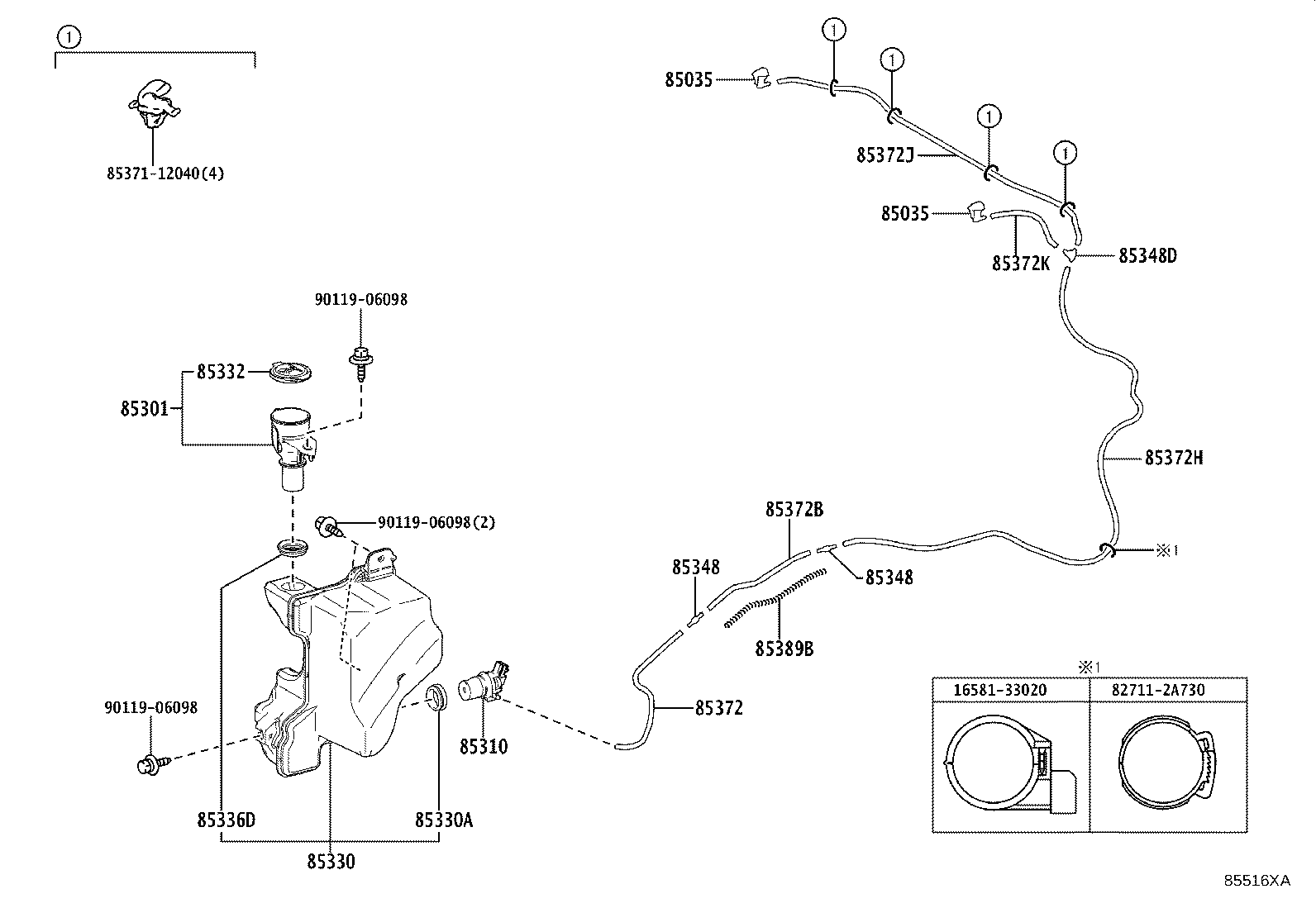

Figure 853262 853262 2014-08 → 2015-07 Figure 85516XA 85516XA 2023-11 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85301 Inlet Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85336D Packing, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85348G Joint, Windshield Washer Hose, NO.2
85348M Joint, Windshield Washer Hose, NO.3
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85372J Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85372K Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5
85389B Protector, Windshield Washer
85389D Spring(WASHER HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
