Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11
Rear Washer

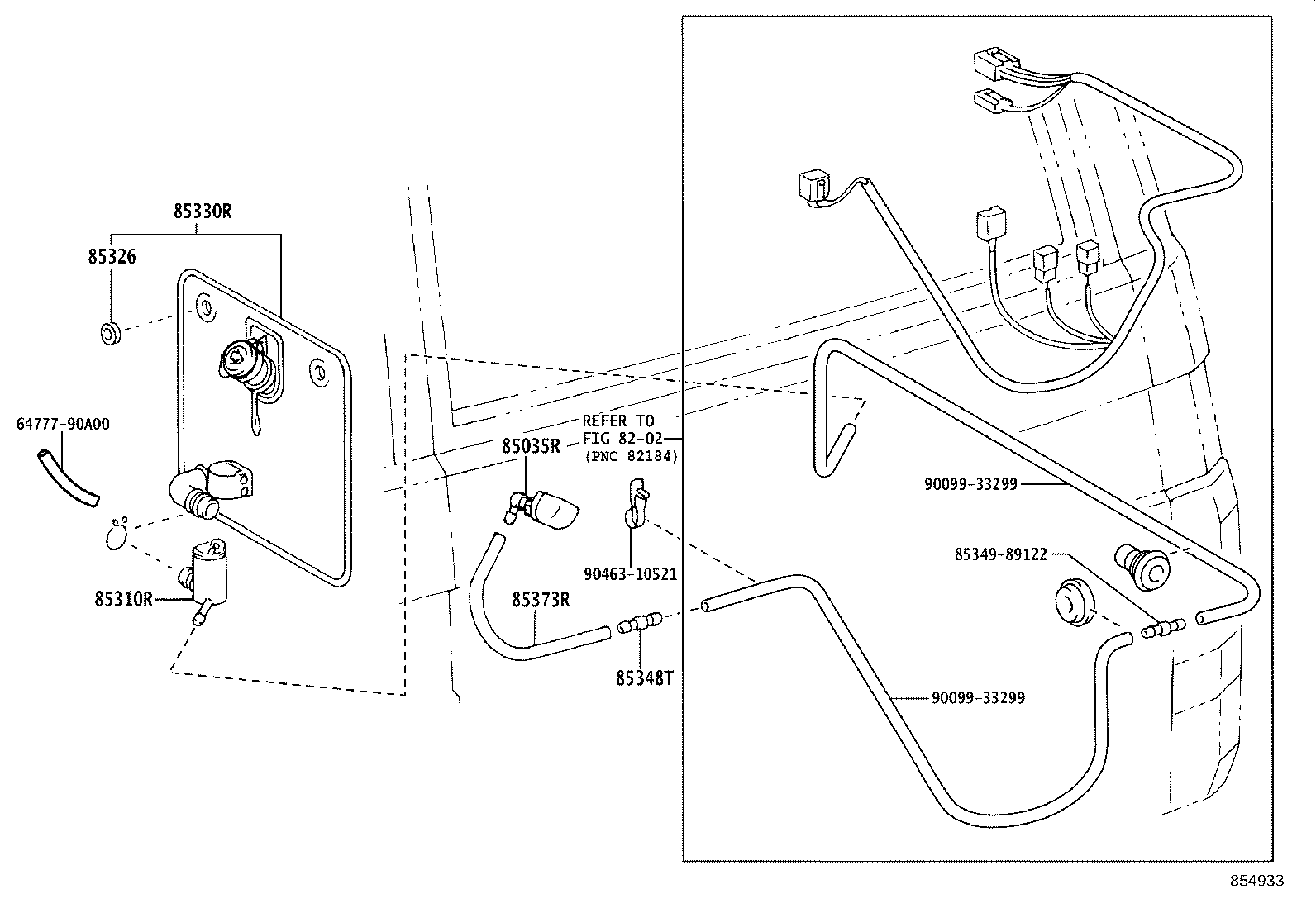

6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85035R | Nozzle Sub-assy, Rear Washer |
| 85310R | Motor Assy, Rear Washer |
| 85326 | Packing, Washer |
| 85330R | Jar Assy, Rear Washer |
| 85348T | Joint, Rear Washer Hose, NO.2 |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
