Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 3 illustrations

Illustrations

Figure 865867A

865867A 2014-08 → —

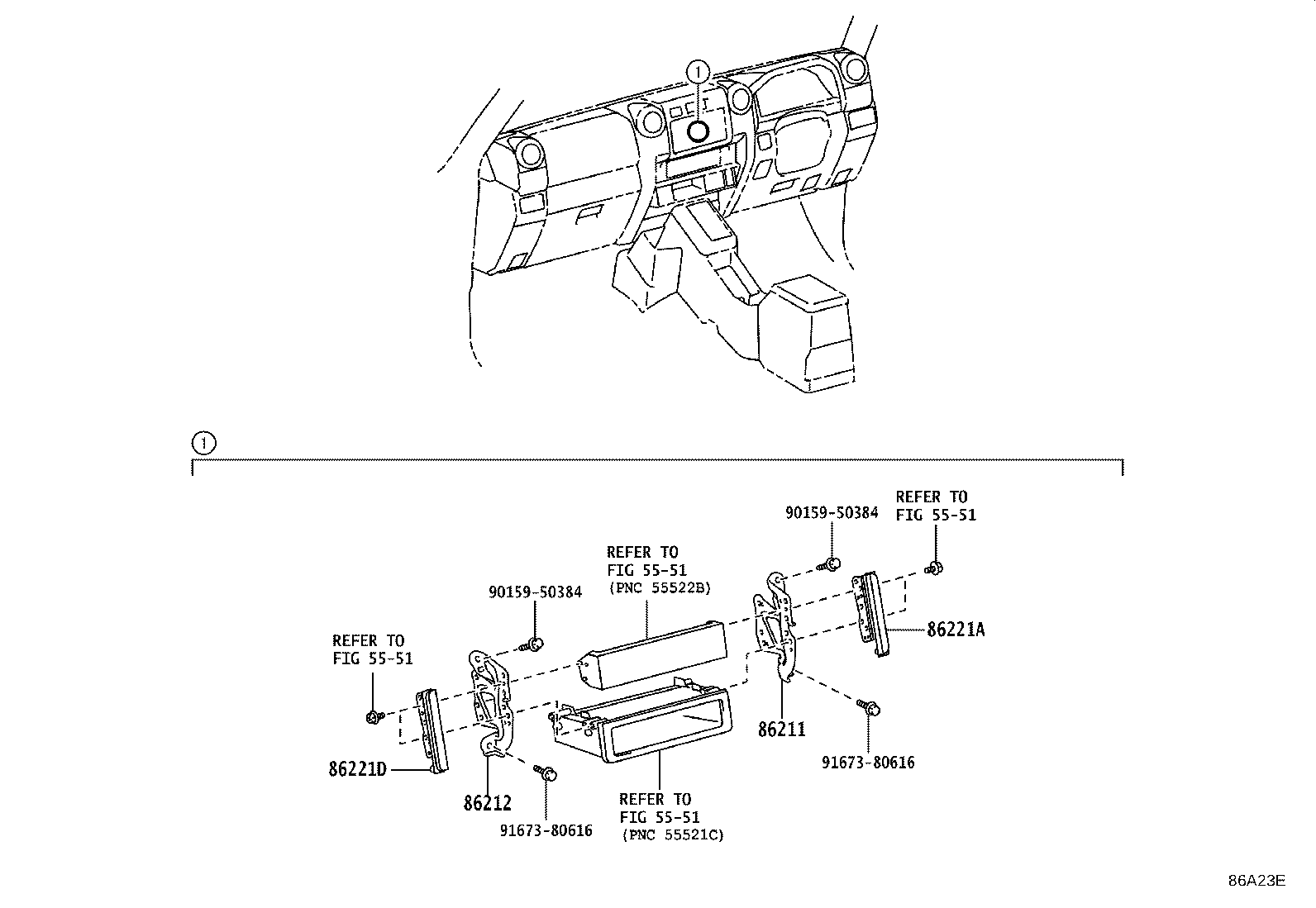

Figure 86A23E

86A23E 2023-09 → —

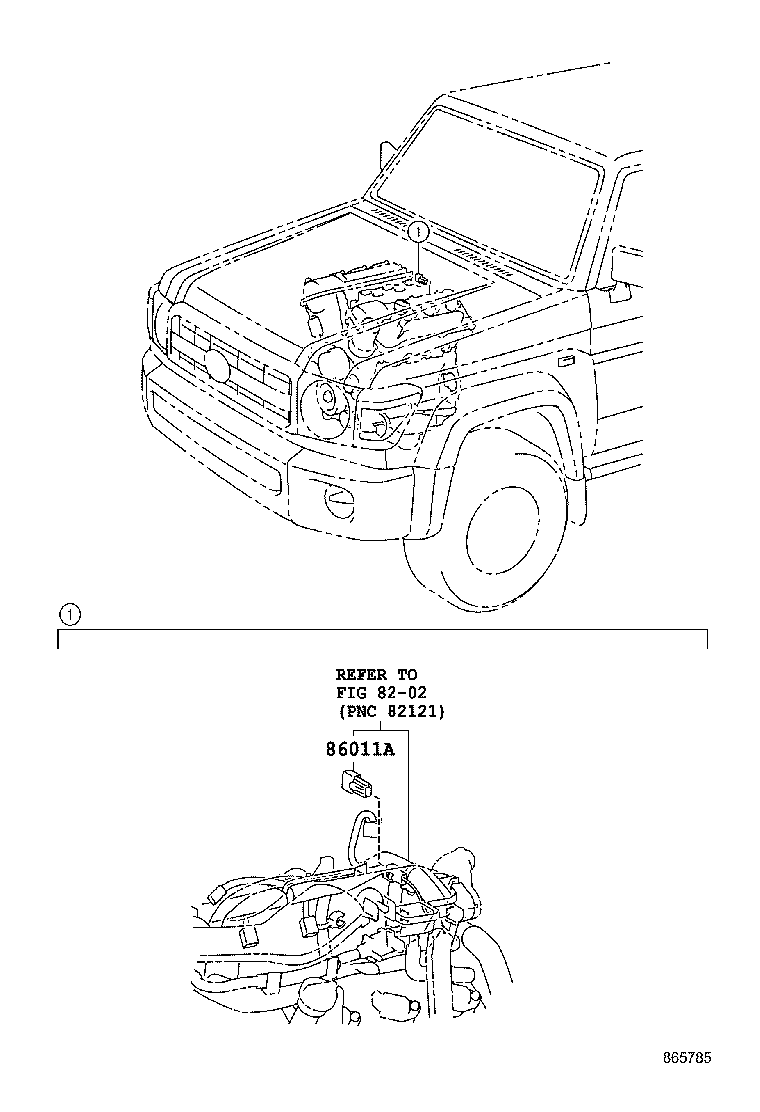

865785 2014-08 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2
86221A	Panel, Radio Receiver
86221D	Panel, Radio Receiver

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
