Toyota Land Cruiser
2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan
Supported model
Data version 2023-11
Mirror

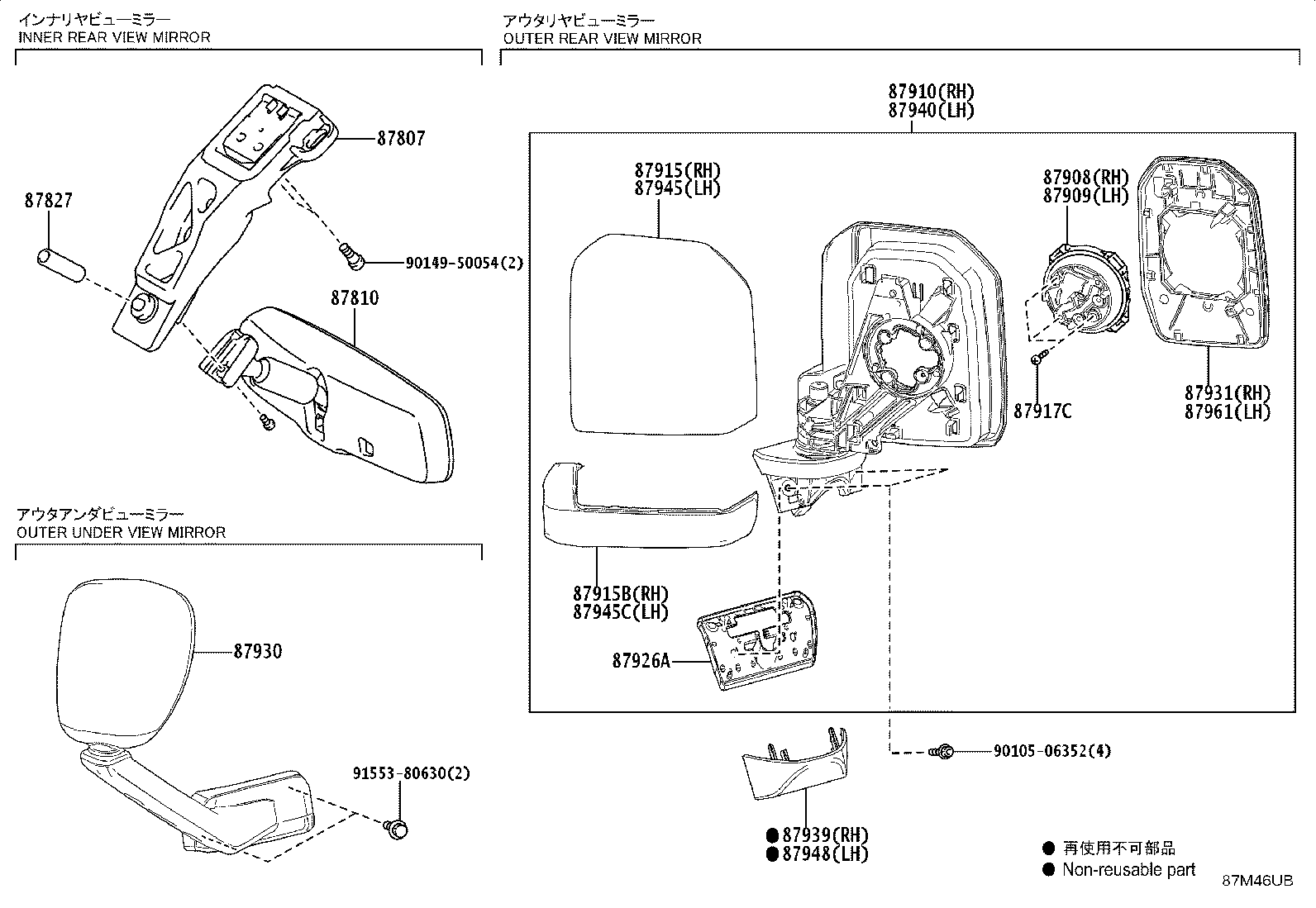

22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87807 | Stay Sub-assy, Inner Rear View Mirror |
| 87810 | Mirror Assy, Inner Rear View |
| 87816 | Spring, Inner Rear View Mirror |
| 87827 | Absorber, Inner Rear View Mirror |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87908 | Actuator Assy, Outer Mirror, RH |
| 87909 | Actuator Assy, Outer Mirror, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87915B | Cover, Outer Mirror, Lower RH |
| 87917B | Mirror, Outer Rear View, RH |
| 87917C | Screw, Outer Mirror |
| 87926A | Packing, Outer Rear View Mirror |
| 87930 | Device Assy, Front Fender Side View, LH |
| 87931 | Outer Mirror, RH |
| 87939 | Cover, Outer Mirror Hole, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87945C | Cover, Outer Mirror, Lower LH |
| 87947B | Mirror, Outer Rear View, LH |
| 87948 | Cover, Outer Mirror Hole, LH |
| 87961 | Mirror Outer, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
