Heating & Air Conditioning - Water Piping

17 part groups · 3 illustrations

Illustrations

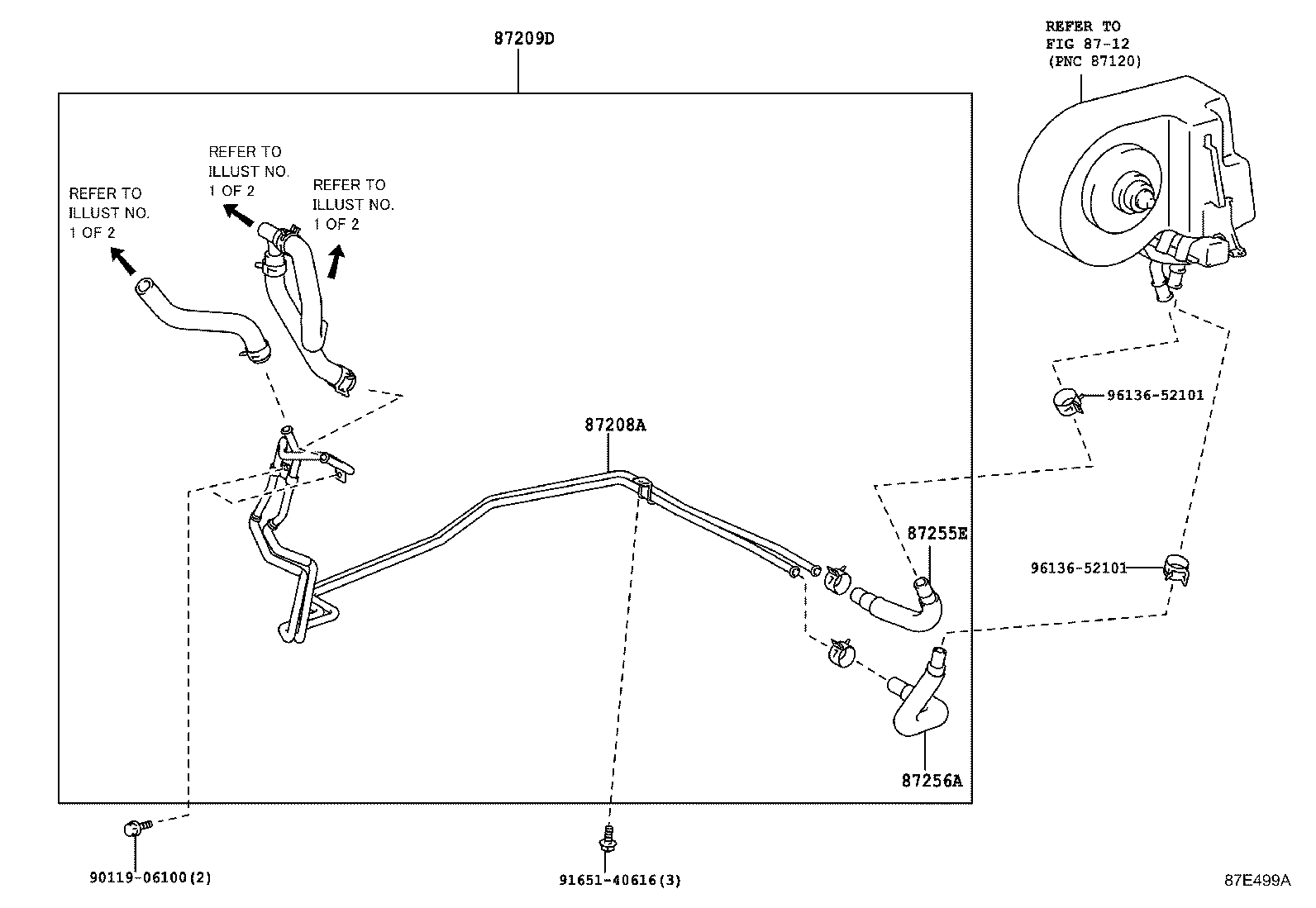

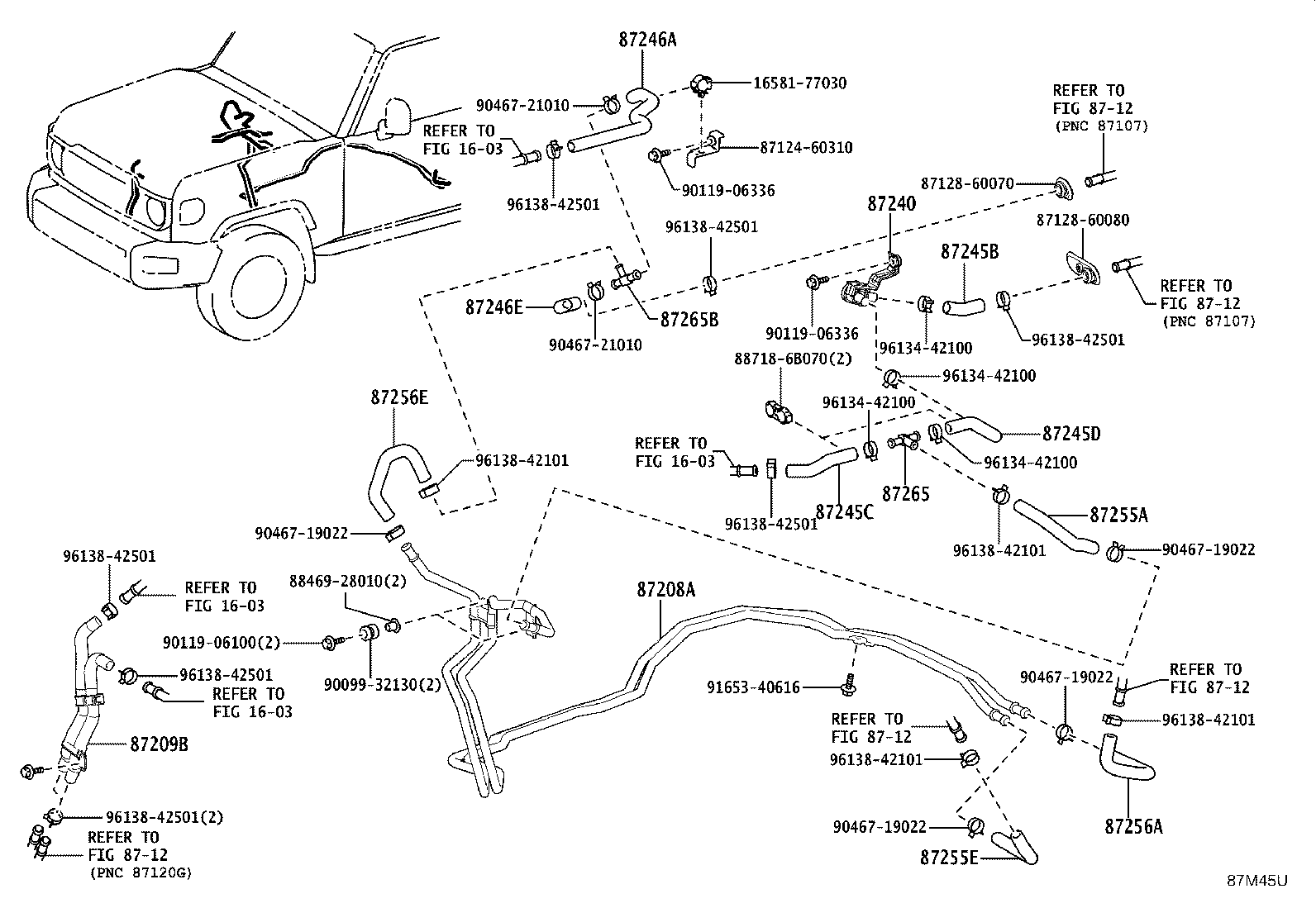

Figure 87A958A 87A958A 2014-08 → — Figure 87E499A 87E499A 2014-08 → — Figure 87M45U 87M45U 2023-11 → —

Part groups

PNCDescription
87208A Pipe Sub-assy, Heater Water, A
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87209D Hose Sub-assy, Water, D
87240 Valve Assy, Heater Water
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87250 Hose And Valve Assy
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87265 Connector, Heater Water Hose
87265B Connector, Heater Water Hose, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
