Toyota Land Cruiser

2014-08 → present · chassis GRJ7# · catalogue 781170 · Japan

Supported model Data version 2023-11

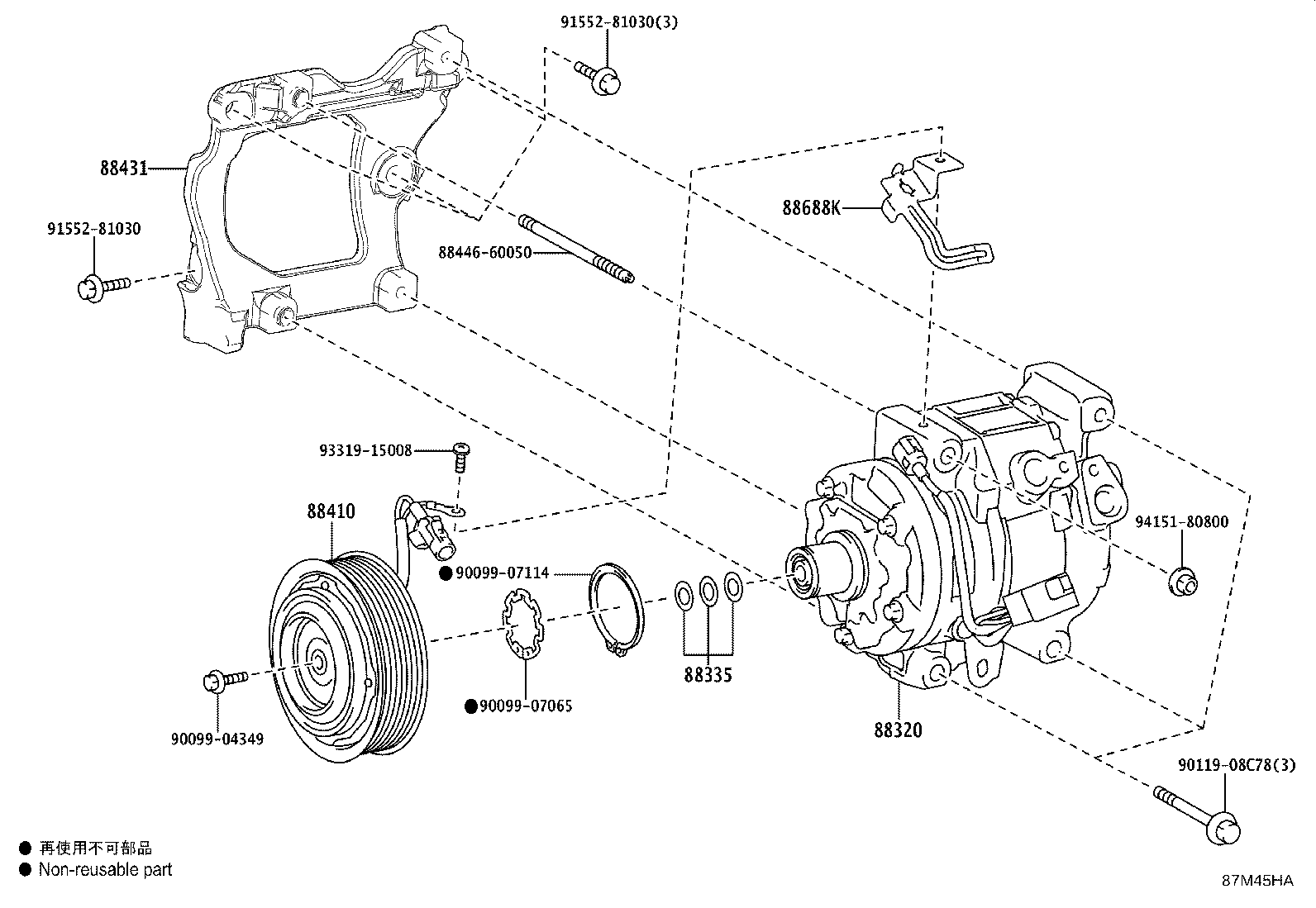

Heating & Air Conditioning - Compressor

5 part groups · 2 illustrations

PNC	Description
88320	Compressor Assy, Cooler
88335	Gasket Kit, Overhaul
88410	Clutch Assy, Magnet
88431	Bracket, Compressor Mounting, NO.1
88688K	Bracket, Cooler Compressor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
