Toyota Land Cruiser Prado
2017-08 → present · chassis GDJ15#,TRJ150 · catalogue 781180 · Japan
Supported model
Data version 2018-06
Cylinder Block

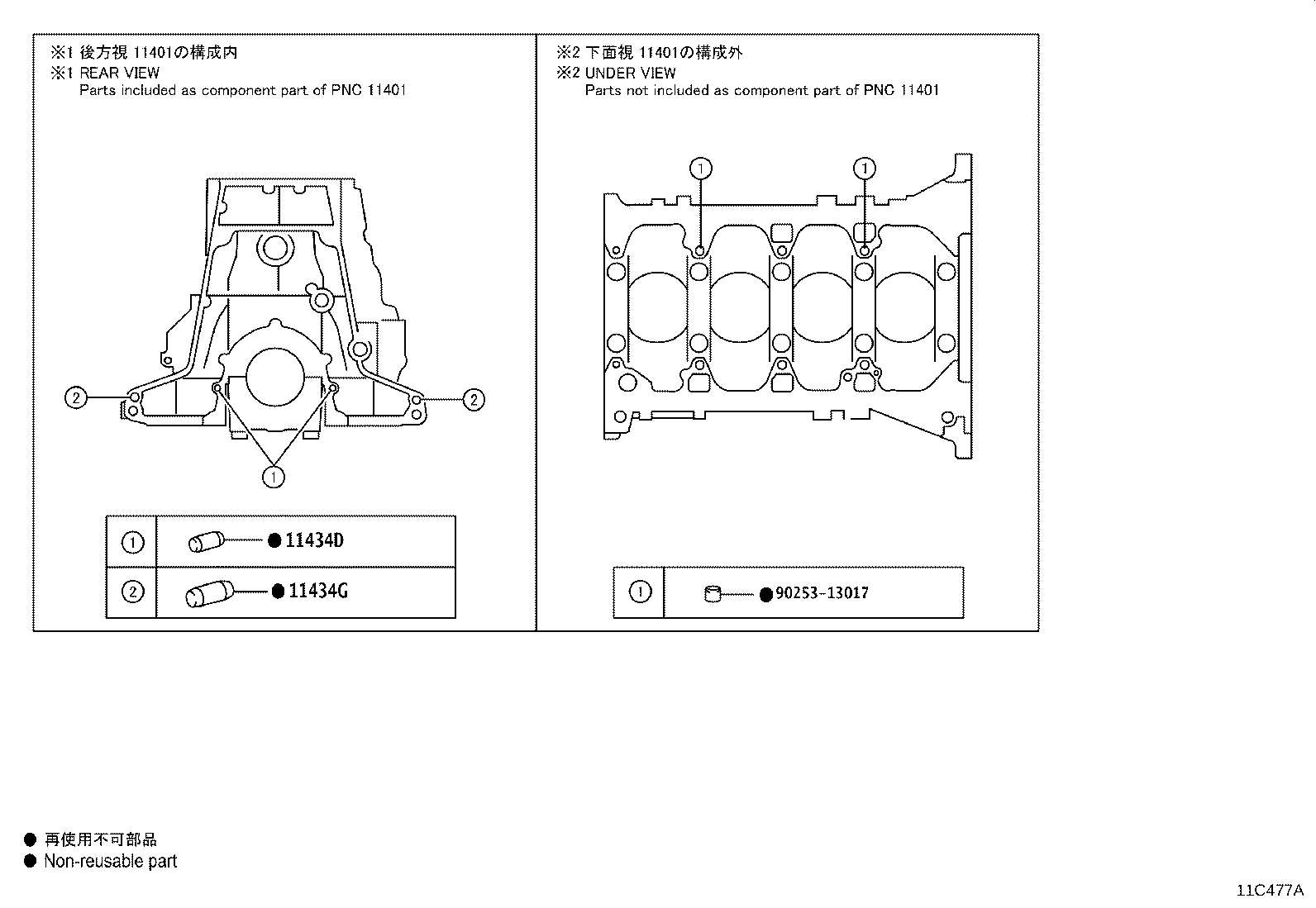

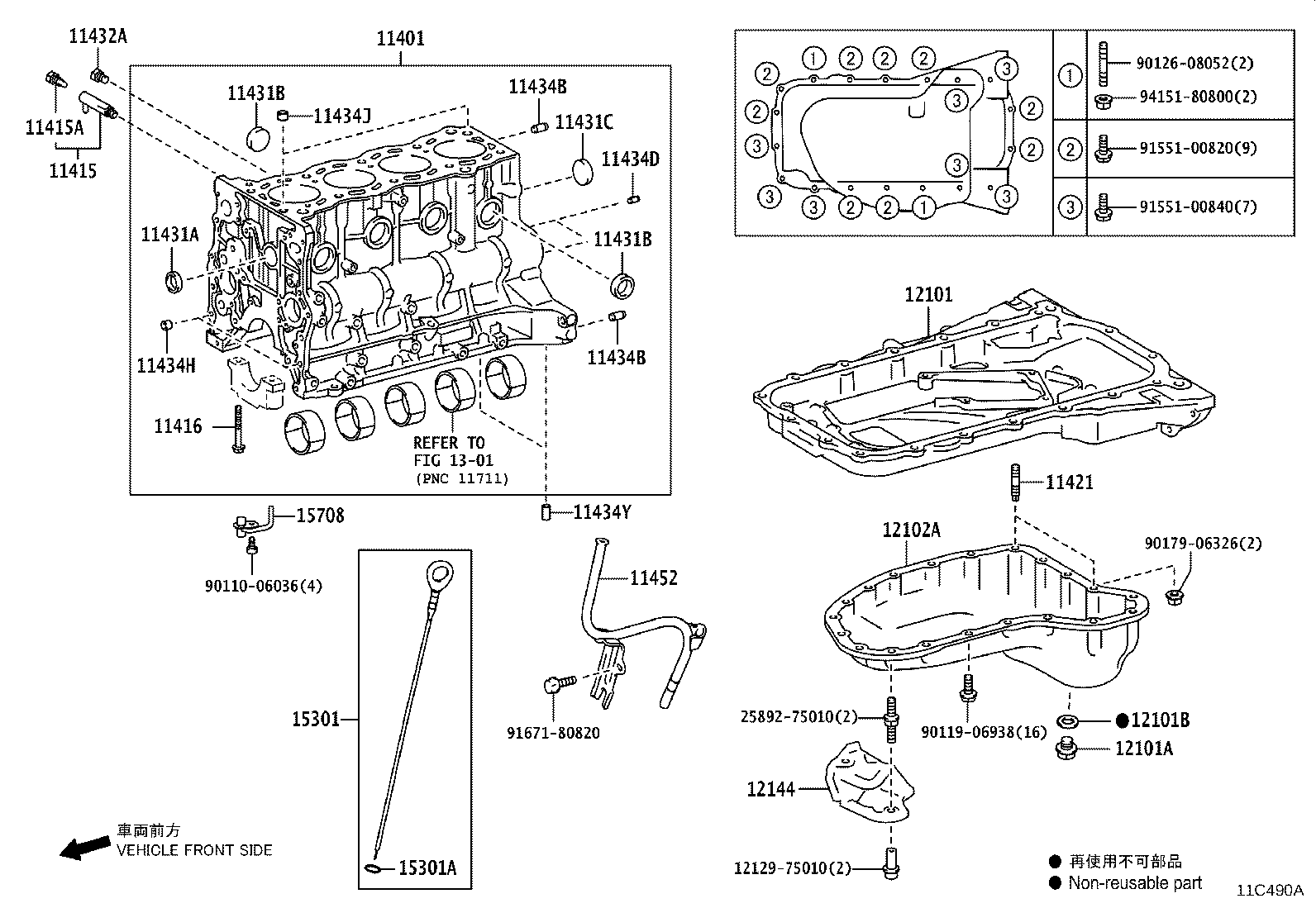

38 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11401 | Block Sub-assy, Cylinder |
| 11401G | Sensor, Crank Position |
| 11401V | O-ring, Crank Position Sensor |
| 11409 | Guide Sub-assy, Oil Level Gage |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11421 | Bolt, Stud(FOR OIL PAN) |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11431B | Plug, Tight, NO.2(FOR CYLINDER BLOCK) |
| 11431C | Plug, Tight, NO.3(FOR CYLINDER BLOCK) |
| 11432A | Plug, W/Head Taper Screw, NO.1 |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434G | Pin, Straight(FOR END PLATE) |
| 11434H | Pin, Ring (FOR TIMING BELT COVER SET) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11434T | Pin, Ring(FOR TIMING BELT IDLER BRACKET SET) |
| 11434Y | Pin, Straight(FOR OIL PAN) |
| 11452 | Guide, Oil Level Gage |
| 11991A | Plate, Balanceshaft Thrust, NO.1 |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12102A | Pan Sub-assy, Oil, NO.2 |
| 12144 | Silencer, Oil Pan Cover |
| 12156 | Insulator, Oil Pan |
| 12581A | Insulator, Cylinder Block, NO.1 |
| 12583A | Insulator, Cylinder Block, NO.3 |
| 12585 | Insulator, Cylinder Brock, NO.5 |
| 13603B | Gear Sub-assy, Balanceshaft |
| 13620B | Balancer Assy, Engine |
| 15301 | Gage Sub-assy, Oil Level |
| 15301A | Ring, O(FOR OIL LEVEL GAGE) |
| 15367 | Bracket, Oil Level Sensor |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
| 27148C | Wire, Connecting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
