Toyota Land Cruiser Prado
2017-08 → present · chassis GDJ15#,TRJ150 · catalogue 781180 · Japan
Supported model
Data version 2018-06

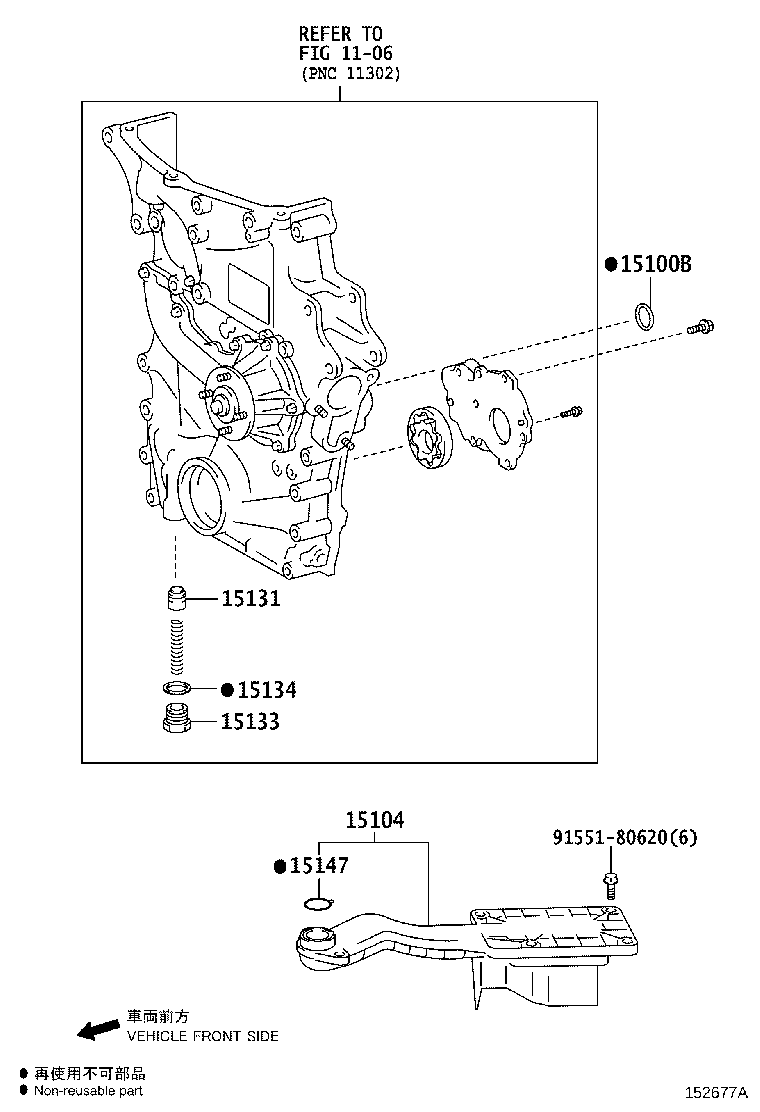

Engine Oil Pump
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15012 | Cover Sub-assy, Oil Pump |
| 15100B | Ring, O(FOR OIL PUMP) |
| 15104 | Strainer Sub-assy, Oil |
| 15131 | Valve, Oil Pump Relief |
| 15133 | Plug, Oil Pump Relief Valve |
| 15134 | Gasket, Oil Pump Relief Valve |
| 15147 | Gasket, Oil Strainer |
| 15149 | Gasket, Oil Strainer Flange |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
