Toyota Land Cruiser Prado

2017-08 → present · chassis GDJ15#,TRJ150 · catalogue 781180 · Japan

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

17 part groups · 3 illustrations

Illustrations

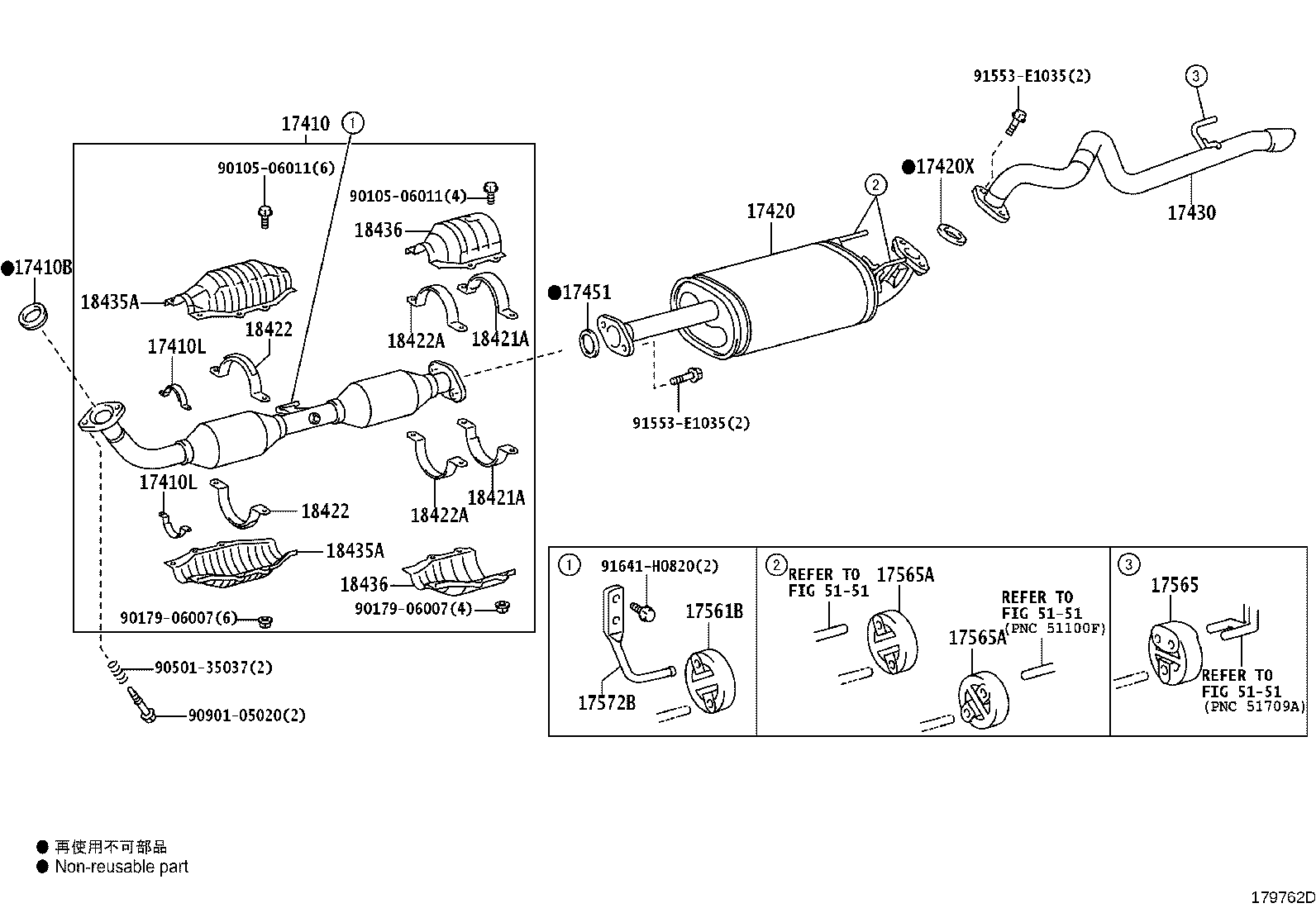

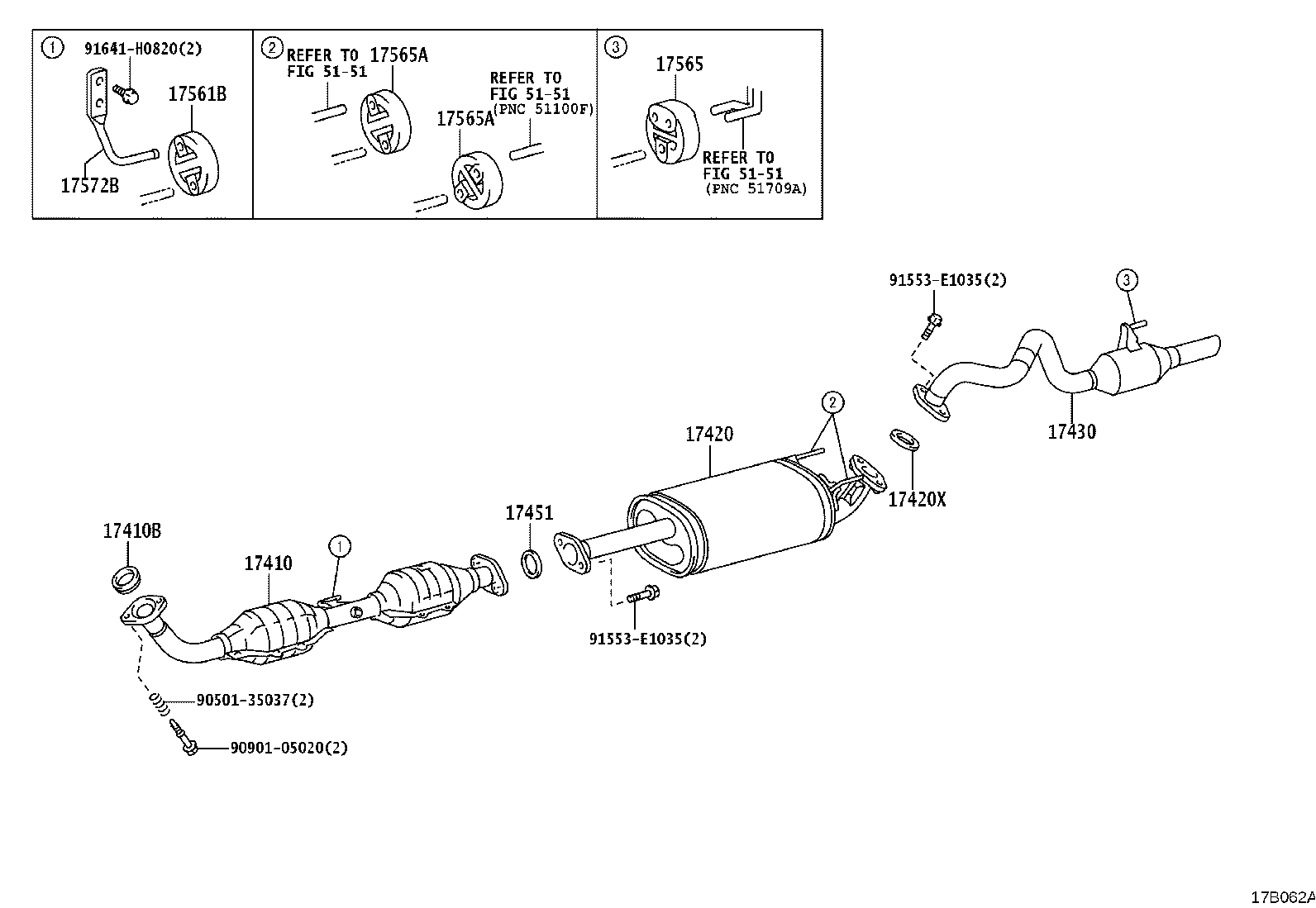

Figure 179761C 179761C 2017-08 → — Figure 179762D 179762D 2017-08 → 2020-08 Figure 17B062A 17B062A 2020-08 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17410L Stay, Exhaust Pipe Protector (FOR FRONT)
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17561B Support, Exhaust Pipe, NO.1
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17572B Bracket, Exhaust Pipe Support, NO.2
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
18421A Stay, Converter Protector, LH
18422 Stay, Converter Protector, NO.2
18422A Stay, Converter Protector, NO.3
18435A Protector, Monolithic Converter
18436 Protector, Monolithic Converter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
