Toyota Land Cruiser Prado
2017-08 → present · chassis GDJ15#,TRJ150 · catalogue 781180 · Japan
Supported model
Data version 2018-06

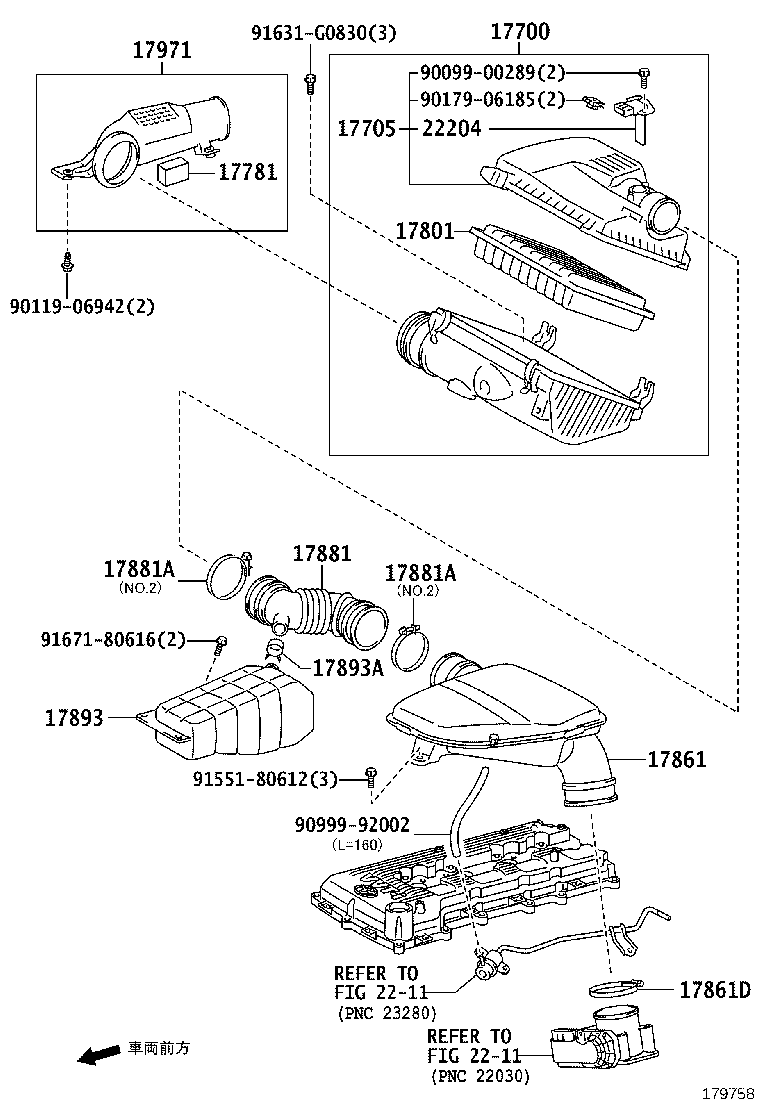

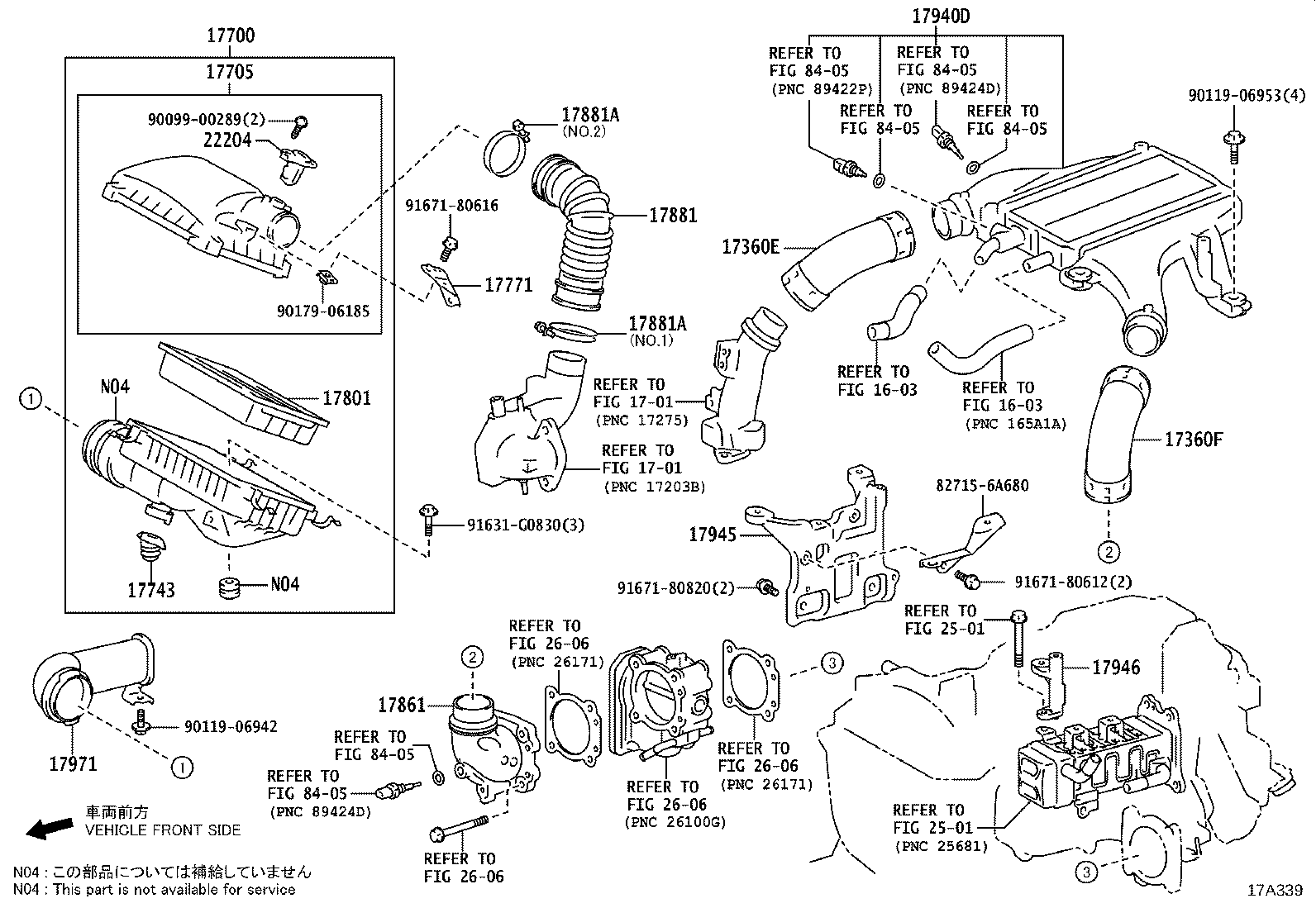

Air Cleaner
27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12209G | Pipe Sub-assy, Oil Return |
| 17341K | Hose, Air, NO.1(FOR INTERCOOLER) |
| 17341L | Clamp, Hose |
| 17342F | Hose, Air, NO.2(FOR INTERCOOLER) |
| 17342G | Clamp, Hose, NO.2(FOR INTERCOOLER) |
| 17360A | Tube Assy, Air |
| 17360E | Tube Assy, Air, NO.1 |
| 17360F | Tube Assy, Air, NO.2 |
| 17361J | Tube, Air, NO.1 |
| 17369 | Bracket, Air Tube Support |
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17743 | Valve, Dust Relief |
| 17771 | Bracket, Air Cleaner Inlet Duct |
| 17781 | Seal, Air Cleaner Inlet |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17861 | Connector, Intake Air |
| 17861D | Clamp(FOR INTAKE AIR CONNECTOR) |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17893 | Resonator, Intake Air |
| 17893A | Clamp, Hose |
| 17940D | Intercooler Assy |
| 17945 | Bracket, Intercooler Support |
| 17946 | Bracket, Intercooler Support, NO.2 |
| 17971 | Inlet, Cool Air, NO.1 |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
