Toyota Land Cruiser Prado

2017-08 → present · chassis GDJ15#,TRJ150 · catalogue 781180 · Japan

Supported model Data version 2018-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Venturi

3 part groups · 2 illustrations

Illustrations

Figure 260439F

260439F 2017-08 → 2018-06

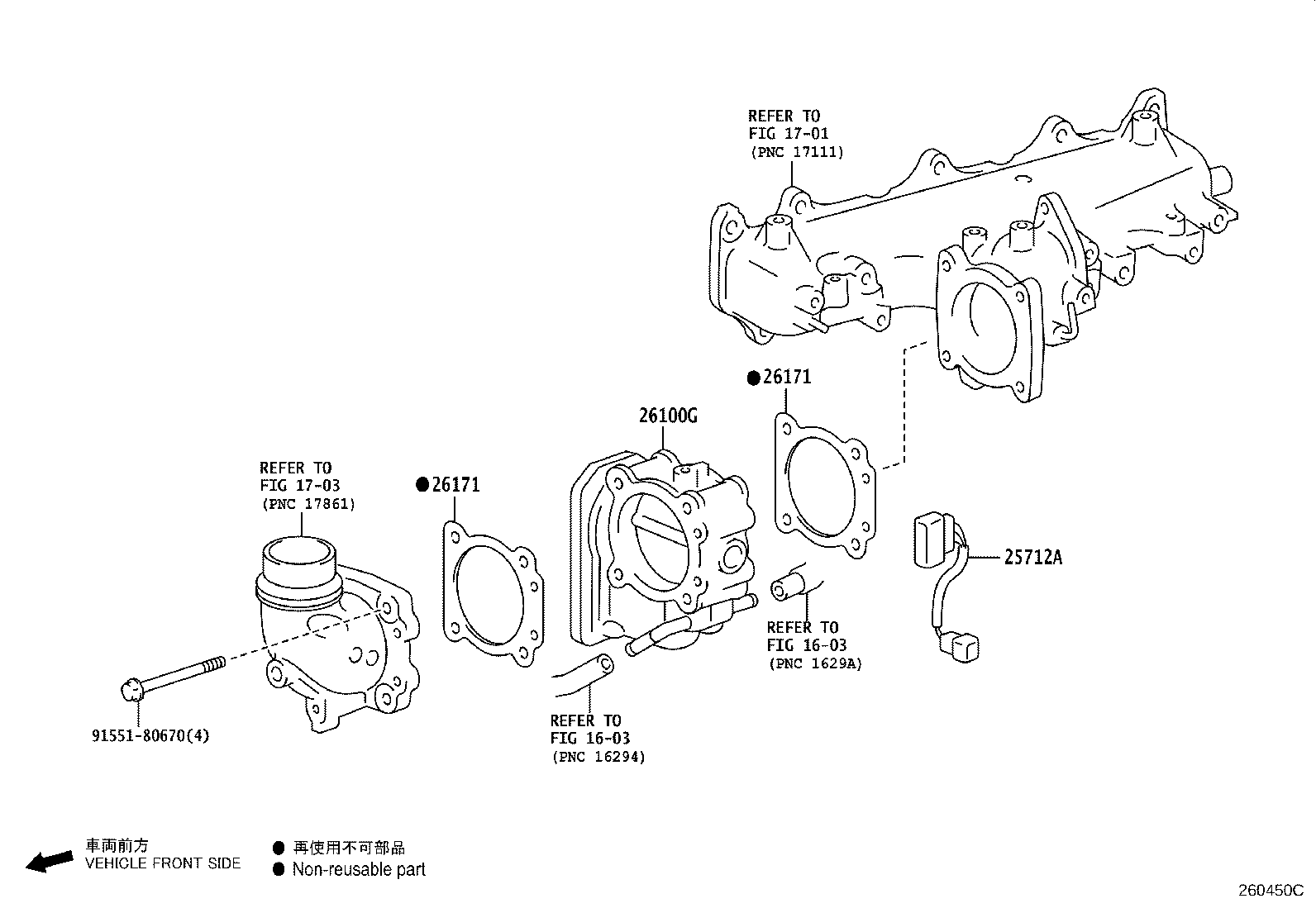

Figure 260450C

260450C 2018-06 → —

Part groups

PNC	Description
25712A	Wire, Emission Control Valve
26100G	Body Assy, Diesel Throttle
26171	Gasket, Venturi

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
